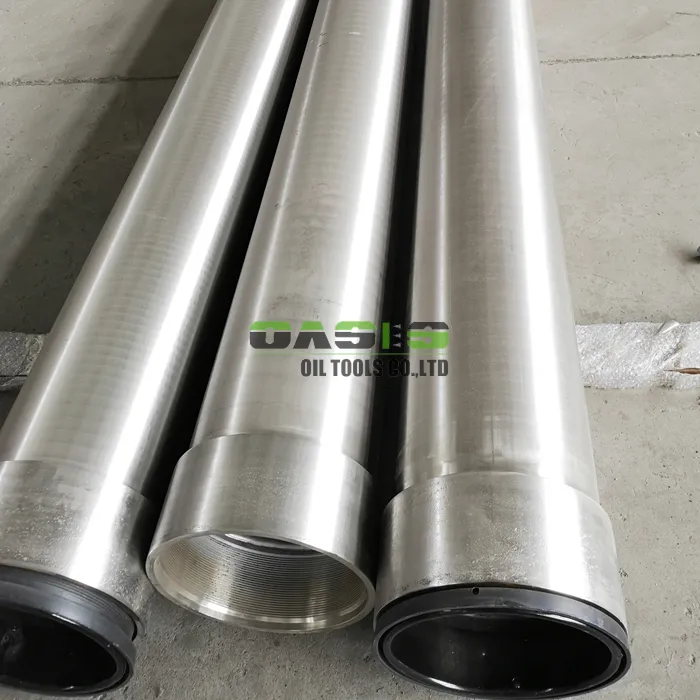

Both ends of the pipe shall be threaded to API 5B buttress threads. One side provided with a seamless coupling to ASTM A 451 grade 316L mounted hand tight with 3/8" taper in one foot (1/32" in one inch) to reduce the make up torque. The threads shall be treated by copper plating for antigalling by a qualified and nominated factory which will guarantee the make and break of the joint of ten times.

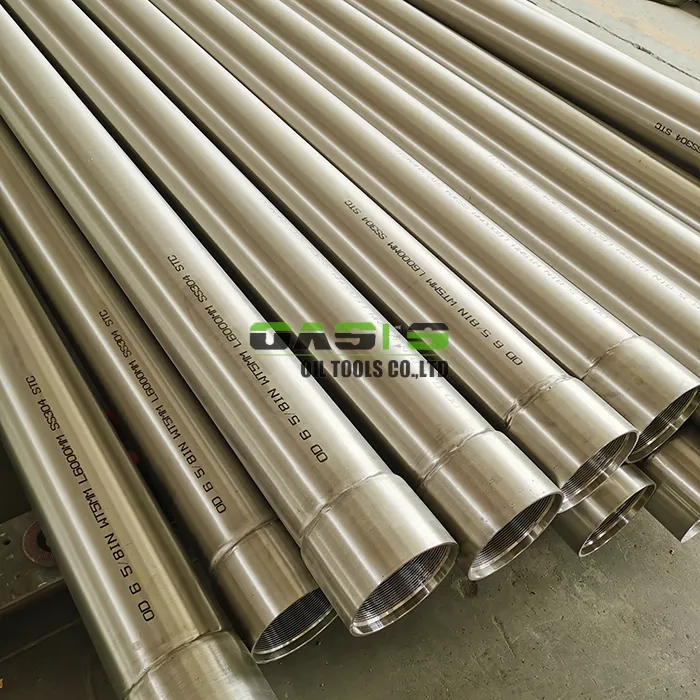

Type 316L seamless stainless steel riser pipe is the most common austenitic chromium-nickel stainless steel. Its properties provide corrosion resistance to a wide range of atmospheric, chemical, textile, petroleum, and food industry exposures.
ASTM, GB, JIS, DIN, EN, AISI
TP304, TP304L, TP316, TP316L, TP347, TP347H, TP321, TP321H, TP310, S31803/S32205, S32750, S32760

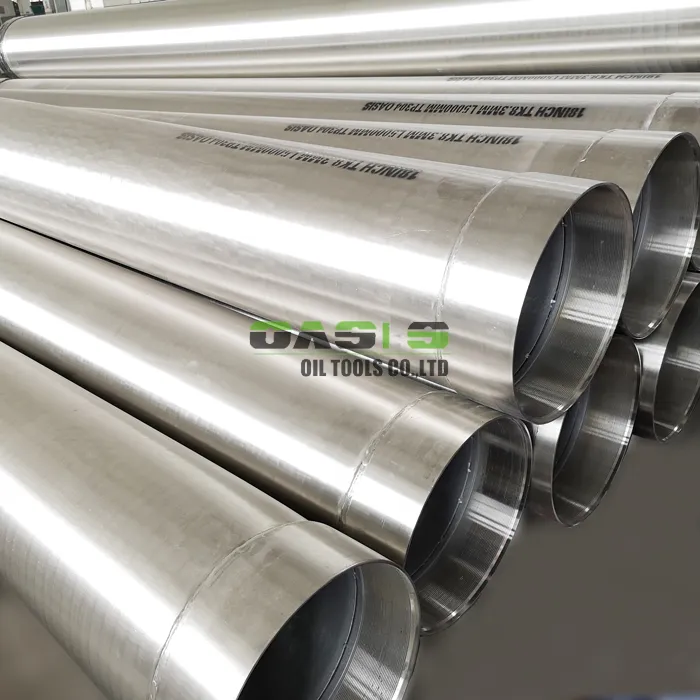

Seamless Pipe: 4mm - 914.4mm
Welded Pipe: 8mm - 3000mm

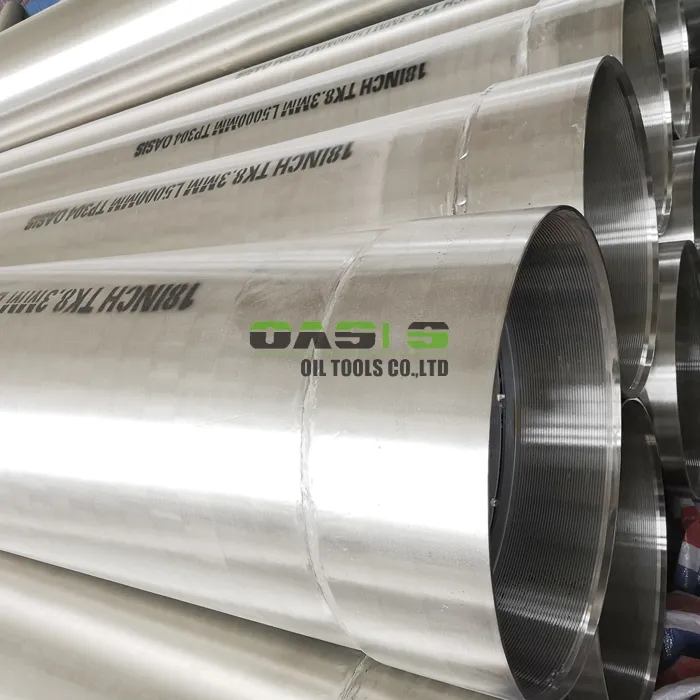

STC, BTC, LTC, Flange, Male-Female Threaded
Thickness: Seamless Pipe: 0.6mm - 60mm; Welded pipe: 0.5mm - 45mm
Length: 5.8m - 6.1m or as customers' request
Surface Finish: Satin/Hairline (180G, 320G, 400G), Mirror finish (400G, 500G, 600G, 800G)
Testing Methods: UT (Ultrasonic), ET (Eddy Current), HT (Hydrostatic), RT (Radiographic)
Applications: Petrochemical industry, chemical fertilizer, oil refining, oil and gas, food industry, pulp and paper, energy and environmental industries.
