Basic Specifications
Grade
200 Series / 300 Series
Certification
ISO, RoHS, AISI, ASTM, JIS
Surface
Bright, 2B, BA, 8K Mirror
Application
Mini Laser System Parts
Product Description
Material: 304 Stainless Steel
Thickness: 0.3-6mm
Width: 1000-2000mm
Length: According to customer's request
Surface Options: 2B, Hairline, No. 4, BA, 8K mirror finish
Mechanical & Chemical Properties
| Thickness(mm) |
Width(mm) |
Hardness(hv) |
Tensile Strength(MPa) |
Yield Strength(MPa) |
| 0.05-1.5 |
<500 |
>200 |
>650 |
>205 |
| Chemical Composition |
Ni |
Cr |
Mn |
C |
| Reference No. 304 |
8.00/10.5 |
18.00/20.00 |
≤2.0 |
≤0.08 |
Hardness Classification
| Item |
XRX-SUS304-S |
XRX-SUS304-1/4H |
XRX-SUS304-1/2H |
XRX-SUS304-3/4H |
XRX-SUS304-H |
| Hardness (HV) |
<200 |
150-190 |
250-300 |
310-360 |
370-410 |
| Hardness Code |
S |
1/4H |
1/2H |
3/4H |
H |
| Surface Finish |
2B, 2D, No. 3, DF, BA, 8K |

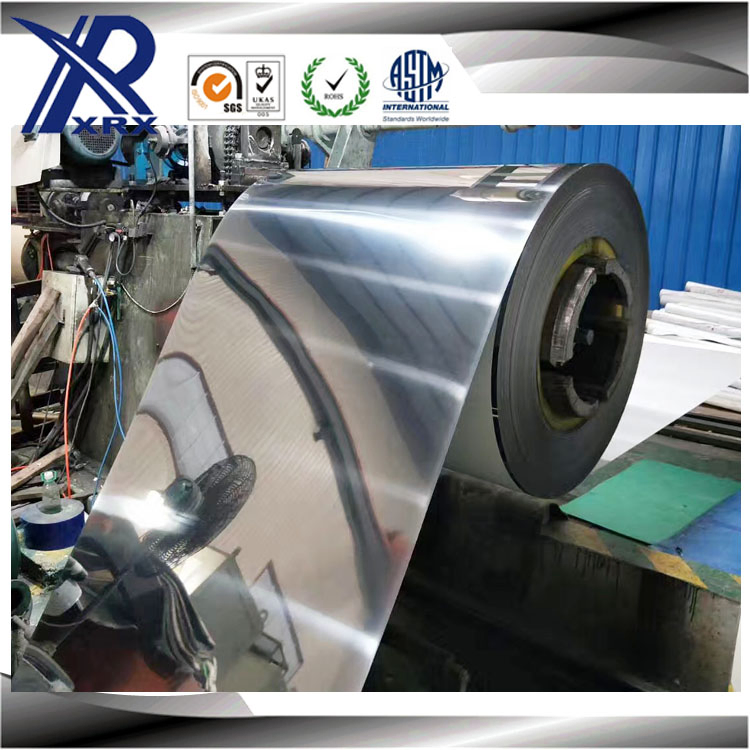

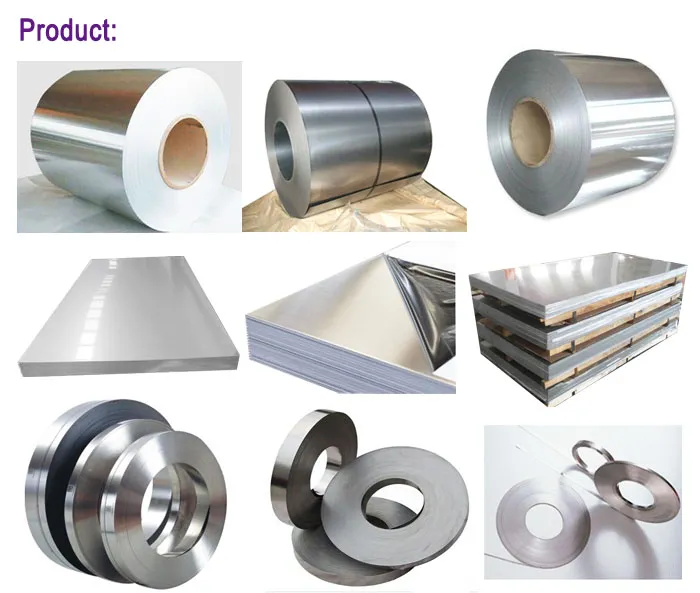

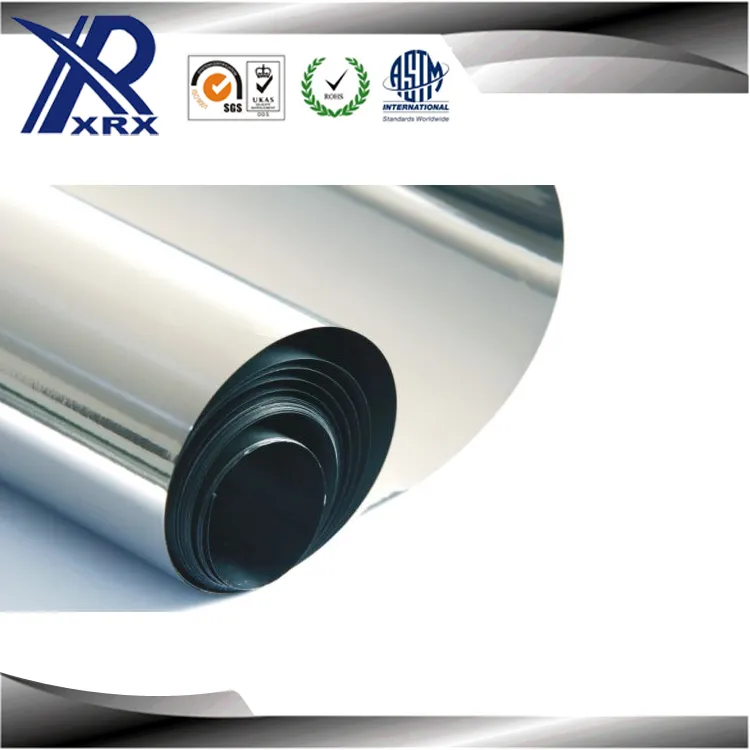

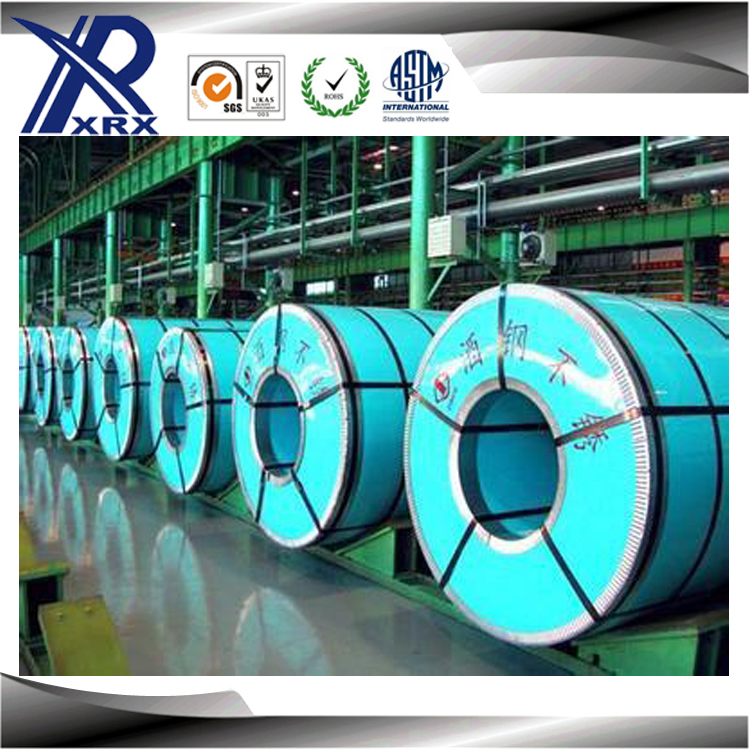

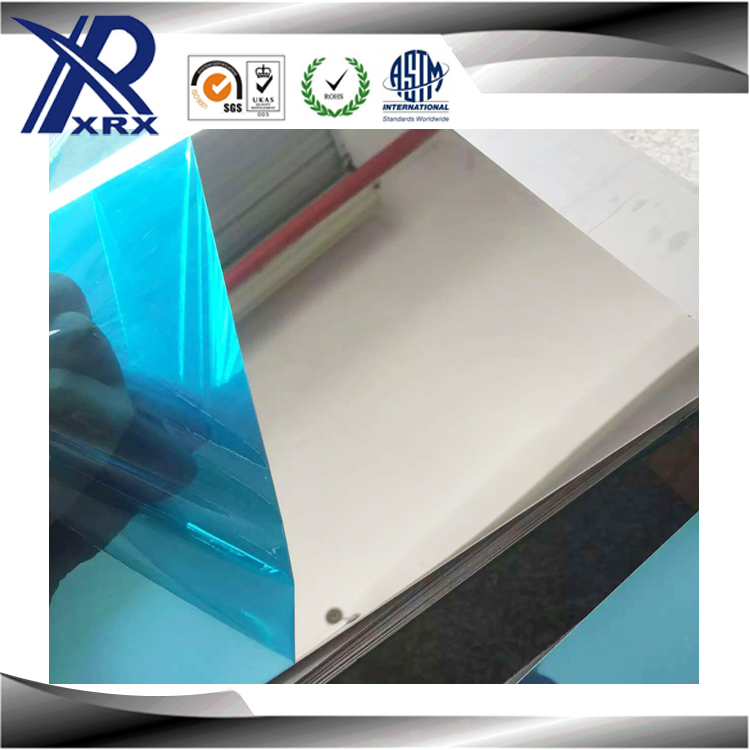

Product Showcase
Surface Finish Standards
| Surface Finished |
Characteristics |
Application |
| BA |
Bright heat treatment after cold rolling. |
Kitchen utensil, Kitchen ware, Architectural purpose. |
| 2B |
Heat treatment, pickling after cold rolling, followed by skin pass for smooth surface. |
General application, medical instruments, Tableware. |

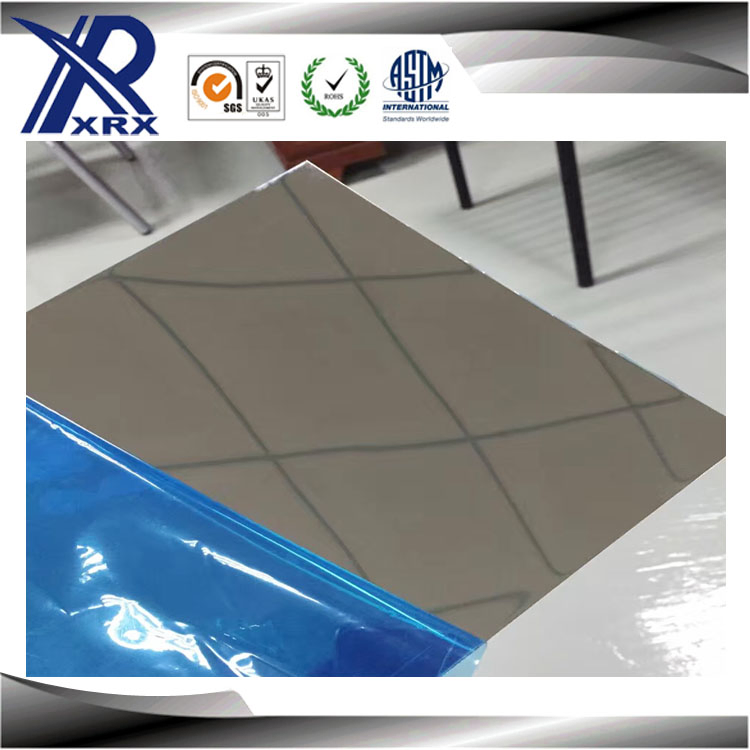

| 8K (Mirror) |
Mirror-like reflective surface by polishing with finer abrasives. |
Reflector, Mirror, Interior-Exterior decoration for building. |
| Hair Line |
Finished by continuous linear polishing. |
Architecture industries, Escalators, Kitchen ware, Vehicles. |

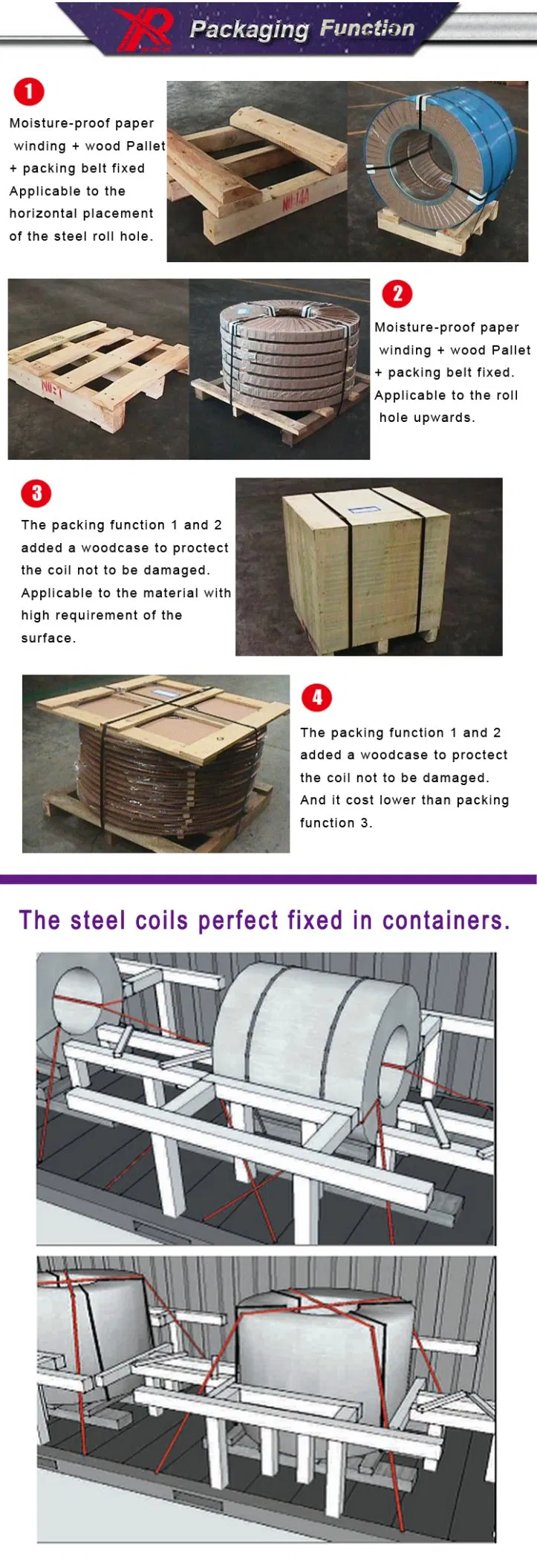

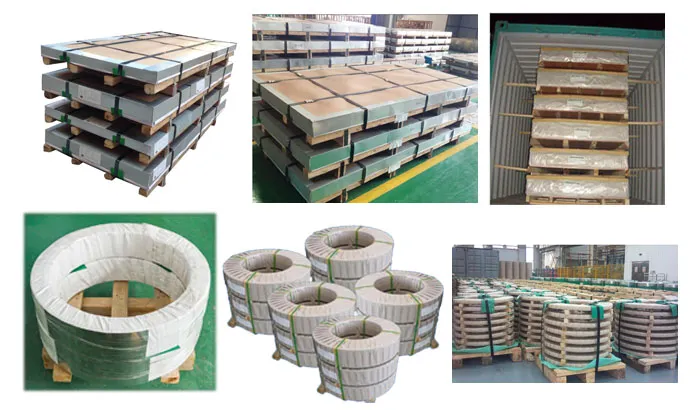

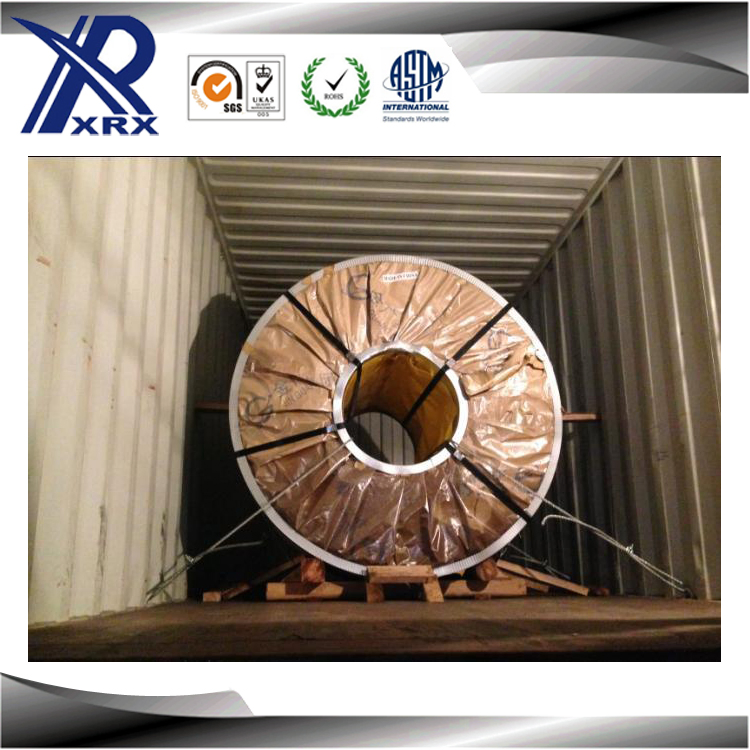

Packing & Shipping
Frequently Asked Questions (FAQ)
What grades of stainless steel do you provide?
We supply a wide range of grades including 201, 304, 304L, 310S, 316, 316L, 430, 409, and 410.
Is it possible to get free samples?
Yes, samples are available for free. However, express shipping charges are generally borne by the requester.
What is the typical delivery time for an order?
The delivery time is usually between 10-15 days after receiving the deposit by T/T or L/C.
Can you customize the thickness and width?
Yes, we can customize irregular thicknesses and widths based on your specific requirements. Our ultra-thin material can go as low as 0.03mm.
What surface finishes are available for architectural use?
For architectural and decorative purposes, we recommend BA, 8K (Mirror), and Hairline finishes for their reflective and aesthetic properties.
What are your payment terms?
Our standard terms are T/T (30% advanced payment, balance before shipment) or irrevocable L/C at sight.
