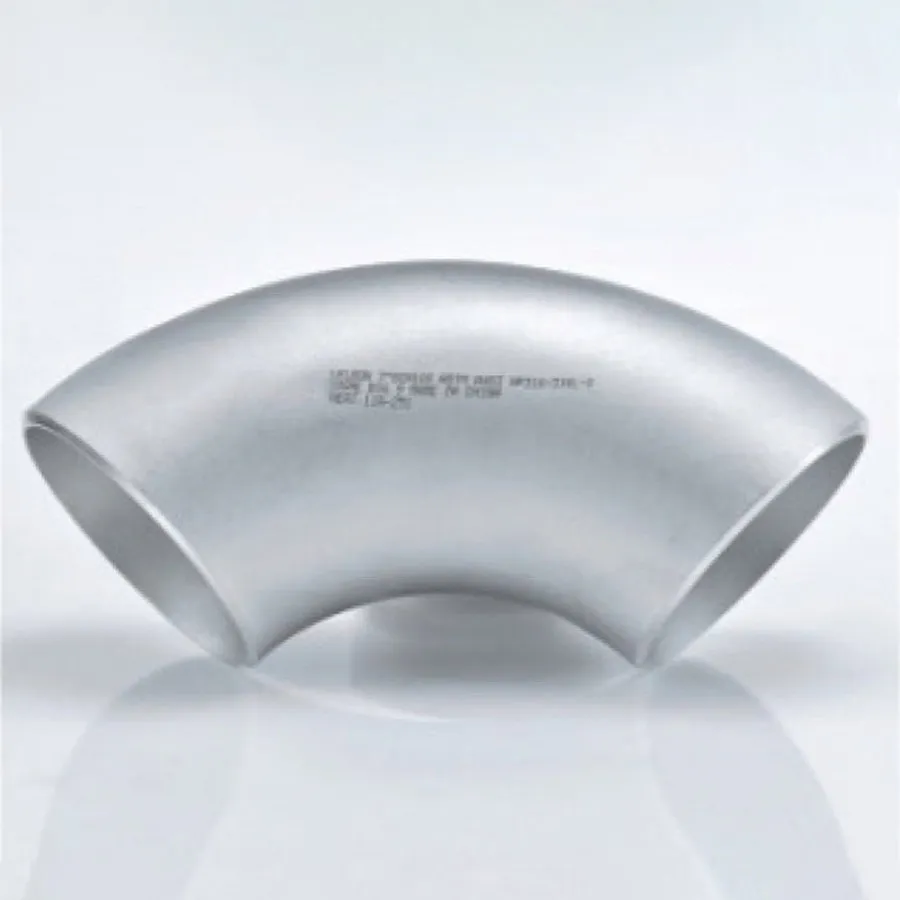

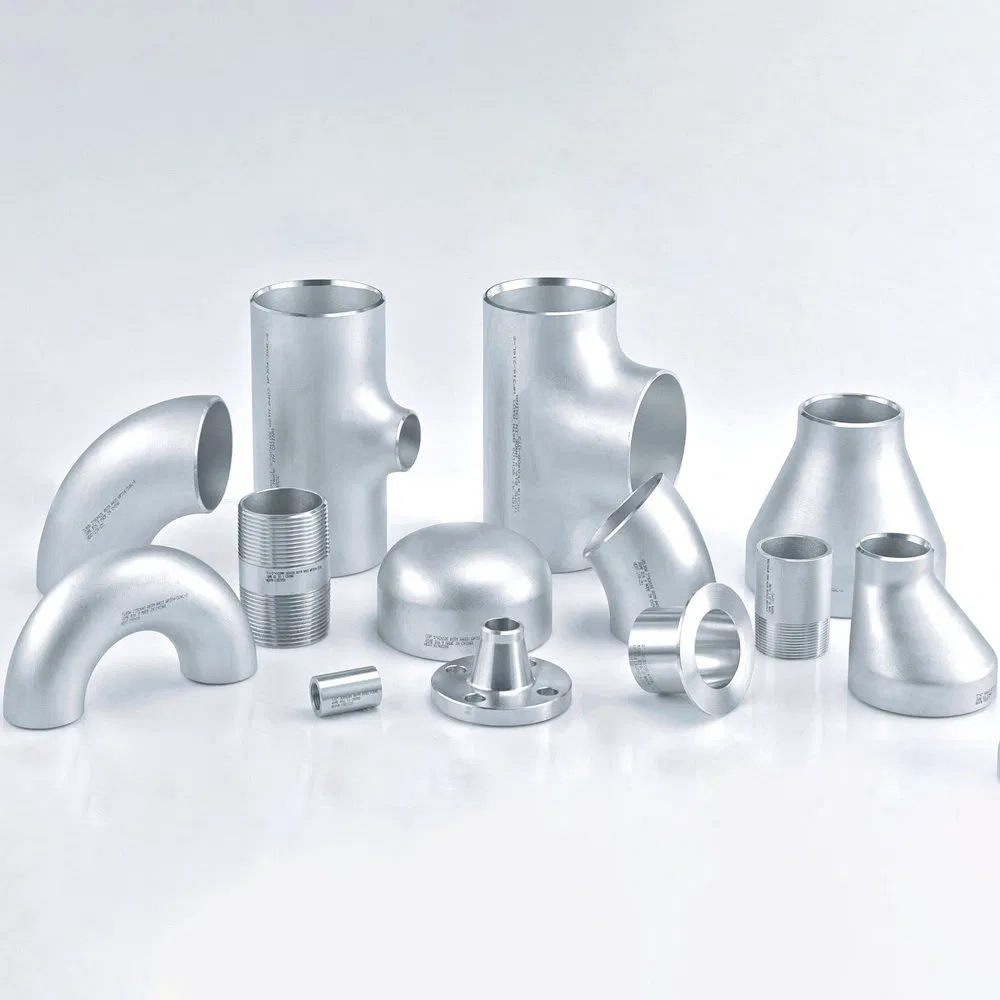

PIPE ELBOW OVERVIEW
Pipe elbows are essential pipe fittings engineered to change the direction of flow in piping systems. These butt weld elbows and threaded elbows are manufactured from premium-grade steel materials, ensuring optimal fluid flow and structural integrity.

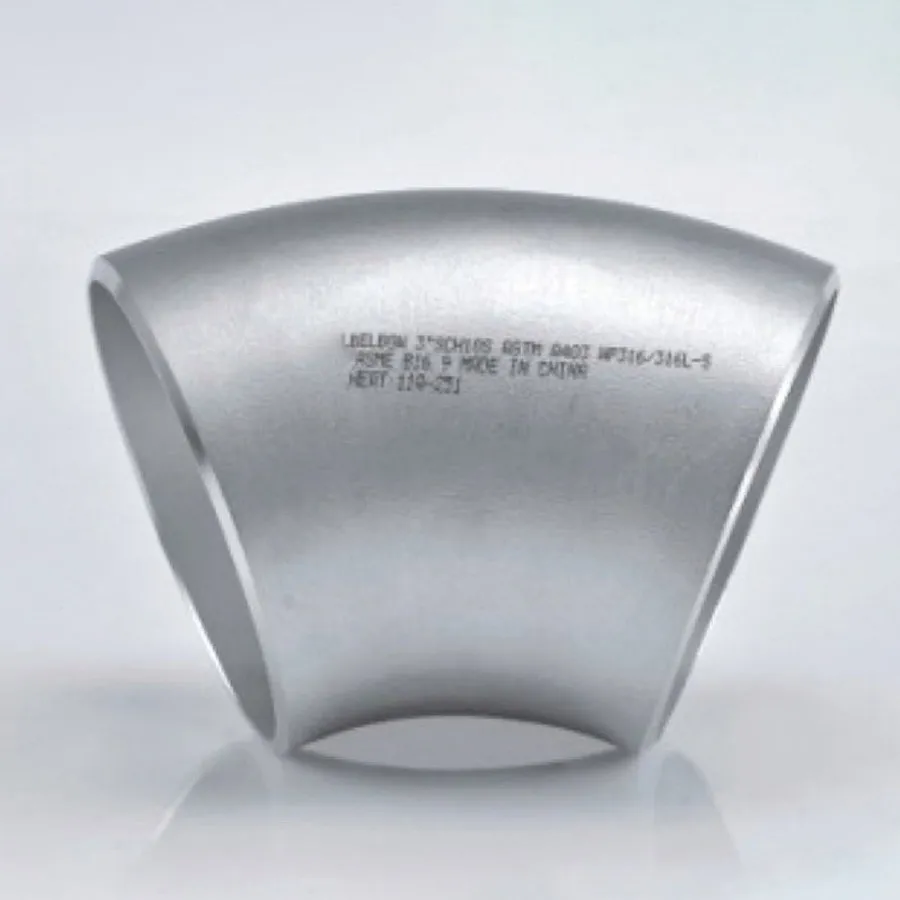

Available in various angles including 45-degree, 90-degree, and 180-degree configurations, as well as long radius (LR) and short radius (SR) designs, these pipe bend fittings accommodate diverse layout requirements in industrial pipelines. Compliant with international standards such as ASME, DIN, JIS, and GB specifications, these elbow fittings provide smooth directional transitions while minimizing pressure drop and turbulence.
KEY APPLICATIONS| Nominal Size | Outside Diameter at Bevel (OD) | Center To End | Center To Center | Back To Face | |||||
|---|---|---|---|---|---|---|---|---|---|
| DN | NPS | 90° LR | 90° SR | 45° LR | 180° LR | 180° SR | 180° LR | 180° SR | |
| 15 | 1/2 | 21.3 | 38 | - | 16 | 76 | - | 48 | - |
| 20 | 3/4 | 26.7 | 38 | - | 19 | 76 | - | 51 | - |
| 25 | 1 | 33.4 | 38 | 25 | 22 | 76 | 51 | 56 | 41 |
| 32 | 1 1/4 | 42.2 | 48 | 32 | 25 | 95 | 64 | 70 | 52 |
| 40 | 1 1/2 | 48.3 | 57 | 38 | 29 | 114 | 76 | 83 | 62 |
| 50 | 2 | 60.3 | 76 | 51 | 35 | 152 | 102 | 106 | 81 |
| 80 | 3 | 88.9 | 114 | 76 | 51 | 229 | 152 | 159 | 121 |
| 100 | 4 | 114.3 | 152 | 102 | 64 | 305 | 203 | 210 | 159 |
