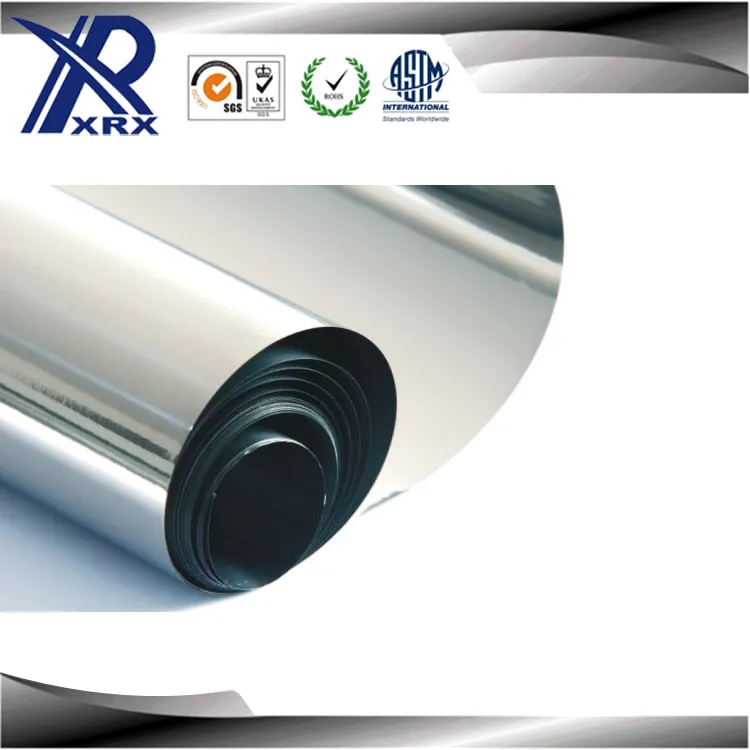

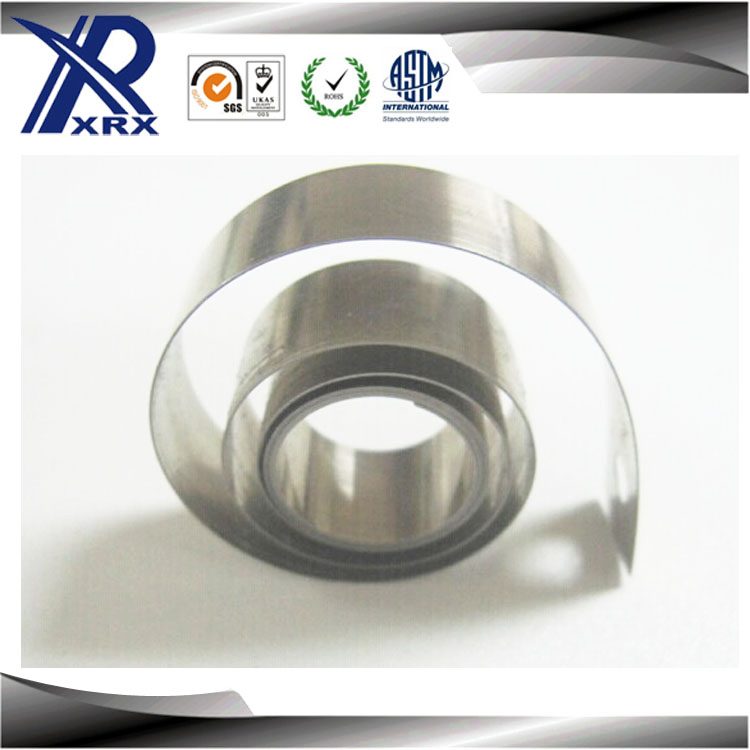

Material: 301 Stainless Steel
Thickness: 0.05-0.08mm
Width: 100-600mm
Surface: 2B

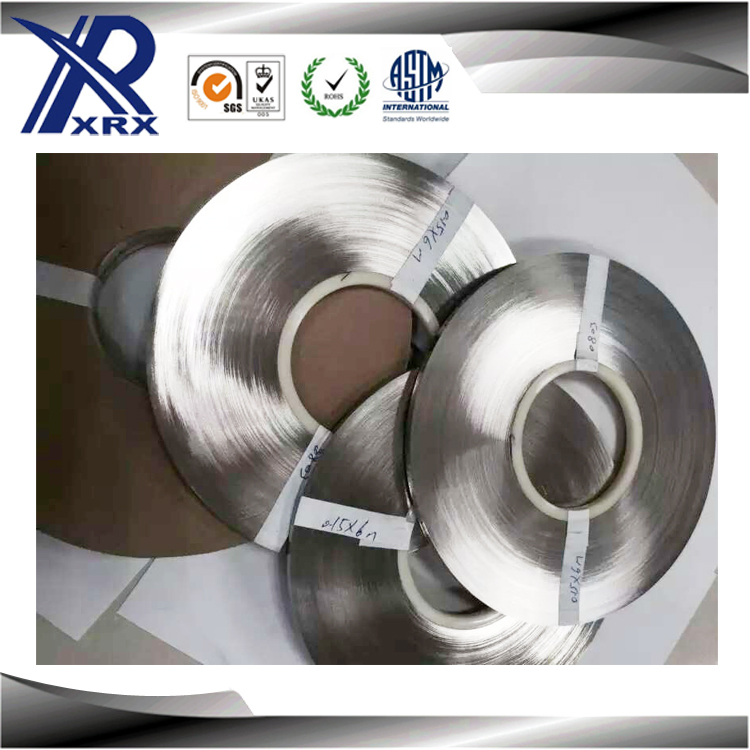

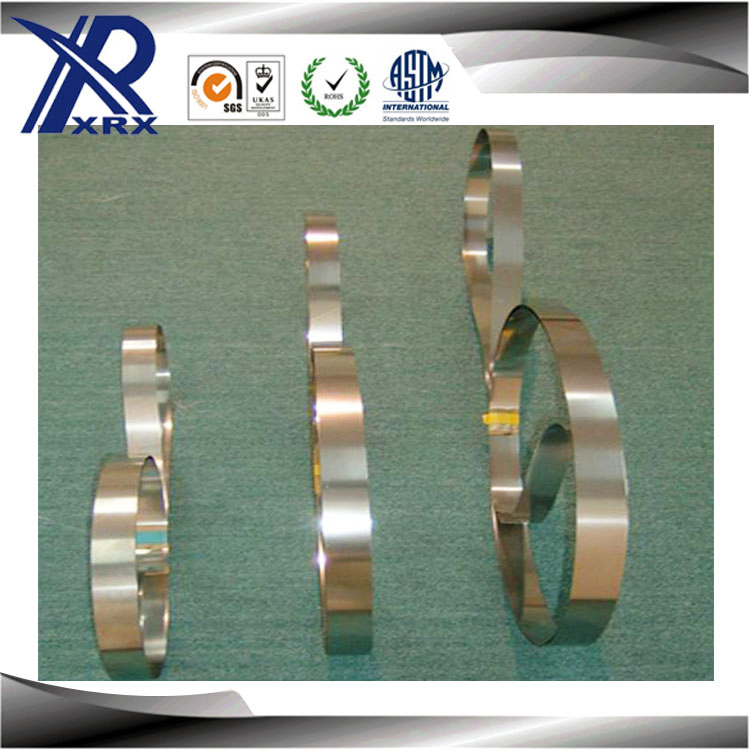

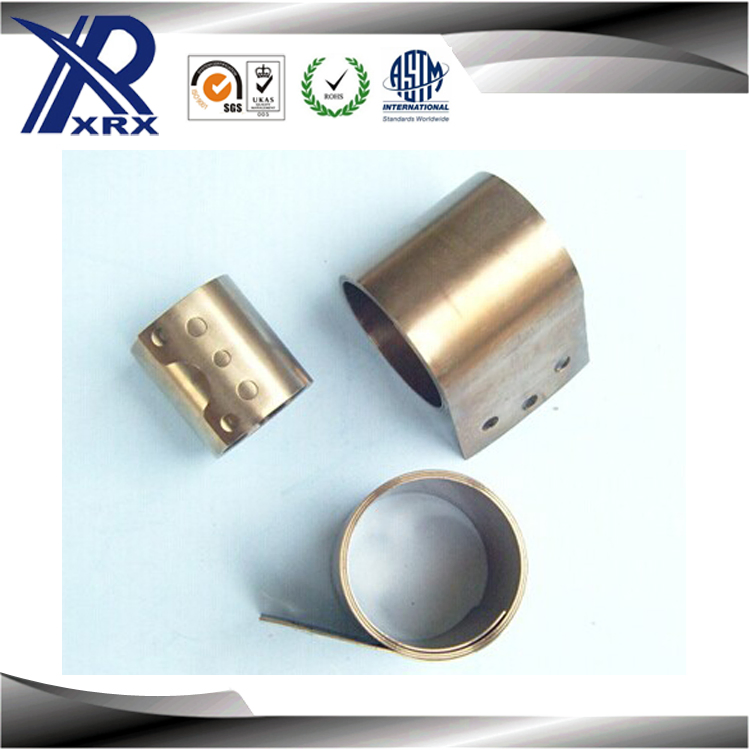

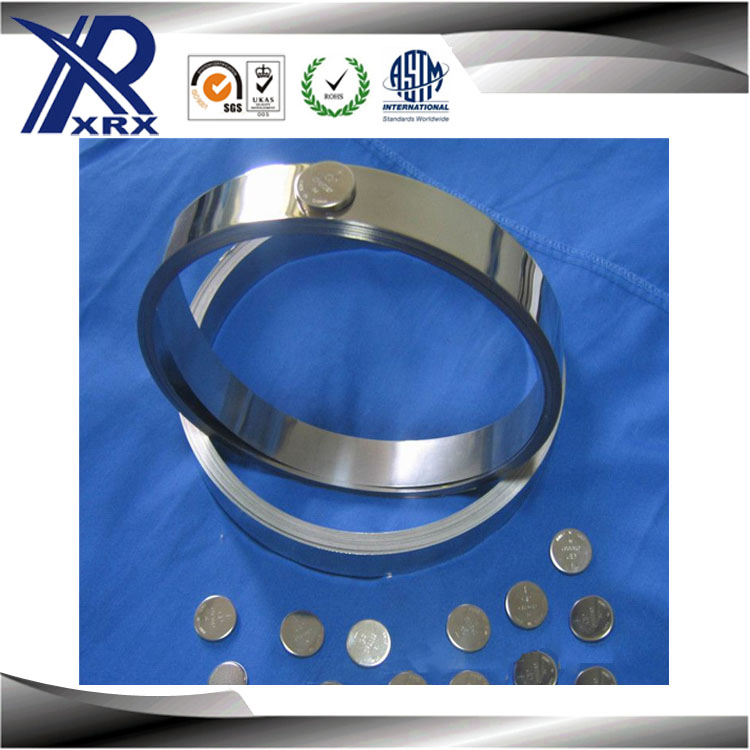

The production focus is on high precision super thin metal electronic materials, which are primarily used in the 3C industry, including computer hard disk components, printer parts, disk drive parts, TFT-LCD frames, monitor parts, screen frames, and mobile handset springs. Furthermore, such foils are widely used in automobile gaskets, engine components, home appliance parts, foil wraps for optical fiber cables, mini laser system parts, and medical tubes. High quality stainless steel strips can be manufactured as thin as 0.02 - 1.5 mm with widths from 80 - 400 mm. The annual capacity exceeds 10,000 tons.
| SUS301 Mechanical properties in the annealed condition | ||||
|---|---|---|---|---|
| Thickness (mm) | Width (mm) | Hardness (hv) | Tensile Strength (mpa) | Yield Strength (mpa) |
| 0.05-1.5 | <500 | <200 | >700 | >205 |
| Main Ingredient | Ni | Cr | Mn | C |
|---|---|---|---|---|
| Reference No. | 6.00/8.00 | 16.00/18.00 | ≤2.0 | ≤0.15 |
| Item | SUS301-S | SUS301-1/4H | SUS301-1/2H | SUS301-3/4H | SUS301-H |
|---|---|---|---|---|---|
| Hardness | <200 | 250-290 | 310-360 | 370-420 | 430-460 |
| Hardness Code | S | 1/4H | 1/2H | 3/4H | H |
| Thickness | Common thickness: 0.1/0.12/0.15...1.5 (Customizable) | ||||
| Surface | 2B, 2D, BA, HL, NO.3, NO.4, TR | ||||
| Surface | Characteristics | Application |
|---|---|---|
| BA | Bright heat treatment after cold rolling. | Kitchen utensils, architectural purposes. |
| 2B | Heat treated, pickled, and skin passed for a smooth surface. | Medical instruments, tableware. |
| NO.1 | Hot-rolled, annealed, and pickled. | Chemical equipment, industrial tanks. |
| 8K | Mirror-like reflective surface. | Reflectors, interior decoration. |
| HL | Continuous linear polishing. | Escalators, kitchen ware, vehicles. |
