| Model NO. | Rod magnet |
| Coating | SS 304 or 316 |
| Grade | N40-N52 |
| Gauss Value | up to 13000 Gauss |
| Customized | Yes |
| Working Temperature | Max 300 Deg C |
| Type | Permanent |
| Composition | Neodymium Magnet |
| Diameter | 10-101.6 Mm |
| Length | 50-2500 Mm |
| Lead Time | Standard Size, Within 2 Days |
| Transport Package | Cartons or Wooden Cases |
| Specification | 12000 Gauss |
| HS Code | 85051110 |
| Production Capacity | 1,000,000 Pieces / Year |
Magnetic bars are usually made of SUS304, SUS316 or SUS 316L tubes filled with permanent magnets by specialized design. Either round or square shape bars are available for customers' requirements for special applications.
Size Range: Our standard magnetic bar is 25 mm (1 inch) in diameter and any length per customers' request up to 2500mm. The diameter of round magnetic bars can range from a minimum of 10 mm to a maximum of 101.6 mm.
Working Temperature: Standard tolerance is 80 Celsius degree. Upon demand, we can manufacture rods capable of withstanding up to 350 Celsius degree to meet special industrial applications.

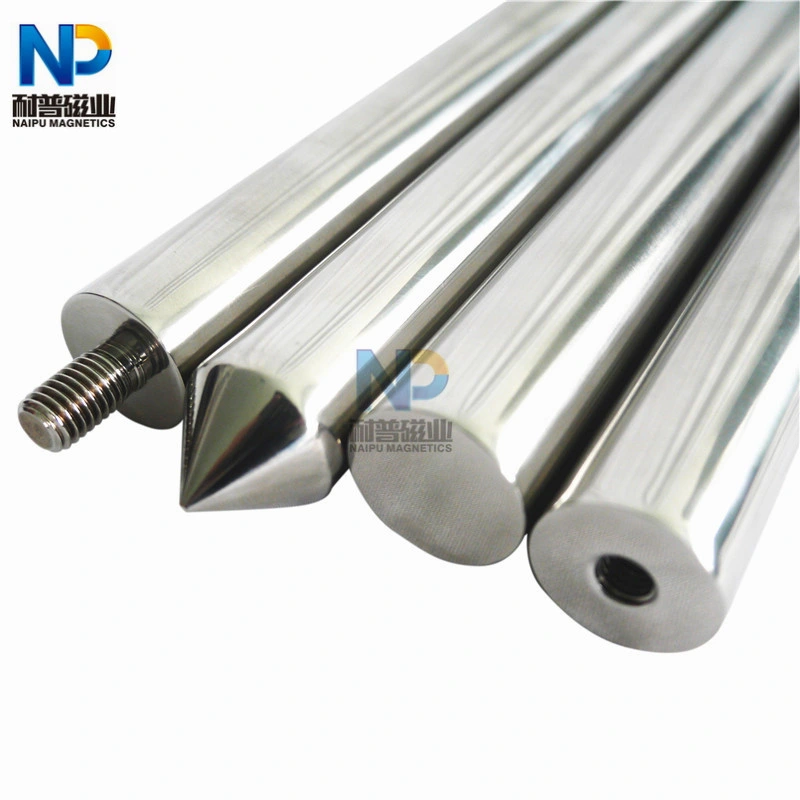

Specialized Ends: Options include Nailhead, eye nuts, thread holes, thread rods, and other custom configurations.
Magnetic Force: Tailored to specific requirements. The highest magnetic strength for a 25 mm diameter bar can achieve 12,000 GS.
