🟦 Basic Information
Earthing Method
Direct Earthing Method
Material
Galvanized Copper
Certification
CCC, ISO9001, ROHS
Tensile Strength
>=580nm/mm
Length
1.2m~3.0m (4FT~10FT)
Diameter
14.2mm~25mm; (5/8, 3/4)
Package Size
150.00cm * 100.00cm * 20.00cm
🟦 Product Description
Fair Price Galvanized Earth Rod is used for the earthing systems of power plants, transformer stations, towers, communication stations, airports, railways, subway stations, high buildings, computer rooms, petro plants, and oil reservoirs in moist, saline, alkaline, acid, and chemical corrosion environments.

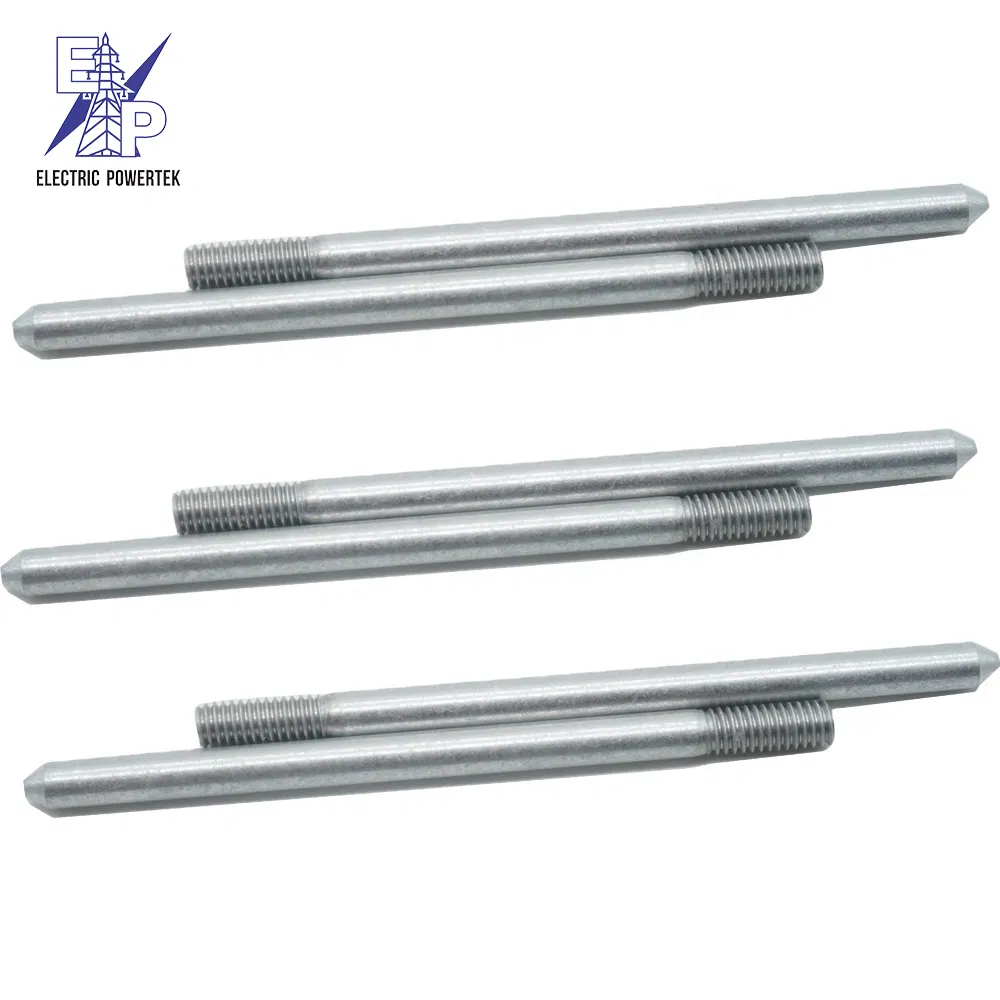

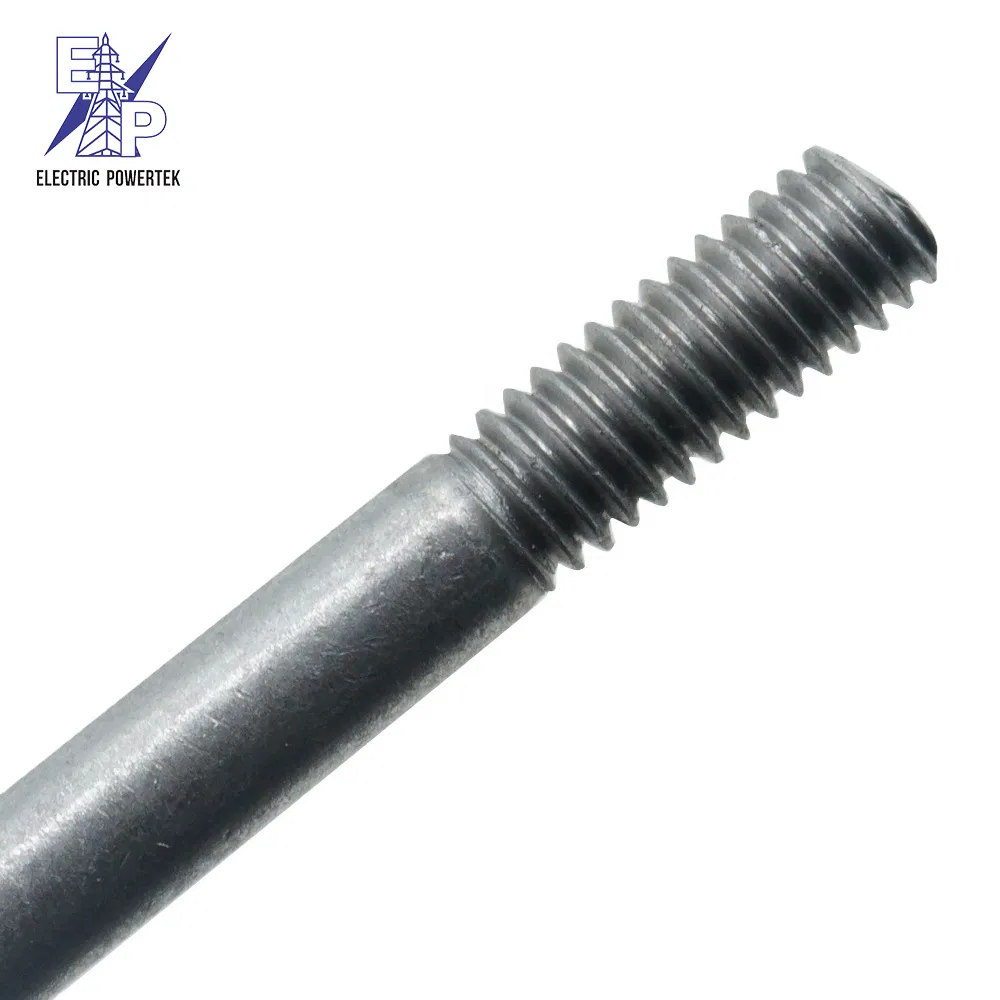

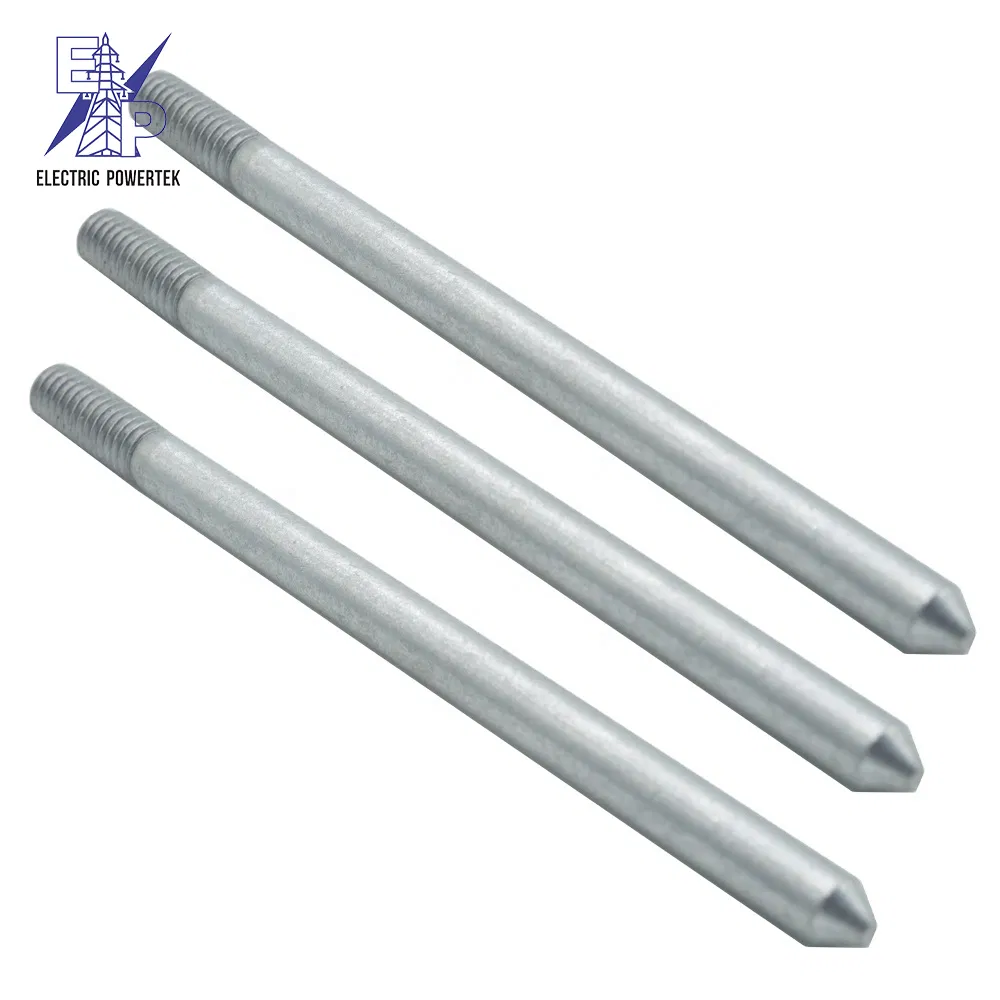

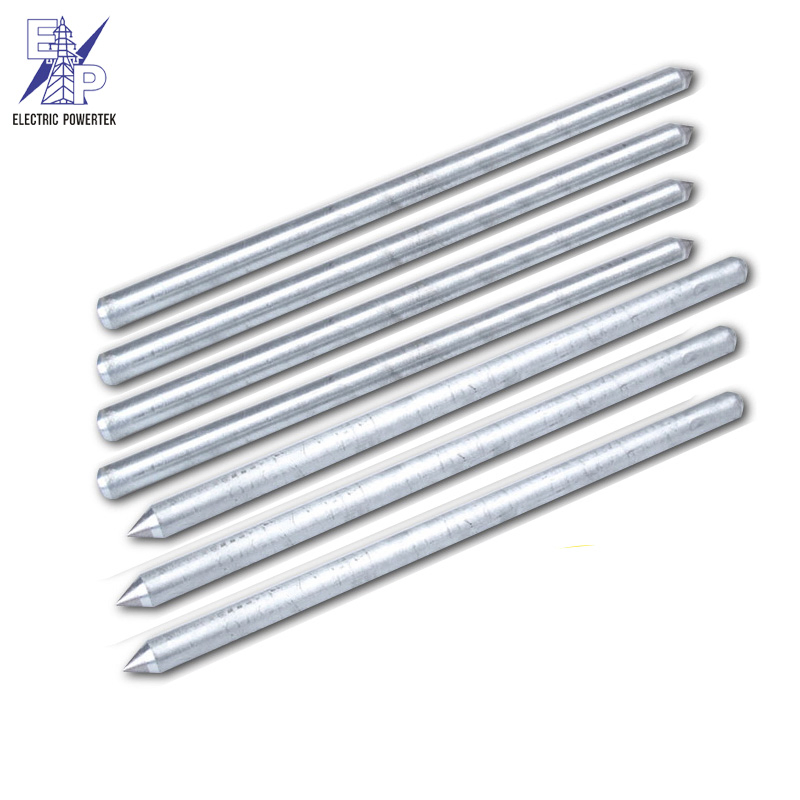

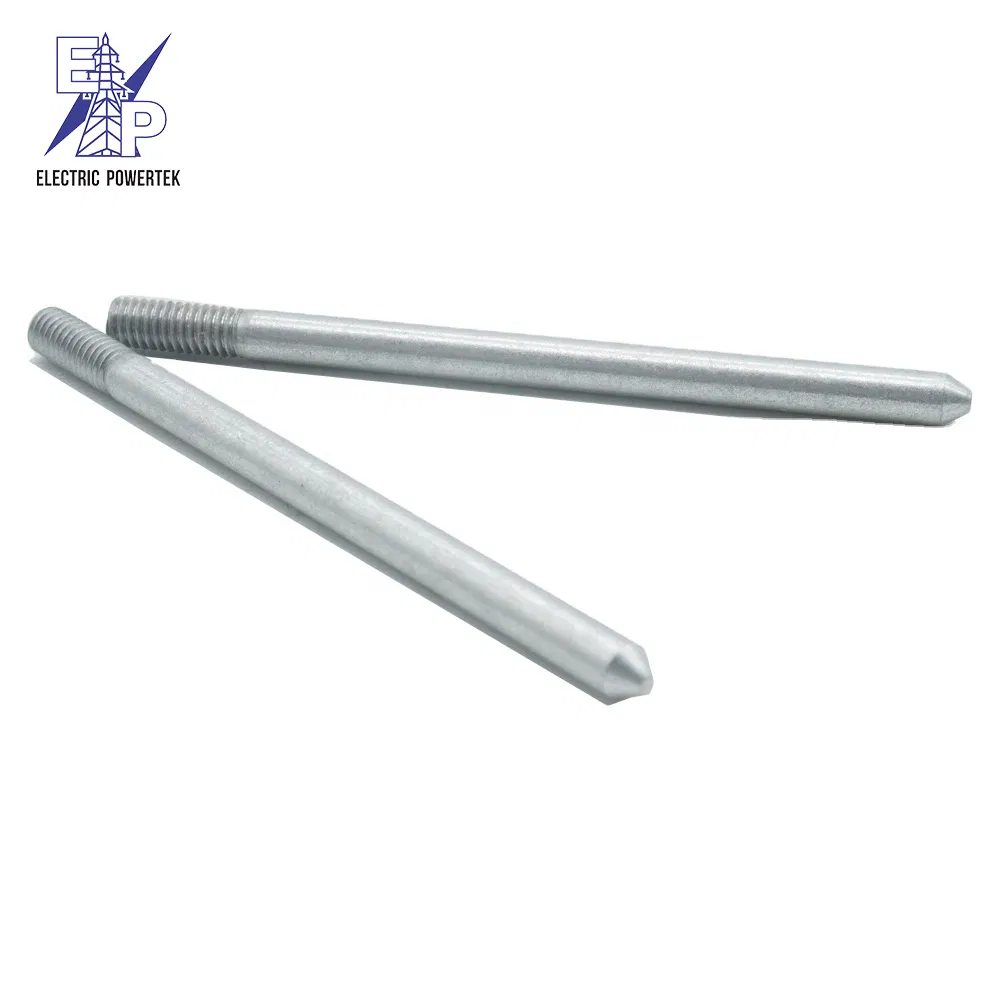

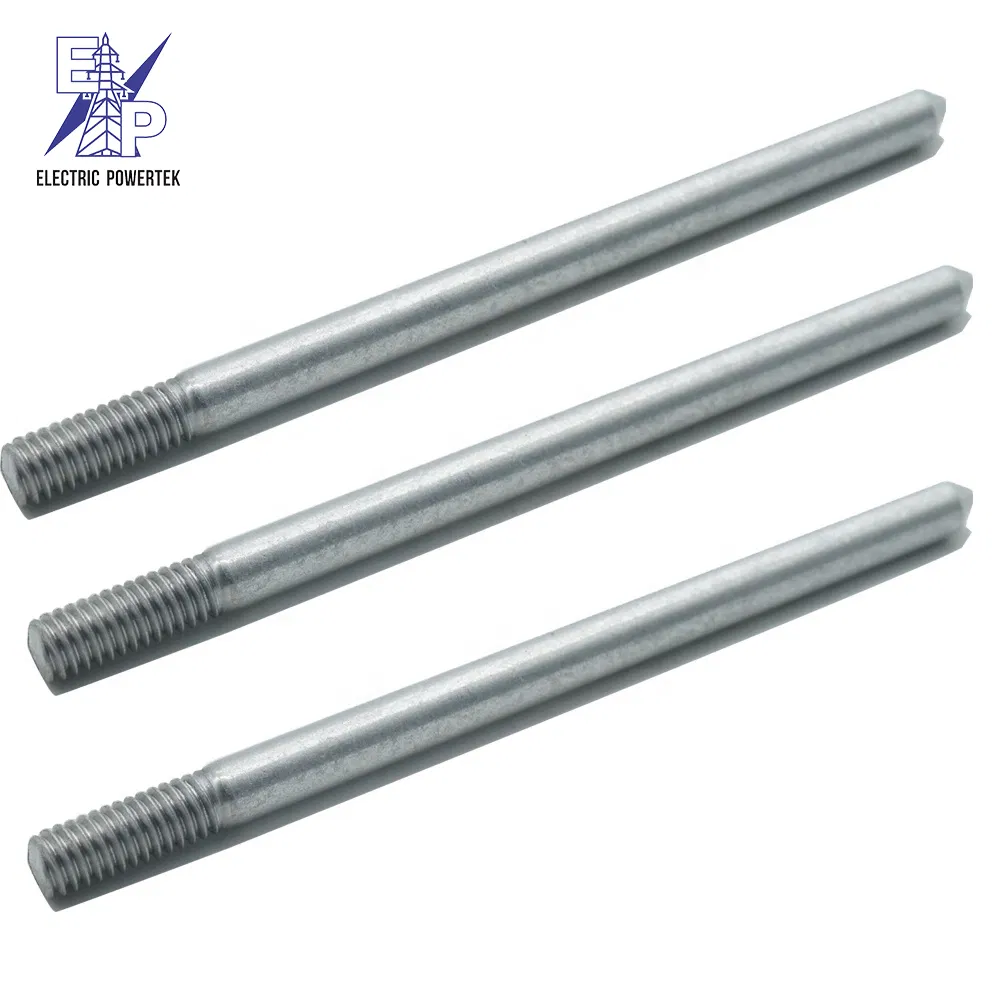

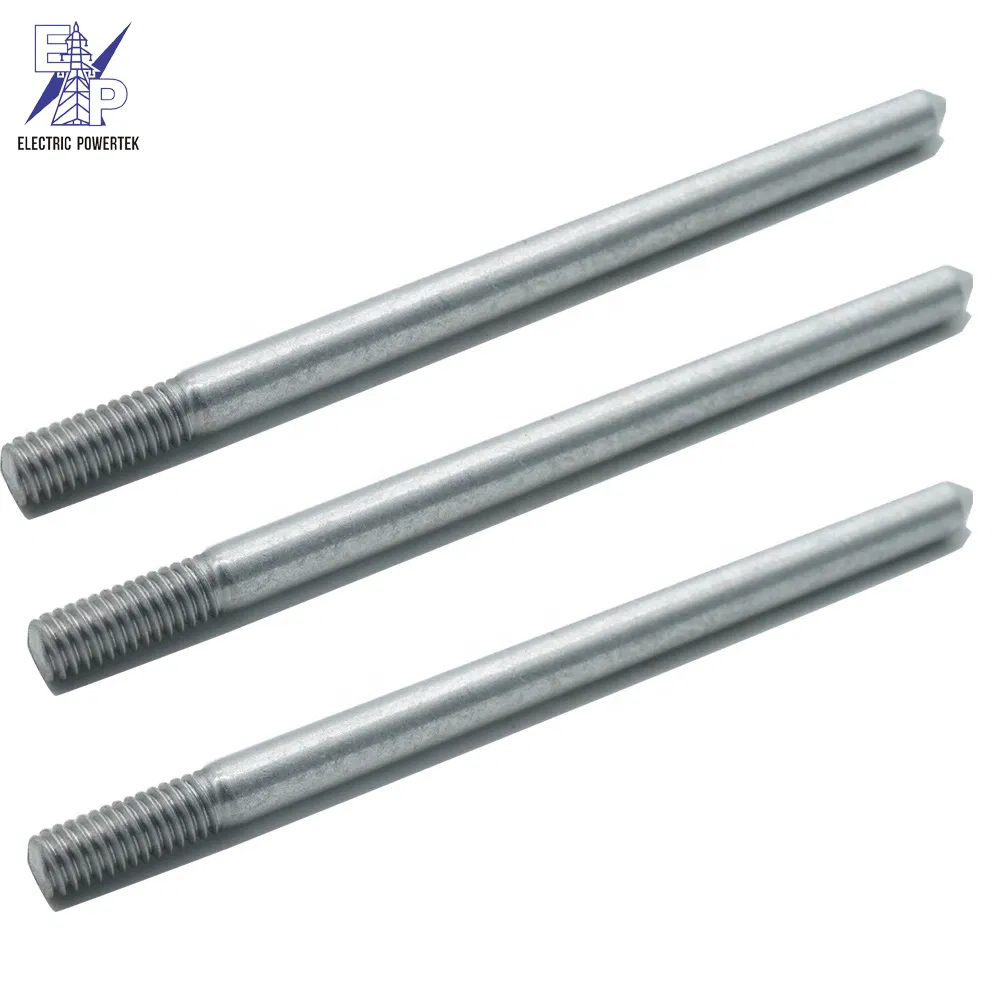

🚀 Hot Dipped Galvanized Ground Rod

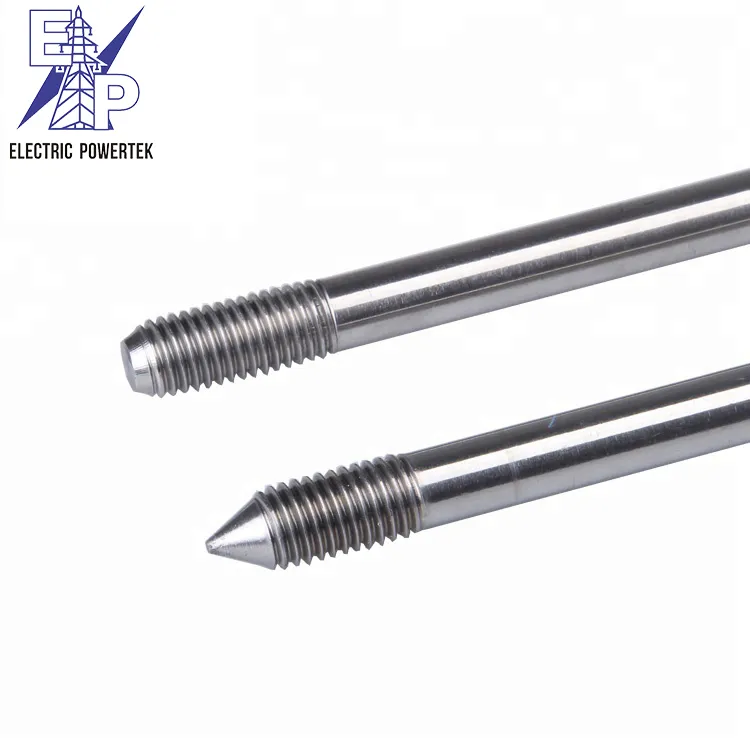

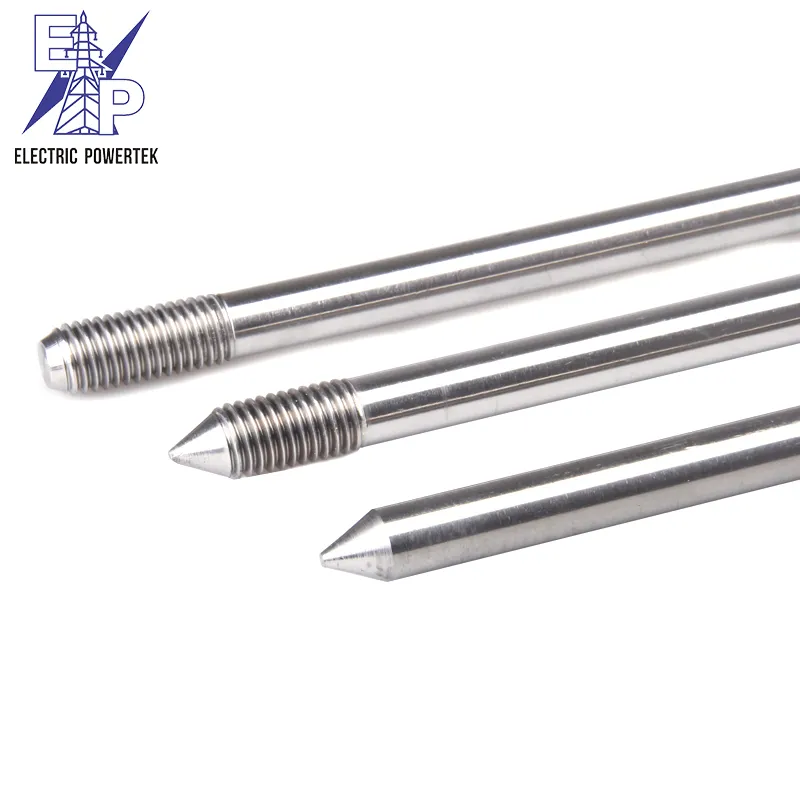

🚀 Stainless Steel Ground Rod

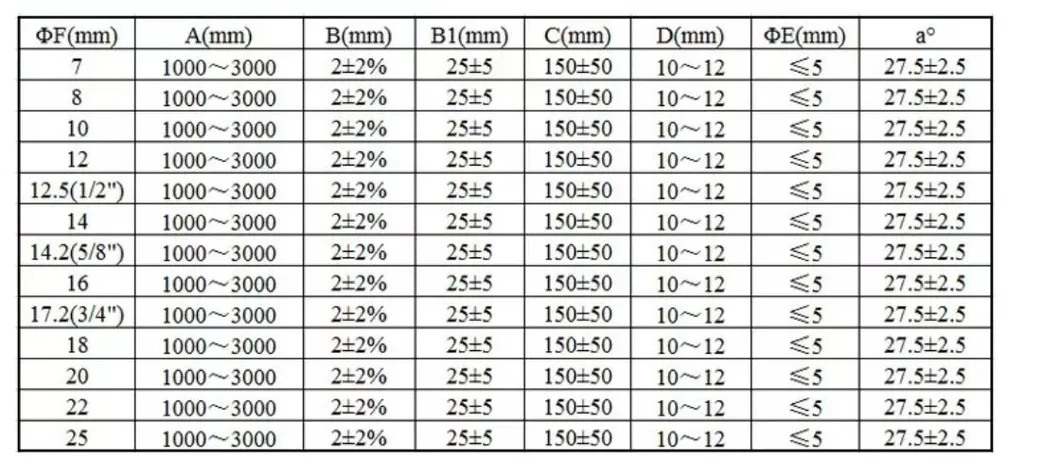

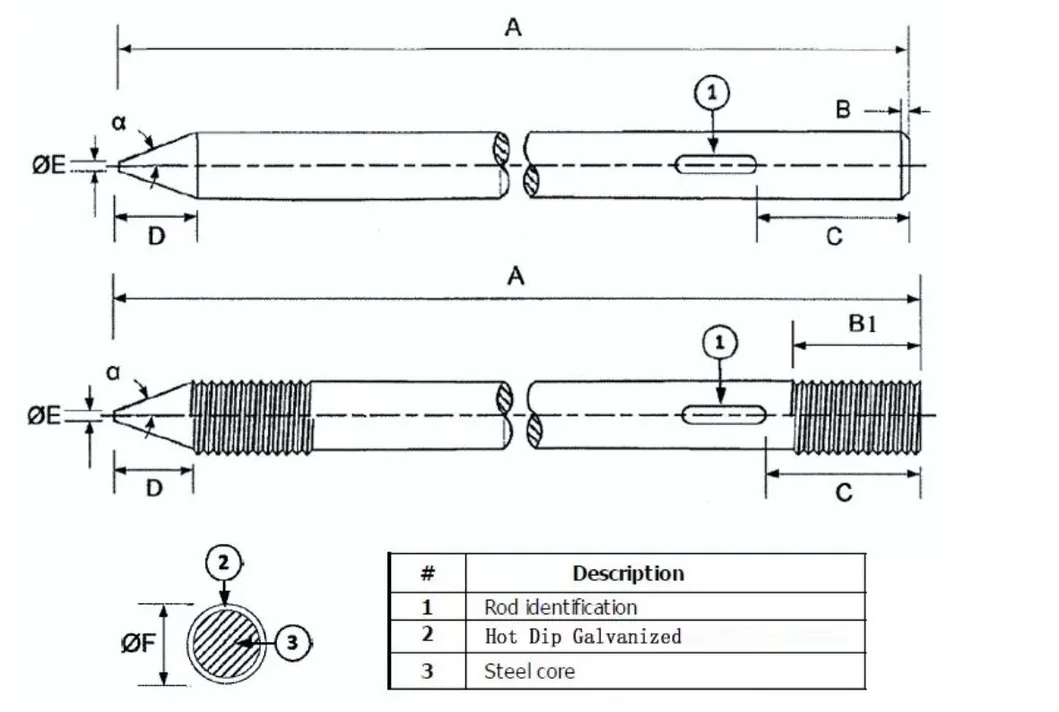

🟦 Technical Specifications
| Item No. |
Copper Thickness (microns) |
Diameter (mm) |
Thread |
Length (mm) |
Weight (kg) |
| EP-01 | >=254 | 12.7 | 9/16 | 1200 | 1.18 |
| EP-04 | >=254 | 14.2 | 5/8 | 1200 | 1.52 |
| EP-07 | >=254 | 16 | M18 | 1200 | 1.89 |
| EP-10 | >=254 | 17.2 | 3/4 | 1200 | 2.2 |
| EP-13 | >=254 | 18 | M20 | 1200 | 2.4 |
| EP-16 | >=254 | 20 | M22 | 1500 | 3.7 |

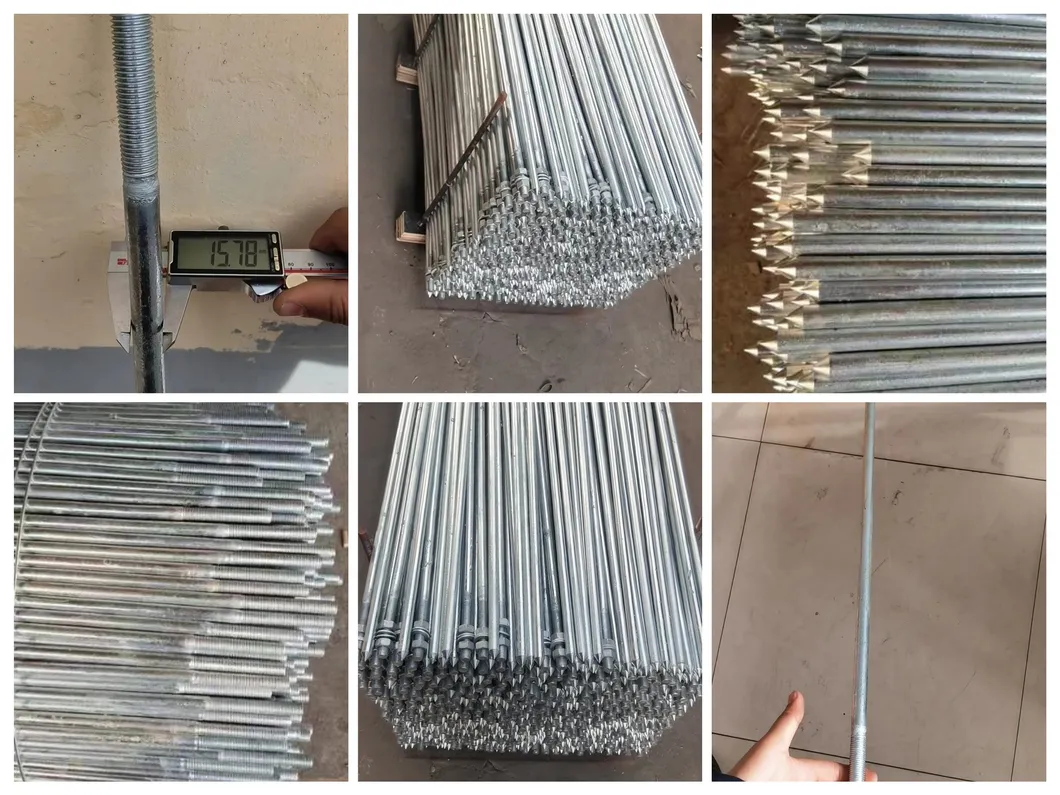

🟦 Detailed Quality Control
1. Plasticity of Coating
Tested by bending the rod at 180 degrees. The lack of cracks and exfoliation demonstrates the high quality of our products. These tests are conducted according to strict quality control procedures.
2. Copper Thickness
Measured by an electronic thickness gauge at multiple points. We guarantee a minimal thickness of 0.254 mm. This thickness allows for threading after copper bonding, ensuring the bottom of the thread is fully protected by copper.
🟦 Profile & Logistics
Our company is an enterprise that integrates research and development, production, and sales. All our products have been exported to global markets including the USA, Middle East, Europe, Africa, Asia, Australia, and South America. We provide worry-free services and technical solutions to ensure the safety of your construction projects. Our products comply with ISO, UL, CE, and BS standards.

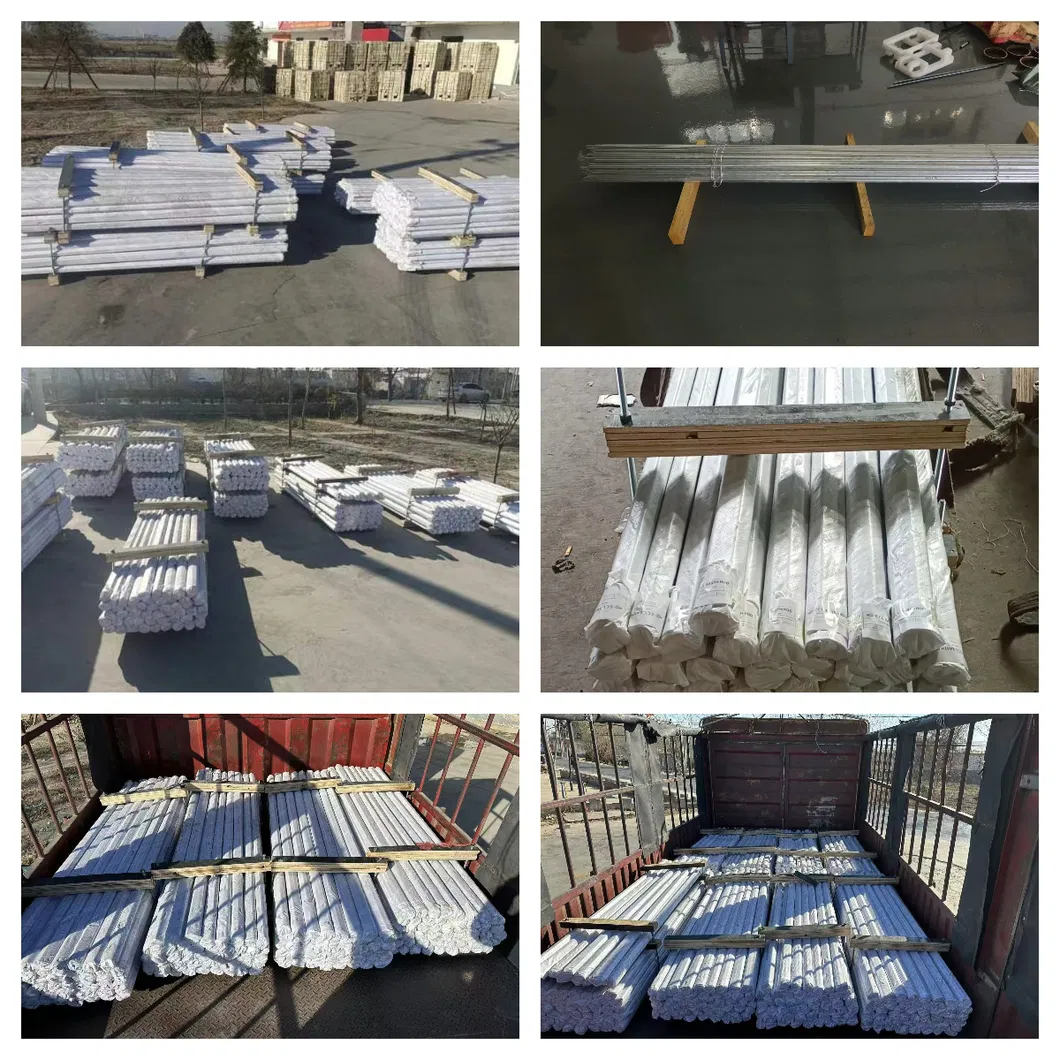

SHIPPING AND DELIVERY
🟦 FAQ
Do you provide sample services?
Yes, we provide samples (usually one piece at a time). Please note that freight costs are to be borne by the customer.
Do you support customized services?
Yes, we can customize dimensions and logos according to your specific requirements. Please consult our team for minimum order quantities.
How do you handle design and engineering?
Our experienced team of CAD and 3D designers can deliver outstanding designs for your projects, including complex structures for transmission lines.
What are your payment terms?
We generally accept T/T, L/C, and Western Union.
What is the typical delivery time?
Delivery usually takes between 7 to 15 days, depending on the order quantity.
What quality standards do your products meet?
Our products are manufactured to high standards and we hold ISO9001:2008 certification, ensuring both excellent quality and competitive pricing.
