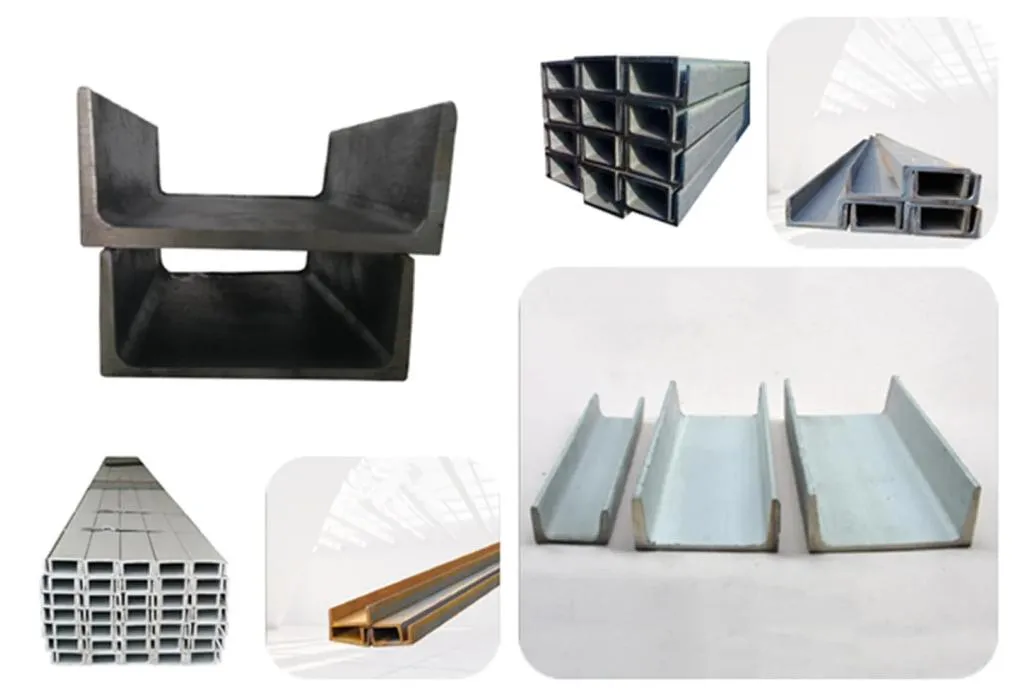

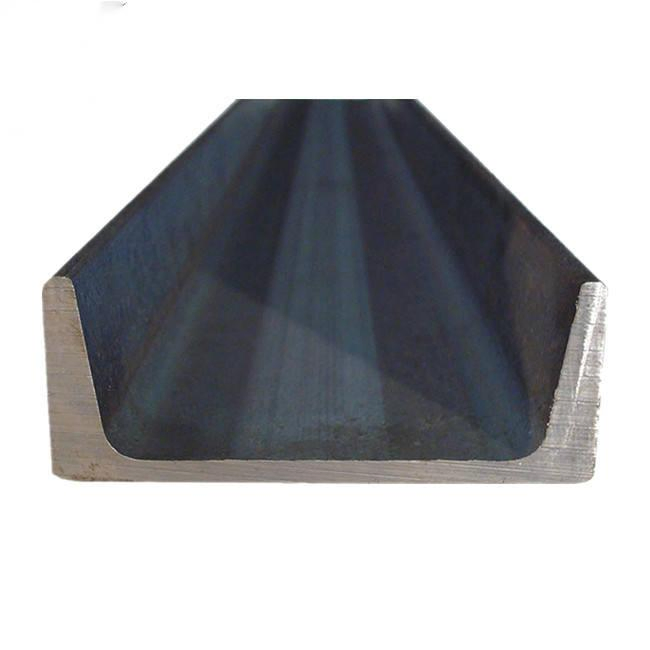

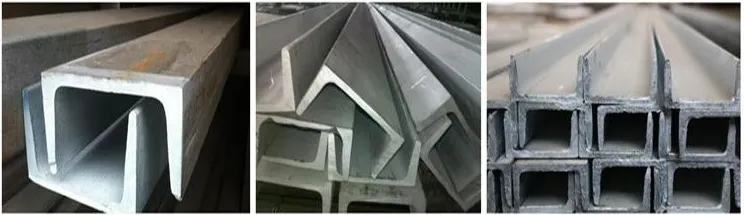

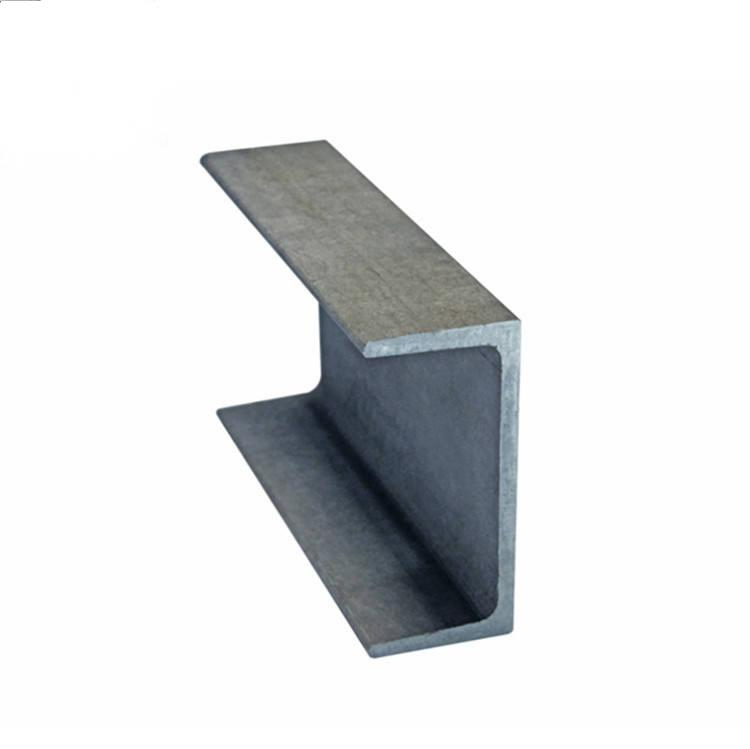

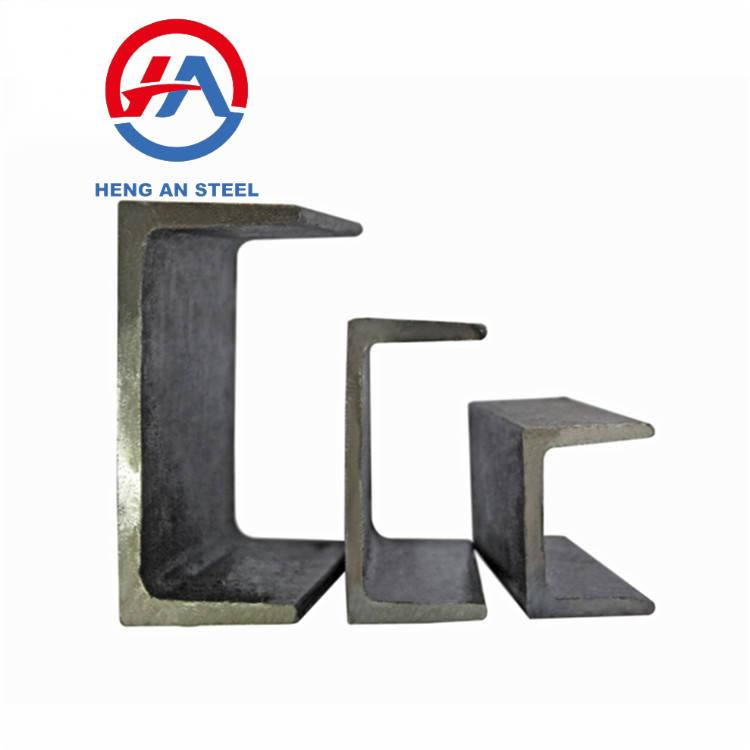

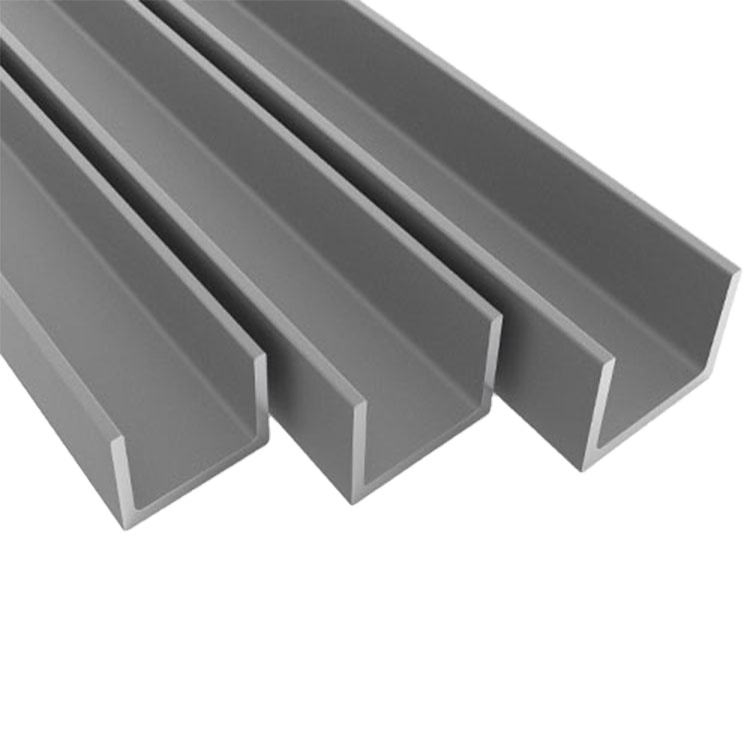

Channel steel is a groove-shaped section of long steel, belonging to the construction and mechanical structural steel. It is a complex section steel where the section shape is a groove. It is widely used in building structures, curtain wall engineering, mechanical equipment, and vehicle manufacturing.
| Material/Grade | 316L S31603 | ||
|---|---|---|---|
| Length | 6M or any length | ||
| Width | 50mm*4.0mm thick - 160mm*6.5mm thick | ||
| Thickness | 2.0mm-20mm | ||
| Technique | Cold drawing / Hot drawing | ||

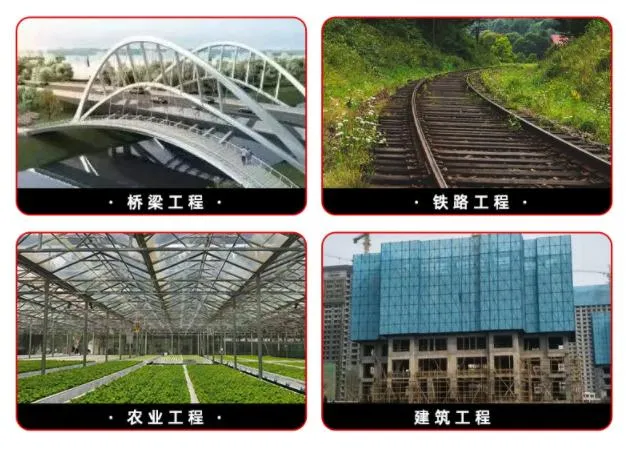

| Application | Industrial and civil construction, steel structure load-bearing, machinery manufacturing, ship frames, and underground engineering. | ||
| Size (mm) | Weight (KG/M) | Size (mm) | Weight (KG/M) |
|---|---|---|---|
| 50*37*4.5 | 5.438 | 200*73*7 | 22.64 |
| 63*40*4.8 | 6.634 | 200*75*9 | 25.777 |
| 80*43*5 | 8.045 | 220*77*7 | 24.999 |
| 100*48*5.3 | 10.007 | 250*78*7 | 27.41 |
| 120*53*5.5 | 12.059 | 280*82*7.5 | 31.427 |
| 160*63*6.5 | 17.24 | 300*89*11.5 | 43.883 |
Standards Available: JIS Standard Channels, GB Standard Channels, EN Standard Channels, European Economical Channels.

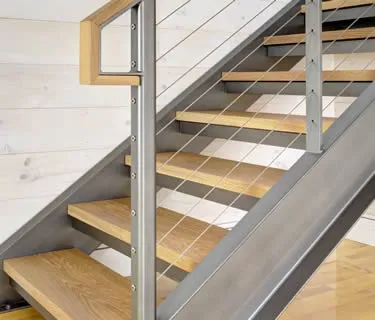

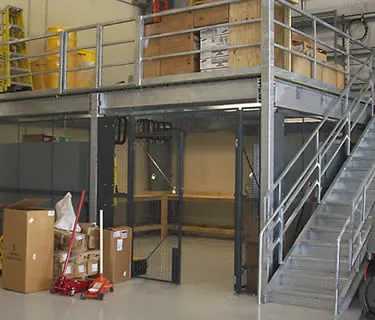

Ceiling channel systems, frames for machinery, equipment, walls, tracks for machines, and supporting parts for warehouses and modern buildings.
