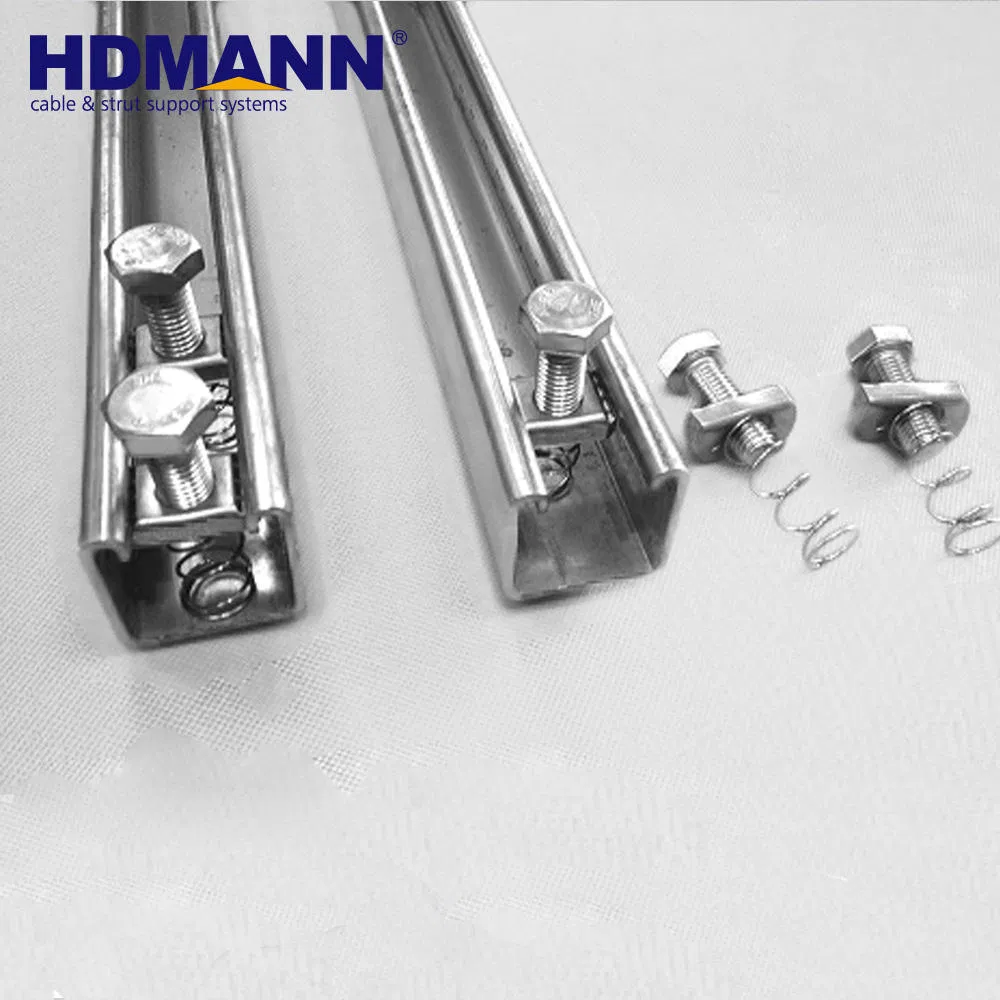

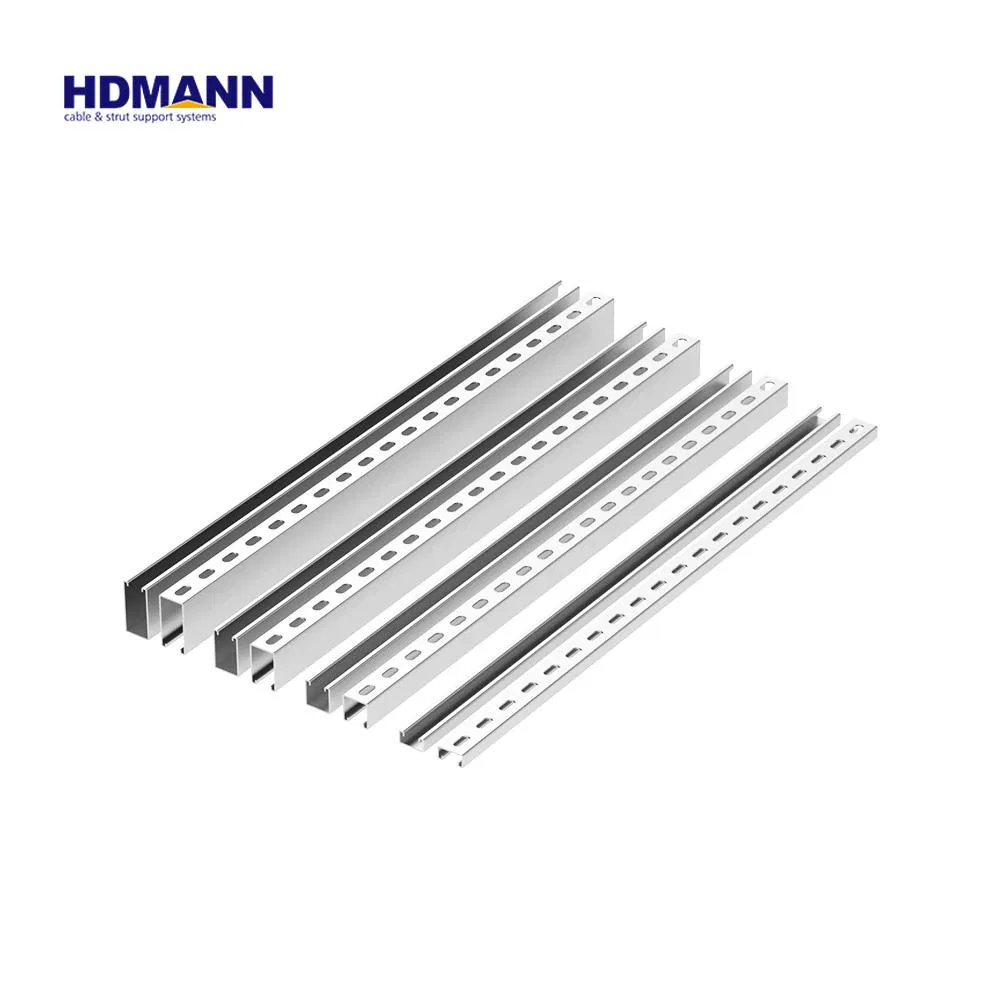

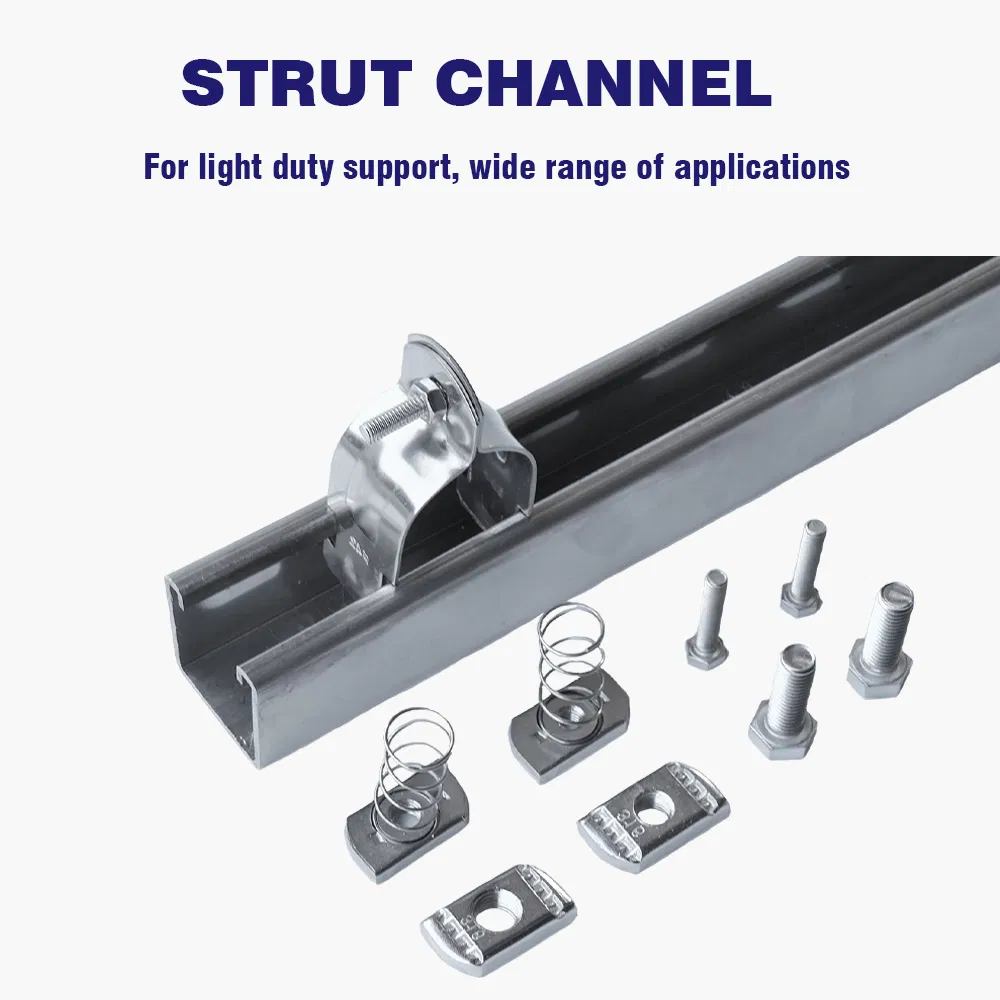

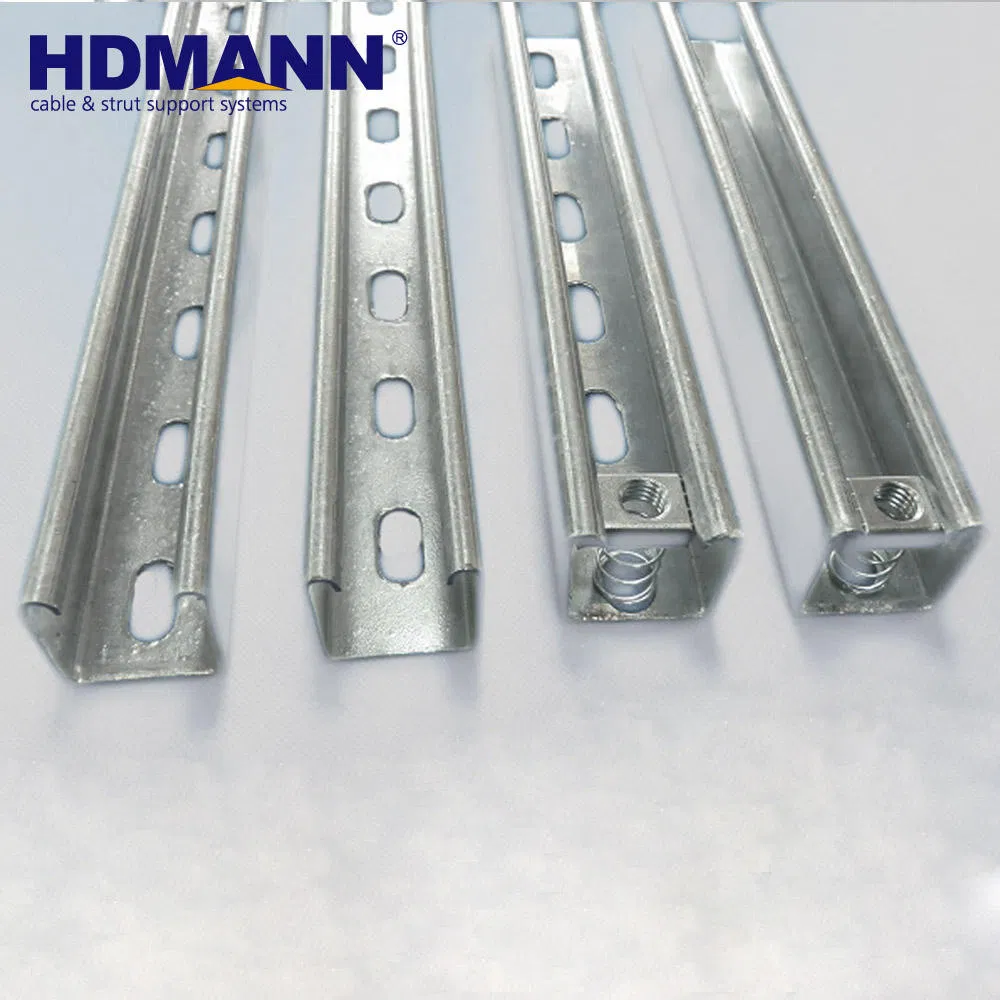

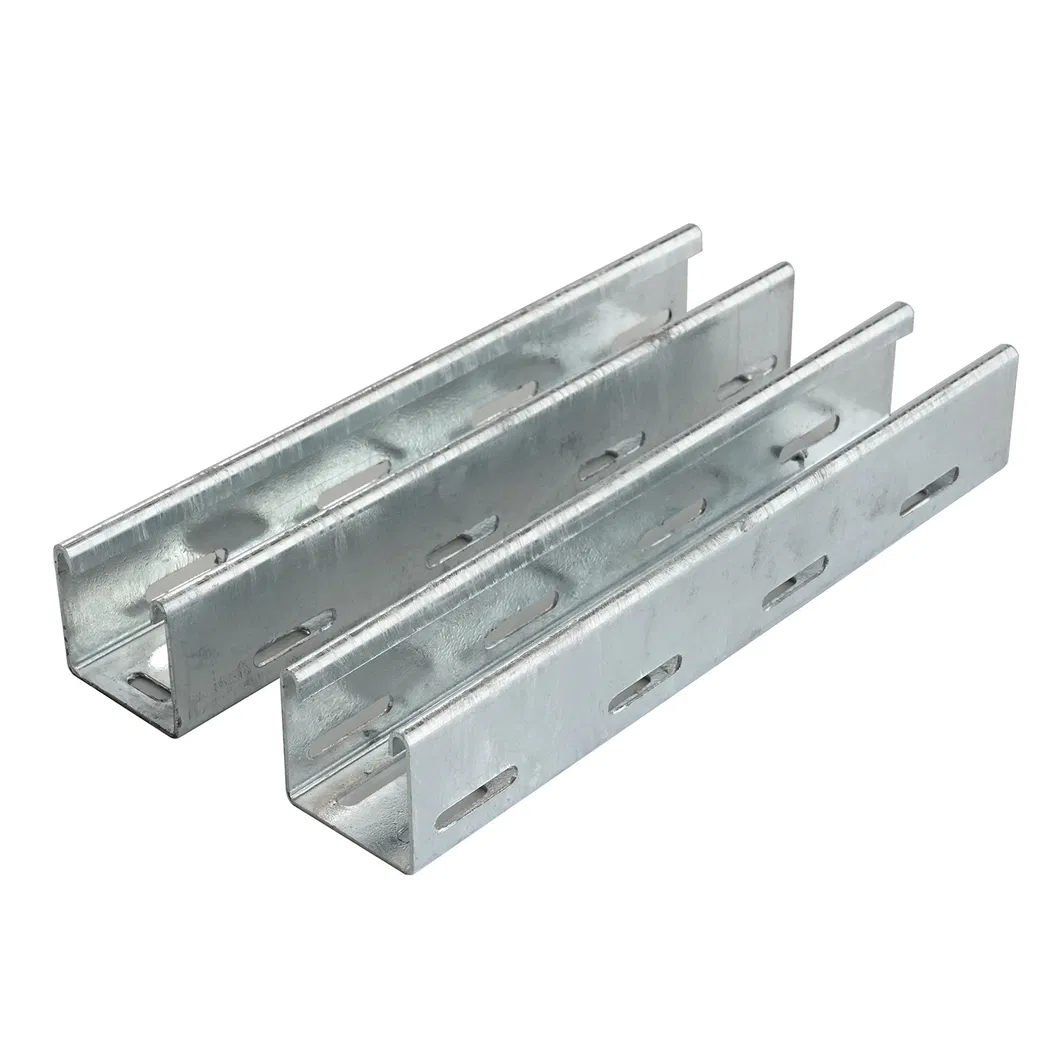

Strut slotted galvanized support system u beam steel channel
The C channel is constructed of precision engineered, high quality materials and is the result of research gained from the installation of framing projects across the globe. It is subjected to testing at every stage of the manufacturing process.

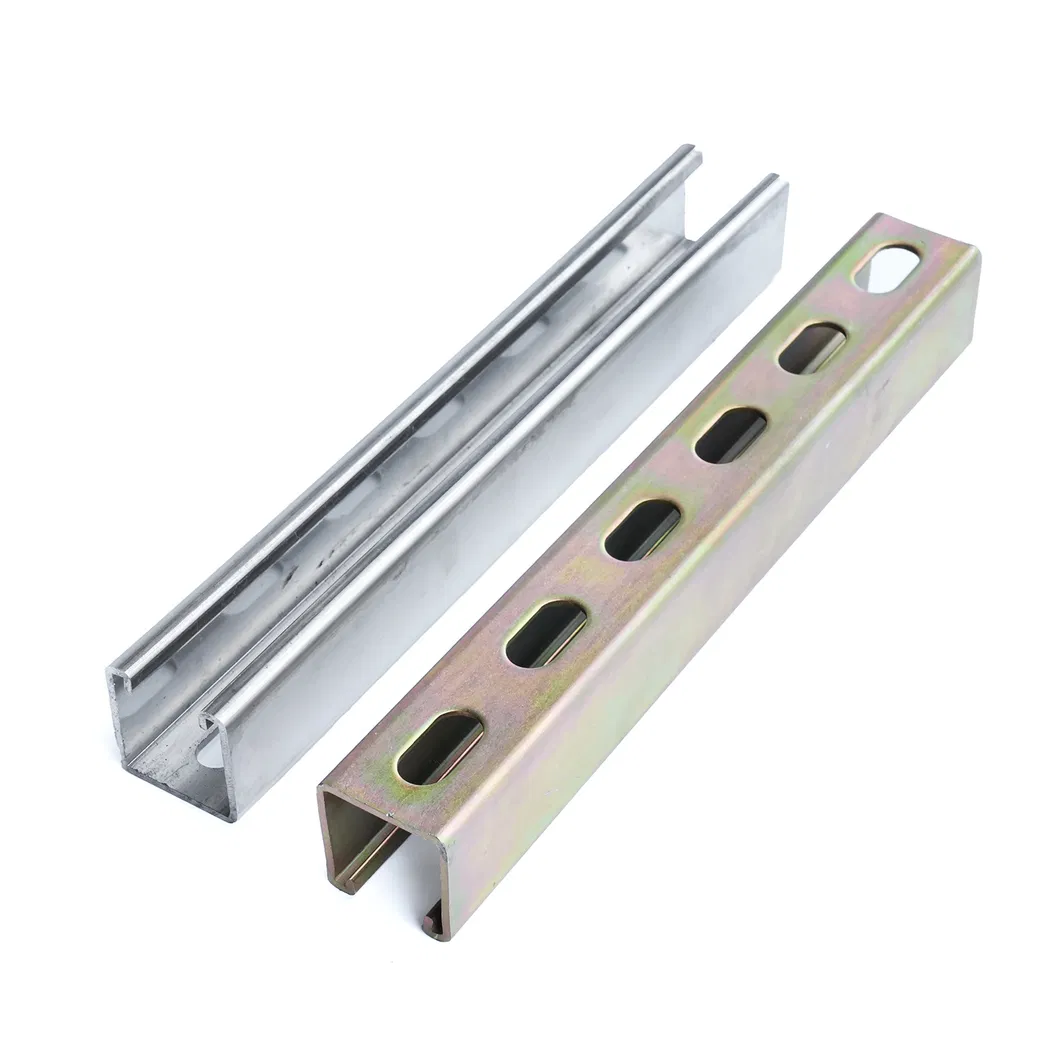

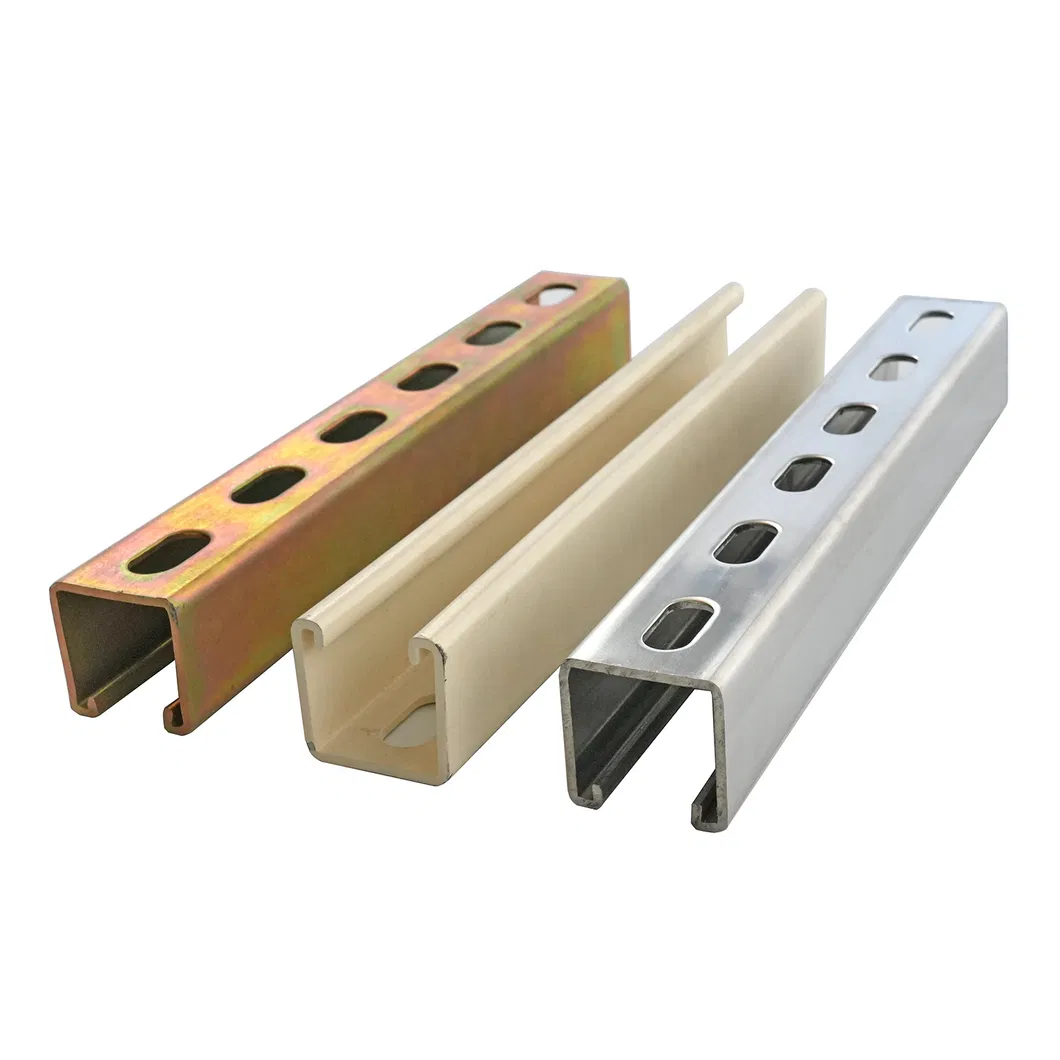

In actual use, it has performed in a wide variety of office buildings and is widely used for solar projects, house building purlines, and anywhere that requires framing and support. Standard finishes include electroplated zinc after fabrication, hot-dipped galvanized, pre-galvanized, as well as powder coating in various colors. Type 304 and 316 stainless steels are also available for extremely corrosive environments.
Standard Dimensions and Weight (kg/meter)
| W*H / Thickness | 1.5mm | 2.0mm | 2.5mm | 2.75mm | 3mm |
|---|---|---|---|---|---|
| 41*41 | 1.68 | 2.22 | 2.78 | 3.07 | 3.35 |
| 41*25 | 1.29 | 1.72 | 2.14 | 2.36 | 2.57 |
| 41*21 | 1.18 | 1.59 | 1.98 | 2.2 | 2.37 |
| 41*72 | 2.42 | 3.22 | 4.03 | 4.43 | 4.82 |
| 41*82 | 2.65 | 3.53 | 4.4 | 4.85 | 5.28 |
With over 13 years of experience, our efforts in improving both products and services have been rewarded by a wide and growing user base. Our systems are quality assured to ISO9001 and meet global standards.
