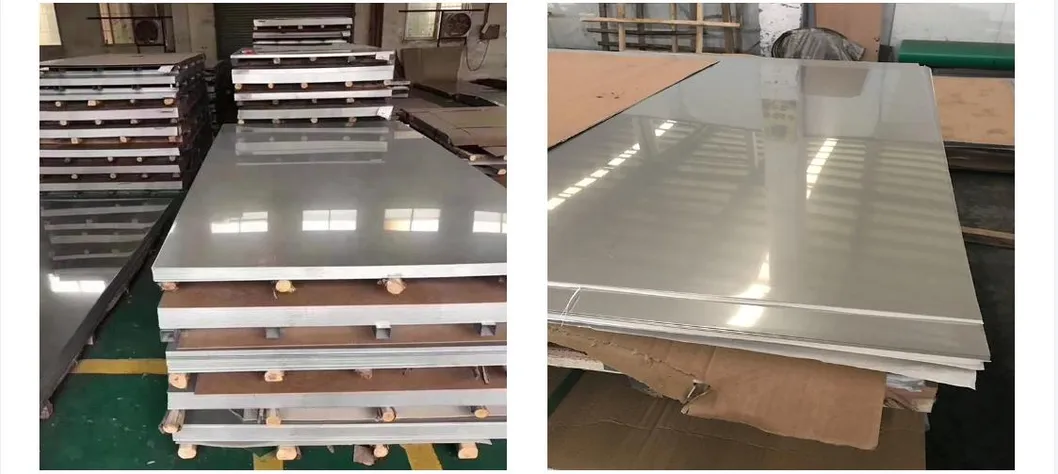

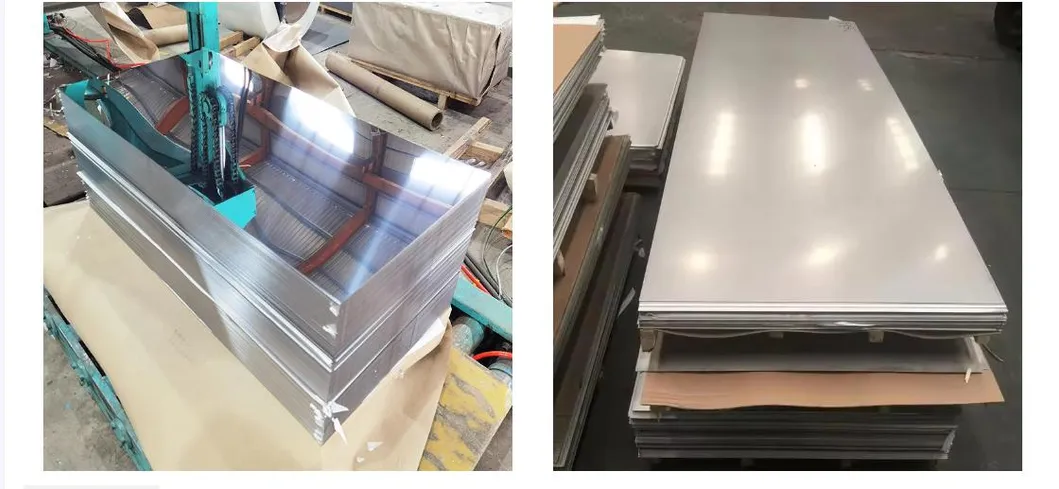

Stainless steel plate is an alloy material made from iron with the addition of chromium, nickel and other elements. According to different compositions and uses, stainless steel sheet can be divided into many different types.
1. Chromium Stainless Steel PlateContains at least 10.5% chromium, which forms a dense chromium oxide film for corrosion prevention. Widely used in chemical, petroleum, and pharmaceutical fields due to high temperature and corrosion resistance.
2. Nickel Stainless Steel PlateFeatures high nickel content to improve corrosion resistance and toughness. Commonly used in chemical and marine equipment manufacturing.
3. Titanium Stainless Steel PlateContains titanium to enhance strength, wear resistance, and high temperature performance. Widely used in aerospace and shipbuilding.
4. Aluminium Alloy Stainless Steel PlateIncorporates aluminium to improve strength and wear resistance. Commonly used in automotive manufacturing and construction.
5. Titanium Composite Stainless Steel PlateA composite material combining the corrosion resistance of stainless steel with the strength of titanium metal, offering superior durability for shipbuilding and chemical equipment.
| Typical Chemical Composition (%) | 304 | 304L | 310s | 321 |
|---|---|---|---|---|
| C | 0-0.07 | 0-0.03 | 0.8 | 0.08 |
| Mn | 0-2.0 | 0-2.0 | 2.00 | 2.00 |
| Si | 0-1 | 0-1 | 1.00 | 1.00 |
| P | 0-0.05 | 0-0.05 | 0.035 | 0.035 |
| S | 0-0.02 | 0-0.02 | 0.030 | 0.03 |
| Cr | 17.5-19.5 | 17.5-19.5 | 24.0-26.0 | 17.0-19.0 |
| Ni | 8-10.5 | 8-10.5 | 19.0-22.0 | 9.0-12.0 |
| TI | - | - | - | 5×C% |
| Fe | Balance | Balance | - | - |
| Series | Material | Specification |
|---|---|---|
| 316 Series | 316L/2B, 316L/NO.1, 316Ti, 317L | Thickness: 0.4-40 mm, Width: ≥1000 mm, Length: ≥6000 mm |
| 304 Series | 304/2B, 304/NO.1, 304L/NO.1 | Thickness: 0.4-40 mm, Width: ≥1000 mm, Length: ≥6000 mm |
| 321 Series | 321/2B, 321/NO.1 | Thickness: 0.4-60 mm, Width: ≥1000 mm, Length: ≥6000 mm |

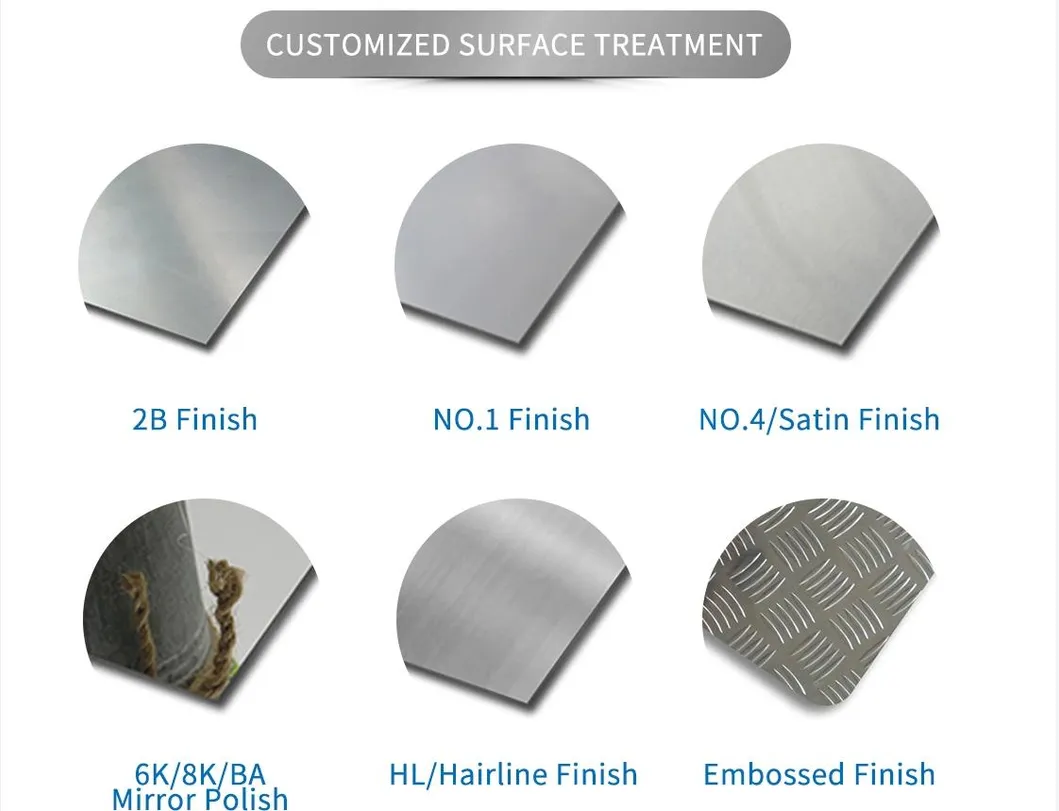

| Surface | Definition | Application |
|---|---|---|
| NO.1 | Heat treatment and pickling after hot rolling. | Chemical tanks, pipes. |
| 2B | Cold rolling followed by heat treatment and pickling for luster. | Medical, Food industry, Kitchen utensils. |
| NO.3/NO.4 | Polished with various grit abrasives (No.100-No.180). | Building construction, Kitchenware. |
| HL | Continuous polishing streaks (Hairline). | Building Construction. |
| BA | Bright heat treatment after cold rolling. | Electric equipment, Construction. |
| Mirror | Shiny, reflective finish. | Decorative building construction. |
