Perforated Metal Sheet is one of the most versatile and stylish metal products, featuring various hole sizes, a high strength-to-weight ratio, and excellent ventilation. It is widely used in industries such as pharmaceutical equipment, food and beverage machinery, harvesting machines, and refrigeration equipment.
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area |
|---|---|---|---|
| 1.14mm | 1.68mm | 0.84-0.99mm | 0.37 |
| 1.59mm | 2.38mm | 0.68-0.84mm | 0.41 |
| 3.17mm | 4.76mm | 0.68-3.23mm | 0.40 |
| 6.35mm | 9.52mm | 0.84-2.82mm | 0.40 |
| 12.70mm | 17.46mm | 0.84-4.76mm | 0.48 |

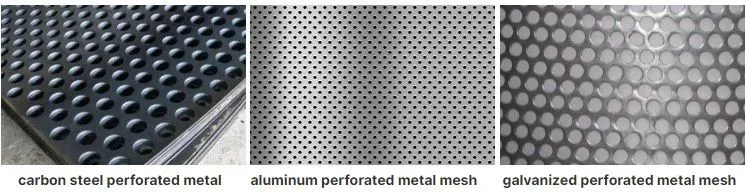

Aluminum Perforated Mesh: Light material, corrosion-resistant, fireproof, and excellent for acoustic decoration in public buildings.
Galvanized Perforated Mesh: Features flat and smooth surfaces, long service life, and superior wear resistance.

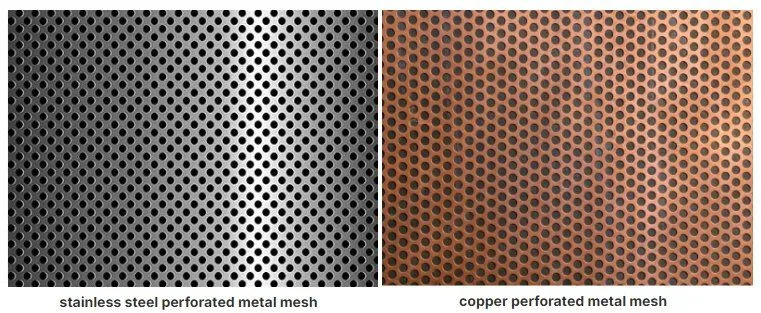

Stainless Steel Perforated Mesh: High temperature resistant, acid and alkali corrosion-resistant, ideal for medical and food industries.
Copper Punching Mesh: High tensile strength, primarily used for decorative purposes in offices and hotels.

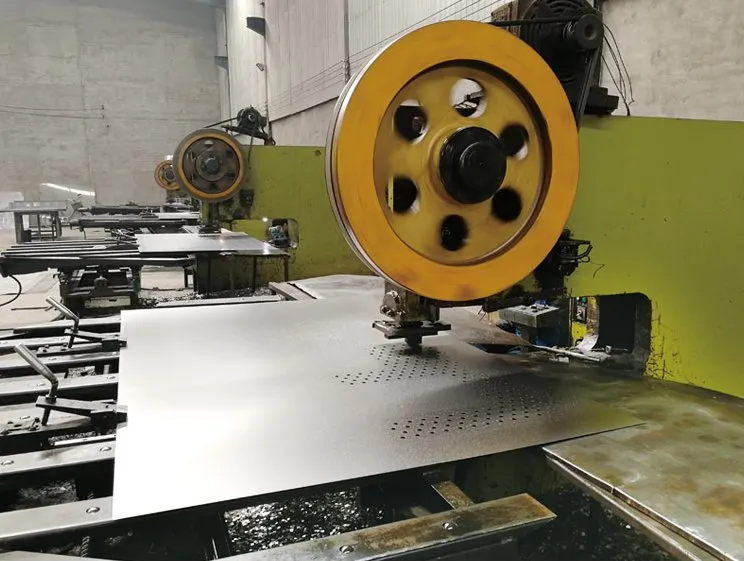

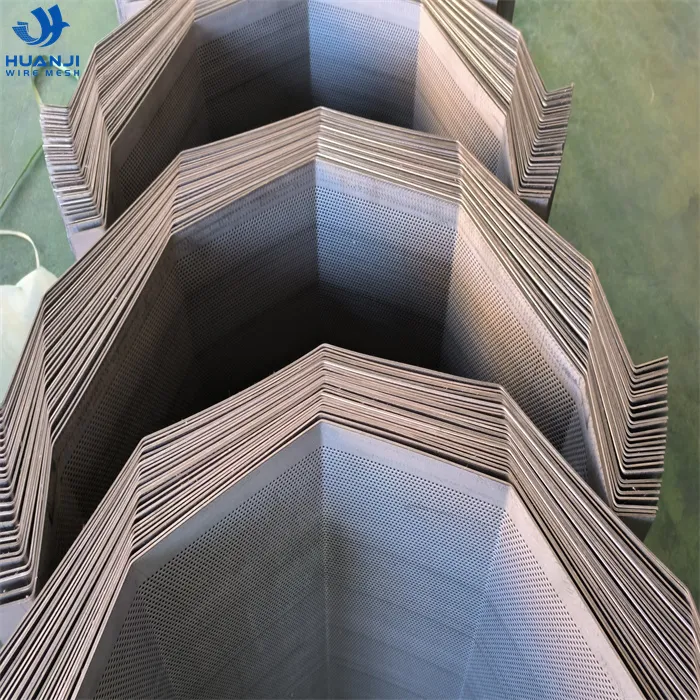

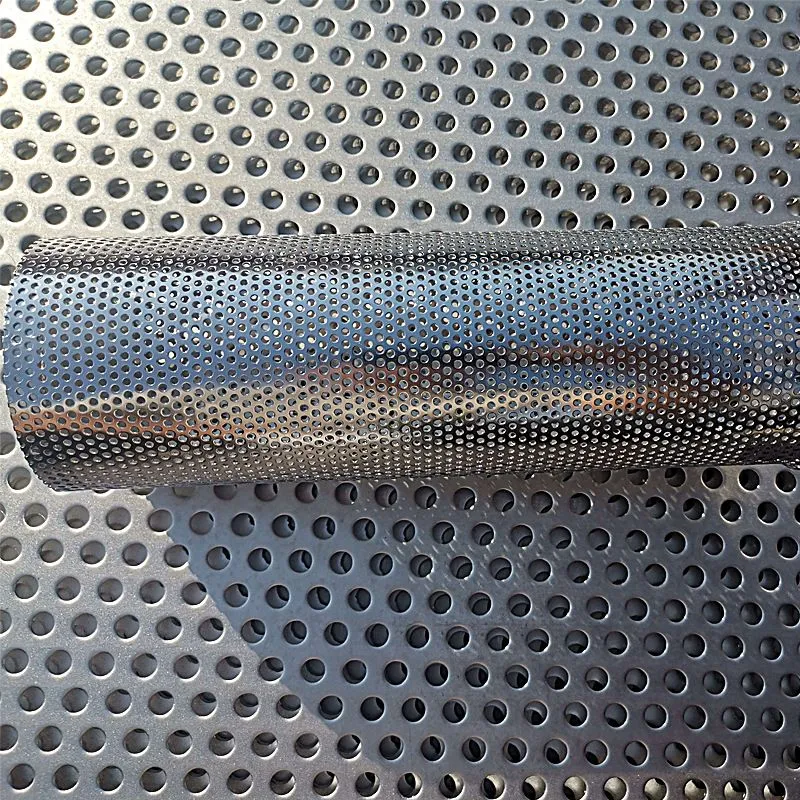

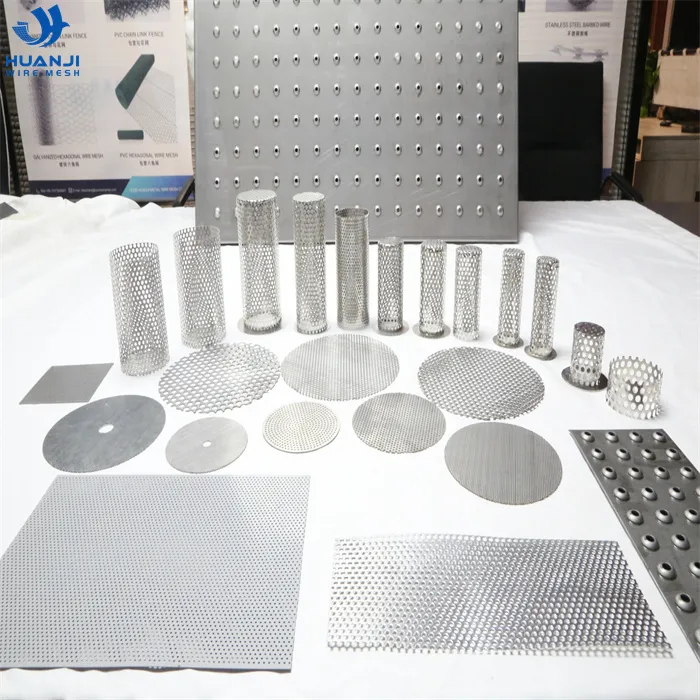

Our processing includes bending, punching, and welding to create filter cartridges, elements, and specialized anti-skid pedals.

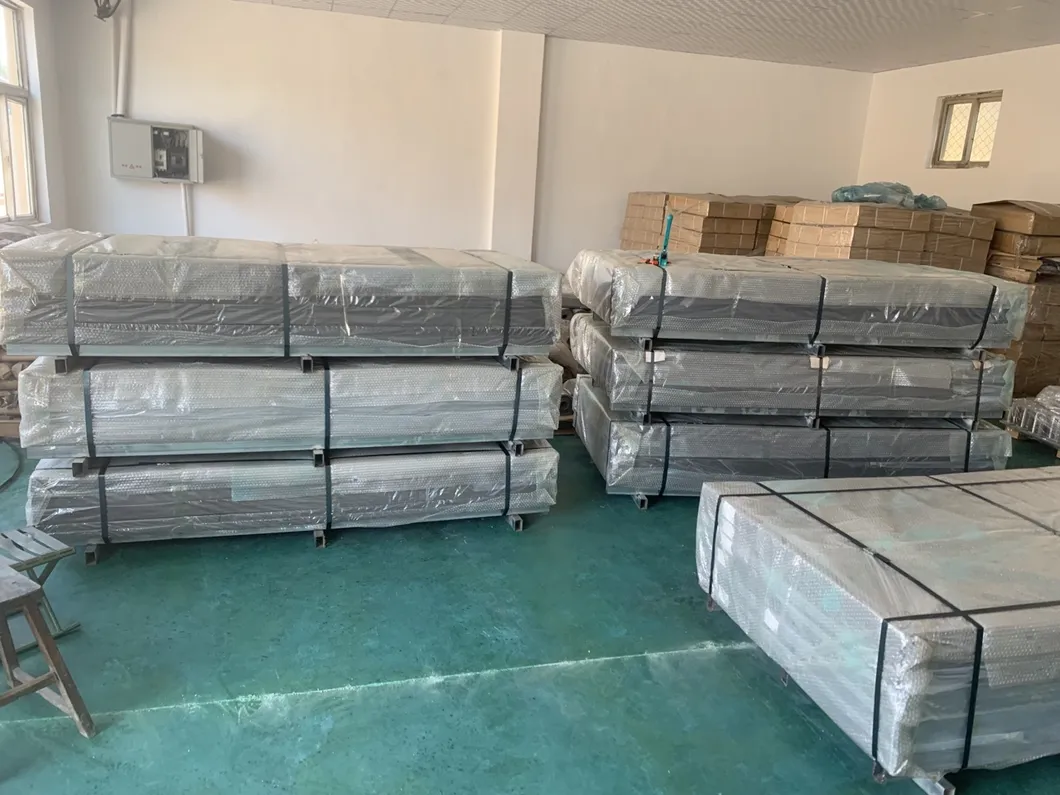

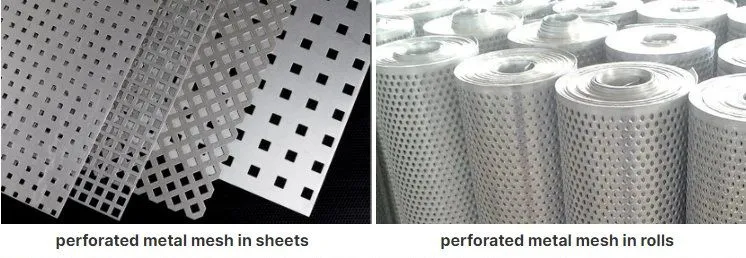

Standard packaging is typically on pallets with protective film. Wooden box packaging is also available for specific requirements.
We use a wide range of materials including stainless steel (201/304/316), galvanized steel, aluminum, copper, brass, and low-carbon iron plates.

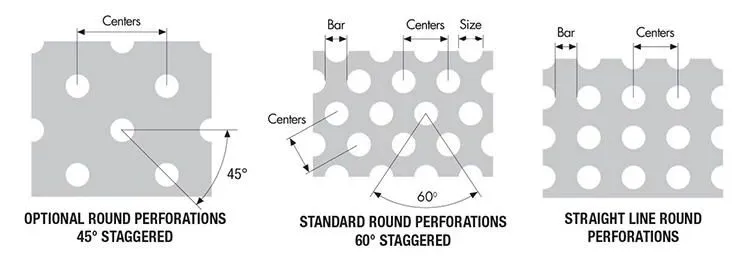

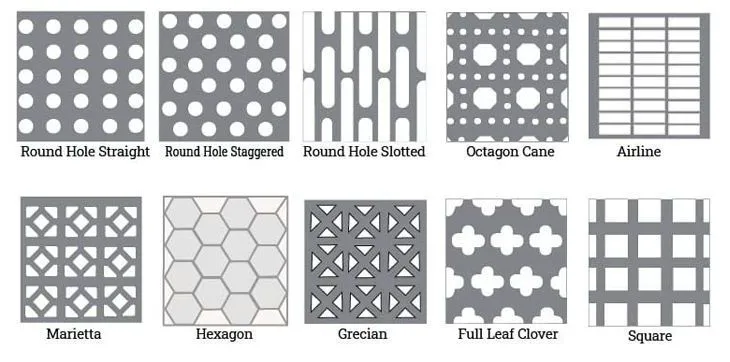

Common patterns include crocodile mouth, round, square, hexagonal, diamond, triangular, and various staggered or straight row configurations.

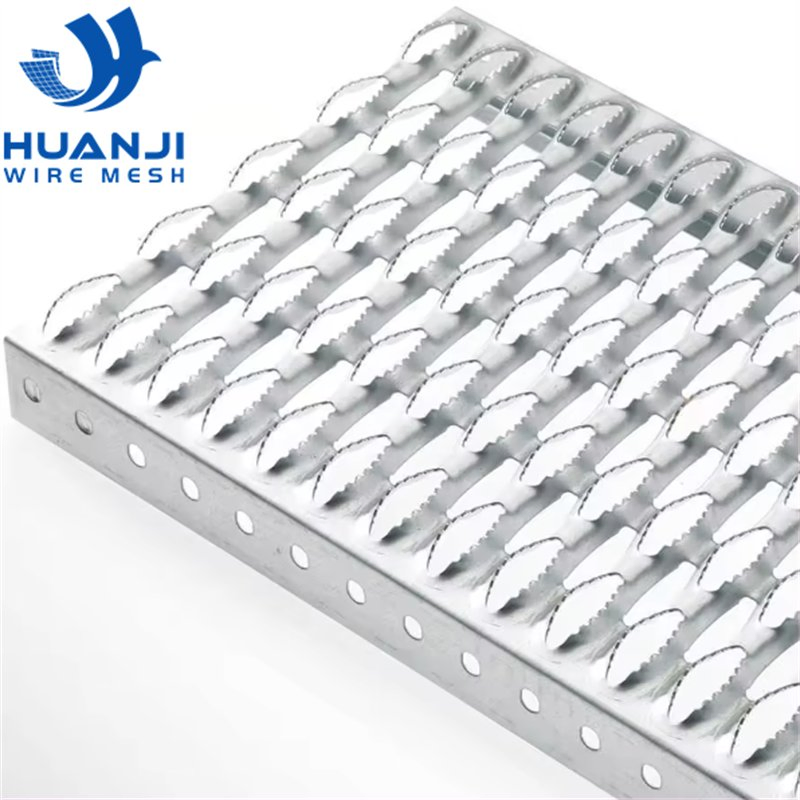

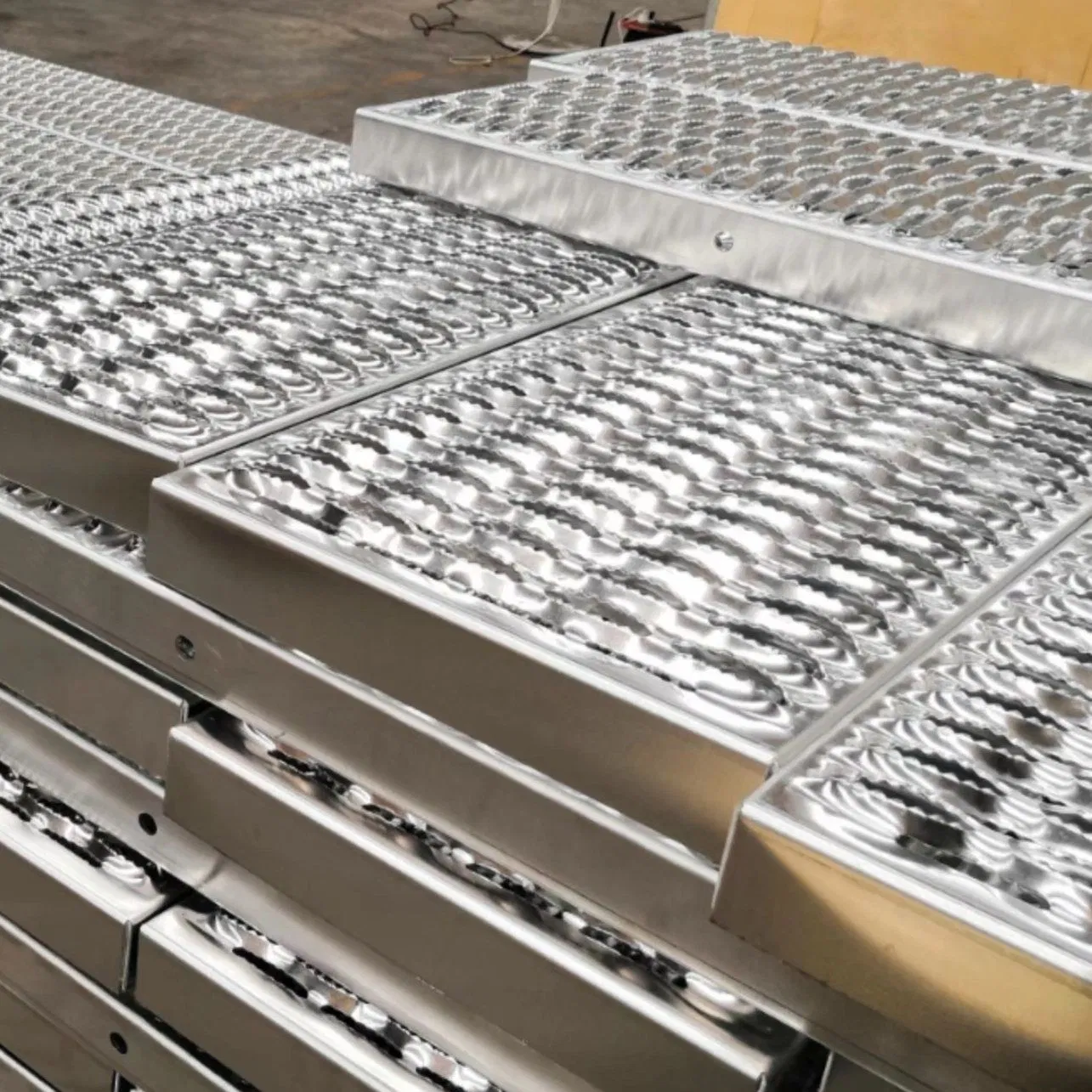

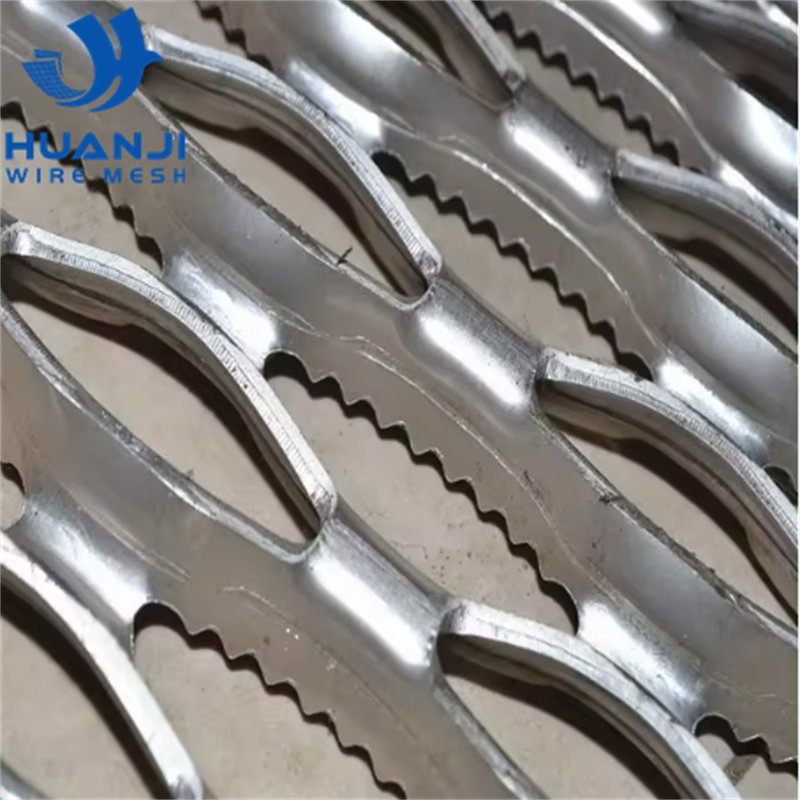

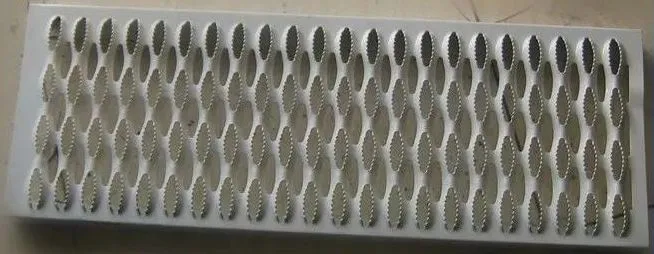

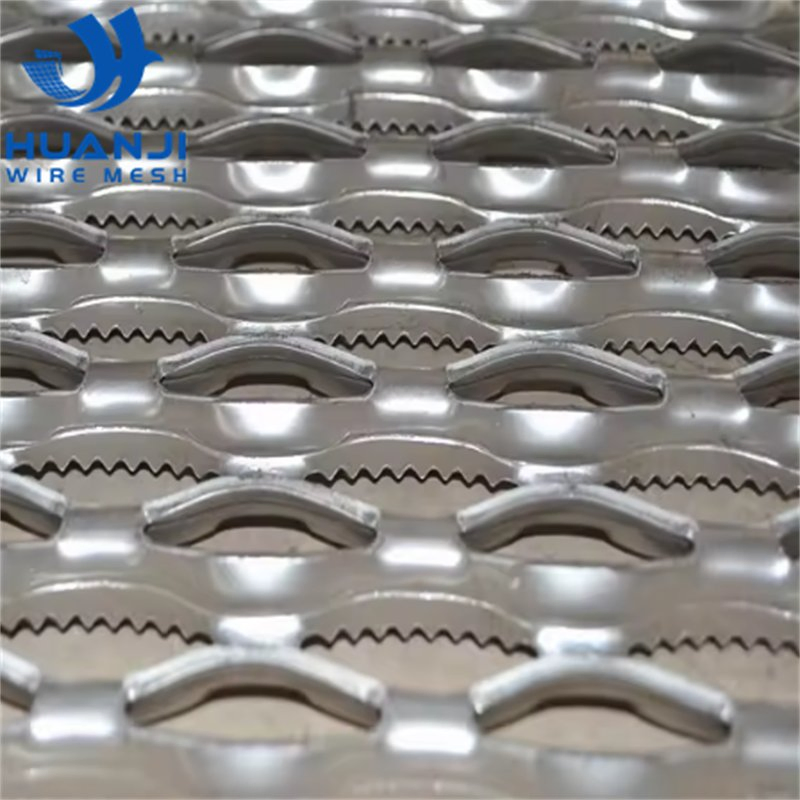

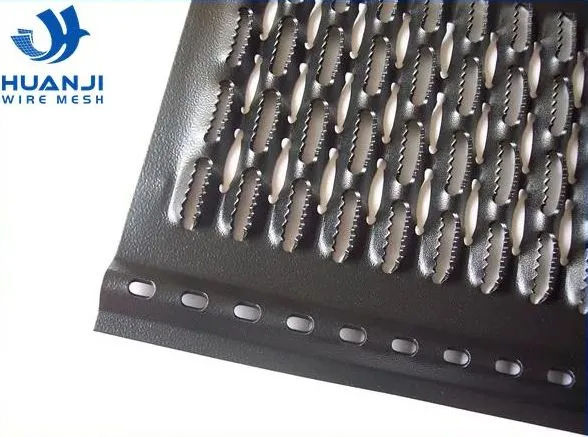

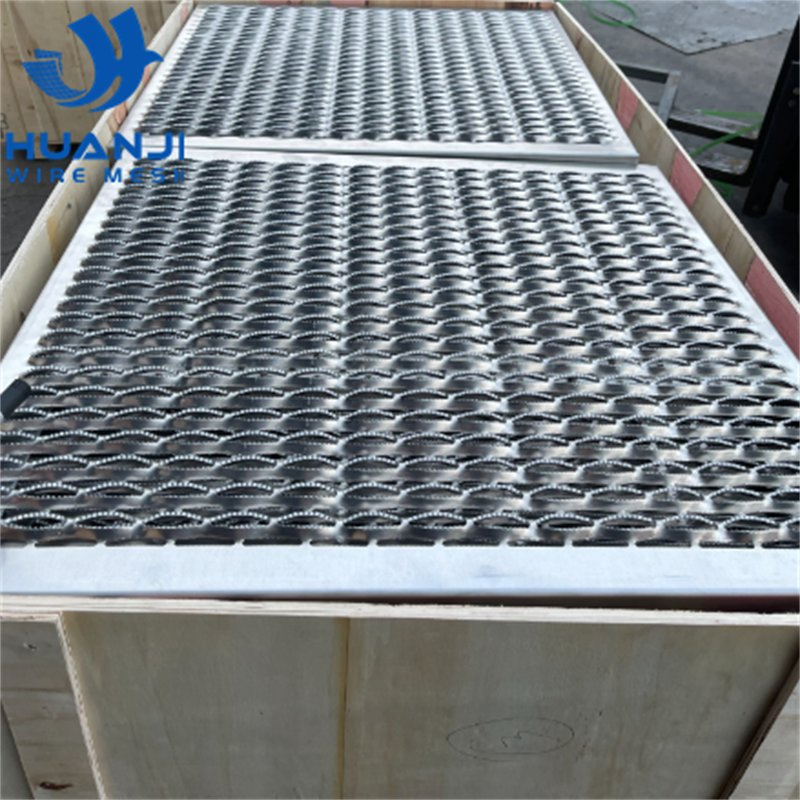

The crocodile mouth design provides extremely high friction, high load capacity, and strong pressure resistance, significantly reducing slip hazards in industrial environments.
Yes, we support customization for thicknesses ranging from 0.1mm to 12mm and various sheet dimensions like 1m x 2m or 1.22m x 2.44m.

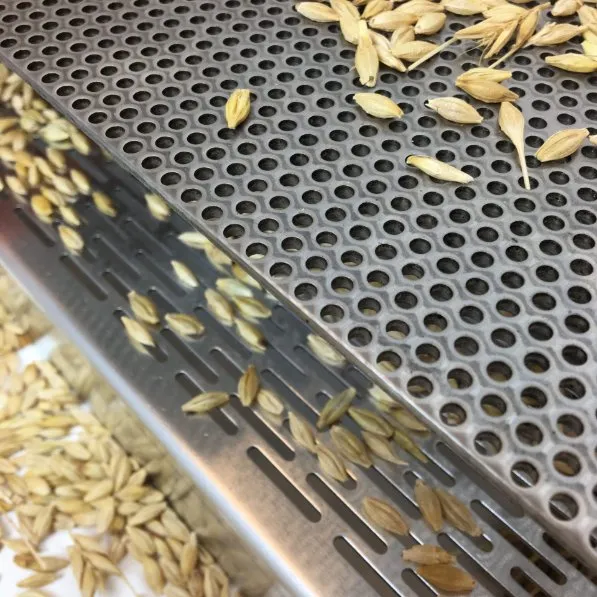

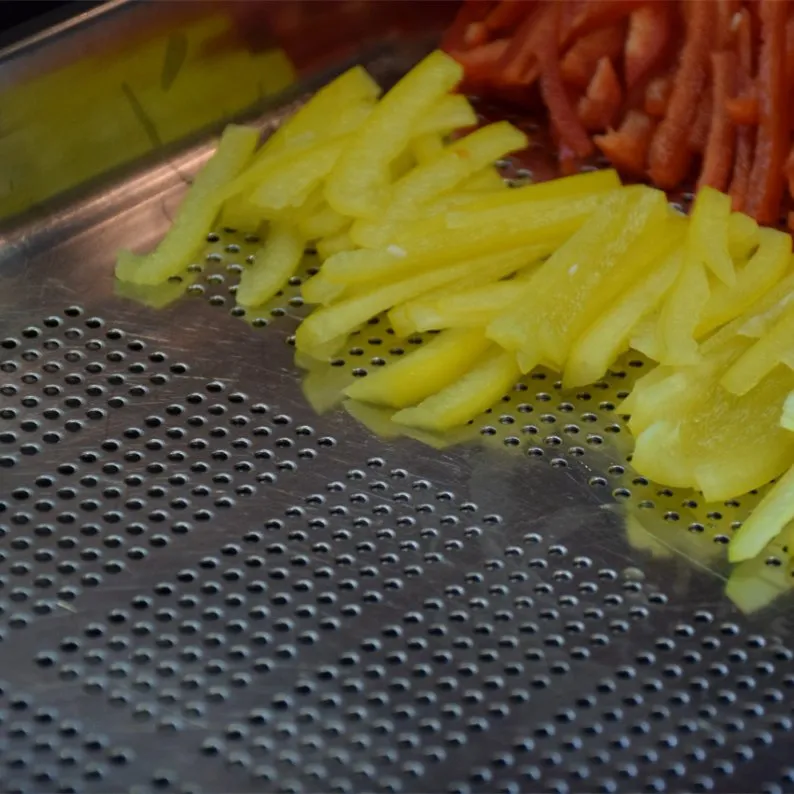

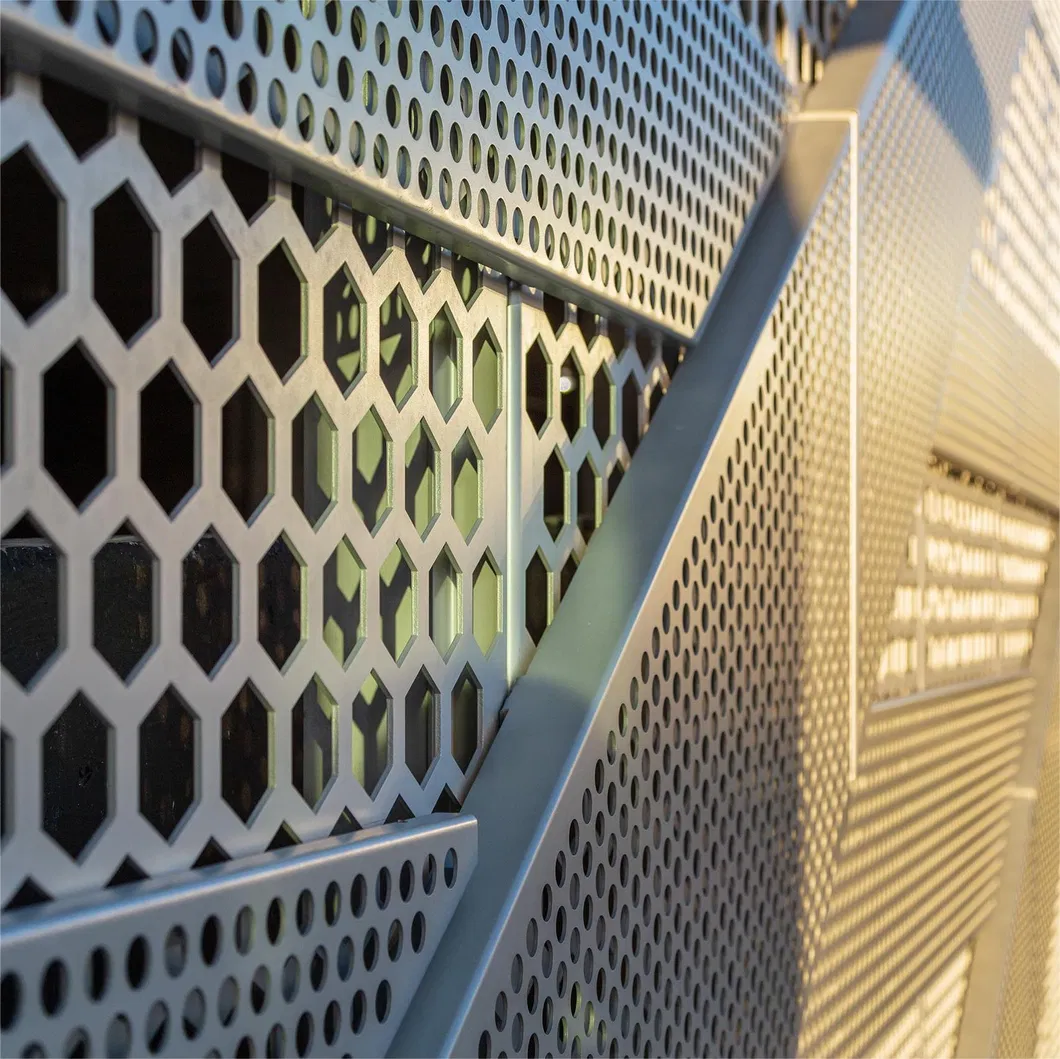

They are widely used in construction, food processing, medical equipment, noise control barriers, agricultural screening, and interior decoration.
Products are usually pallet-packed with a protective outer film. For extra security, wooden box packaging can be requested.
