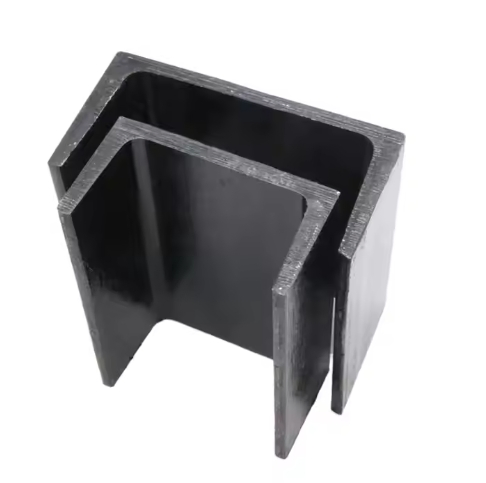

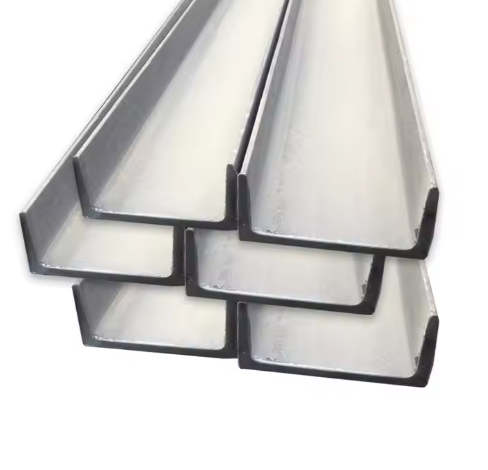

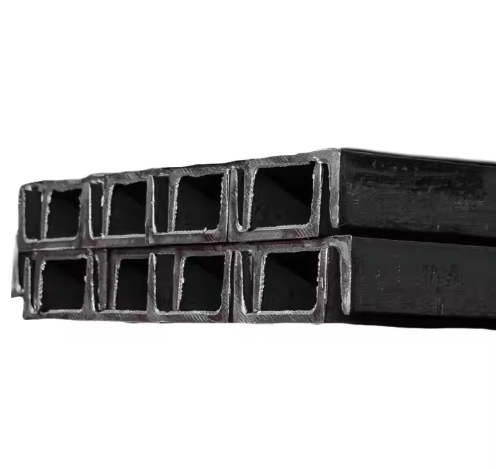

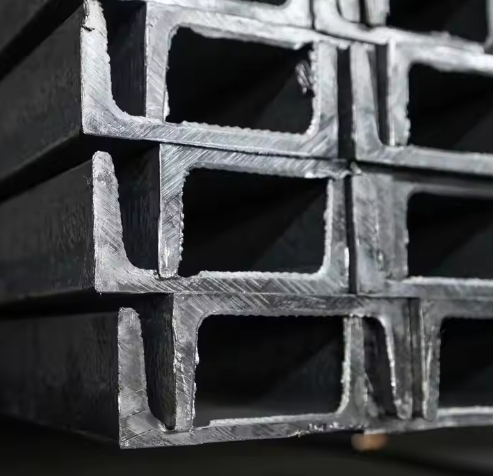

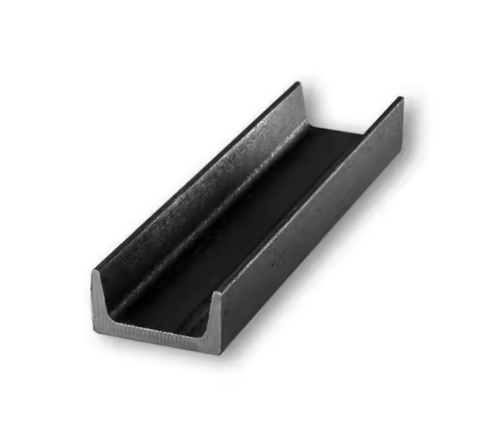

Stainless Steel SS304 U Channel

Customization: Available
Standard: GB, ASTM, JIS, AISI, DIN, BS
Shape: C Channel, Equilateral Angle Bar

Product Description

i

Basic Specifications

Name:
Hot Rolled Equal Angel Steel
Material:
Ss400/St37-2/St52/Q420/Q460/S235jr/S275jr/S355jr
Grade:
Q235
Length:
6m-12m
Surface Treatment:
Hot DIP Galvanised / Painted
Technique:
Hot Rolled
Application:
Supporting System
Certificated:
ISO9001:2008/SGS/BV
Perforated:
Is Perforated
Steel Channel Header
Product Details Drawing
D

Product Details

ProductCold Rolled S235/S235JR/S355/S355JR/ST37-2/ST52-3 purlin steel channel
Size50*37*4.5 to 400*104*14.5
Thickness4mm - 25mm
TechniqueCold Drawn/ Cold Pilfered/ Cold Rolled/ Hot Rolled/ Forged
StandardsASTM A53/A573/A36, BS EN10025, ISO630, JIS G3101, DIN17100
ProcessingGalvanizing, Painting, Cutting, Bending, Punching
ApplicationBuilding frames, industrial support, vehicle manufacturing, grandstands
PackingBundles by steel strips, woven cloth, or as per requirement
S

Steel Channel Standards

Chinese Standard (Partial List)

TypeHeight (mm)Width (mm)Thickness (mm)Weight (kg/m)
5#50374.55.438
10#100485.310.007
20#a20073722.637
40#c40010414.571.488

European & Japanese Standards

TypeSize (h*b mm)Web (D)Flange (T)Weight (kg/m)
UPE8080*404.57.47.05
UPN200200*758.511.525.3
JIS150a150*755.57.314.66
Packing and Delivery
ShippingBy Sea: Bulk (200t+), 20ft (max 5.8m), 40ft (max 11.8m)
By Air/Land: UPS/DHL/FEDEX or Truck as requested
P

Product Show

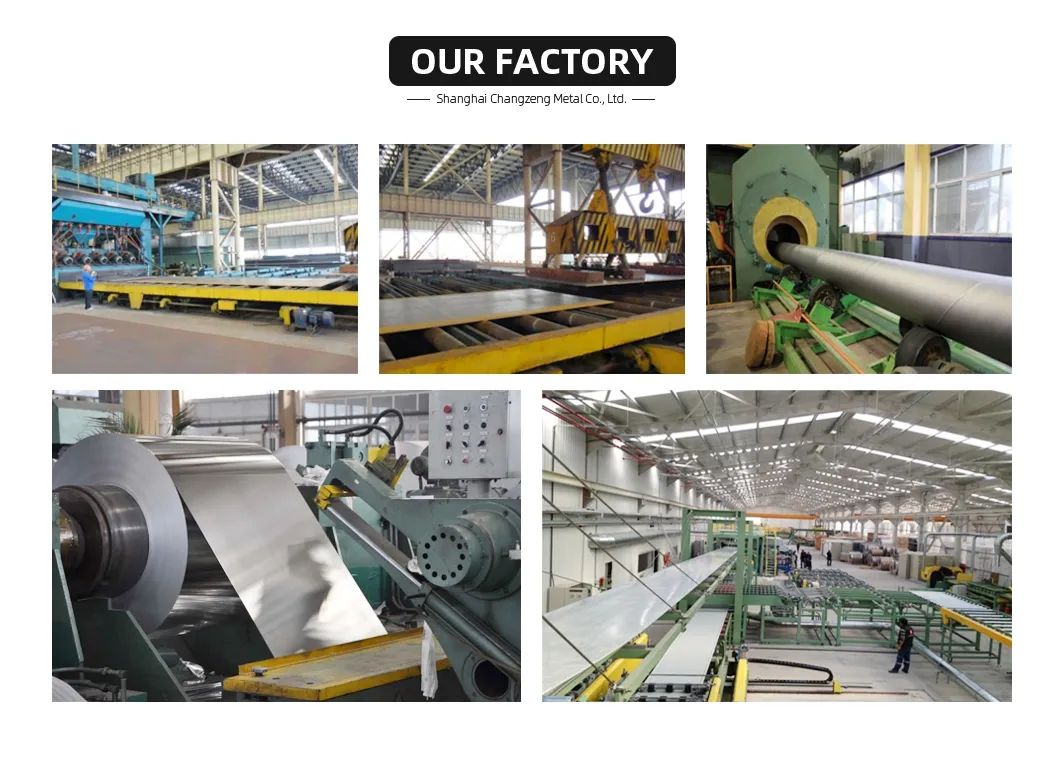

Production Line
Stockyard
Quality Control
Technical Drawing
Finished Products
Loading
Inventory
Workshop
?

Frequently Asked Questions

What materials are available for your steel channels?
We offer a wide range of materials including Carbon Steel (Q235, Q345, A36), Alloy Steel, and Stainless Steel (200, 300, and 400 series).
What international standards do your products meet?
Our products comply with various global standards including ASTM (A53, A36), BS EN (10025), JIS (G3101), ISO (630), and DIN (17100).
Can you provide additional processing services?
Yes, we provide several secondary processing services such as Hot Dip Galvanizing, Pre-galvanizing, Color Painting, Coating, Cutting, Bending, and Punching based on your requirements.
What are the typical applications for U channel steel?
It is widely used in building structures, industrial frames, support systems, vehicle manufacturing, and grandstand construction.
How are the products packed for international shipping?
Standard packing includes steel strips in bundles, woven cloth with slats, or wooden pallets. We also offer customized packing to meet specific client needs.
What documentation do you provide with the shipment?
We provide MTC (Material Test Reports) and any other requested third-party inspection certificates (SGS, CE, CQC) along with the shipping documents.
