Basic Specifications
Model NO.

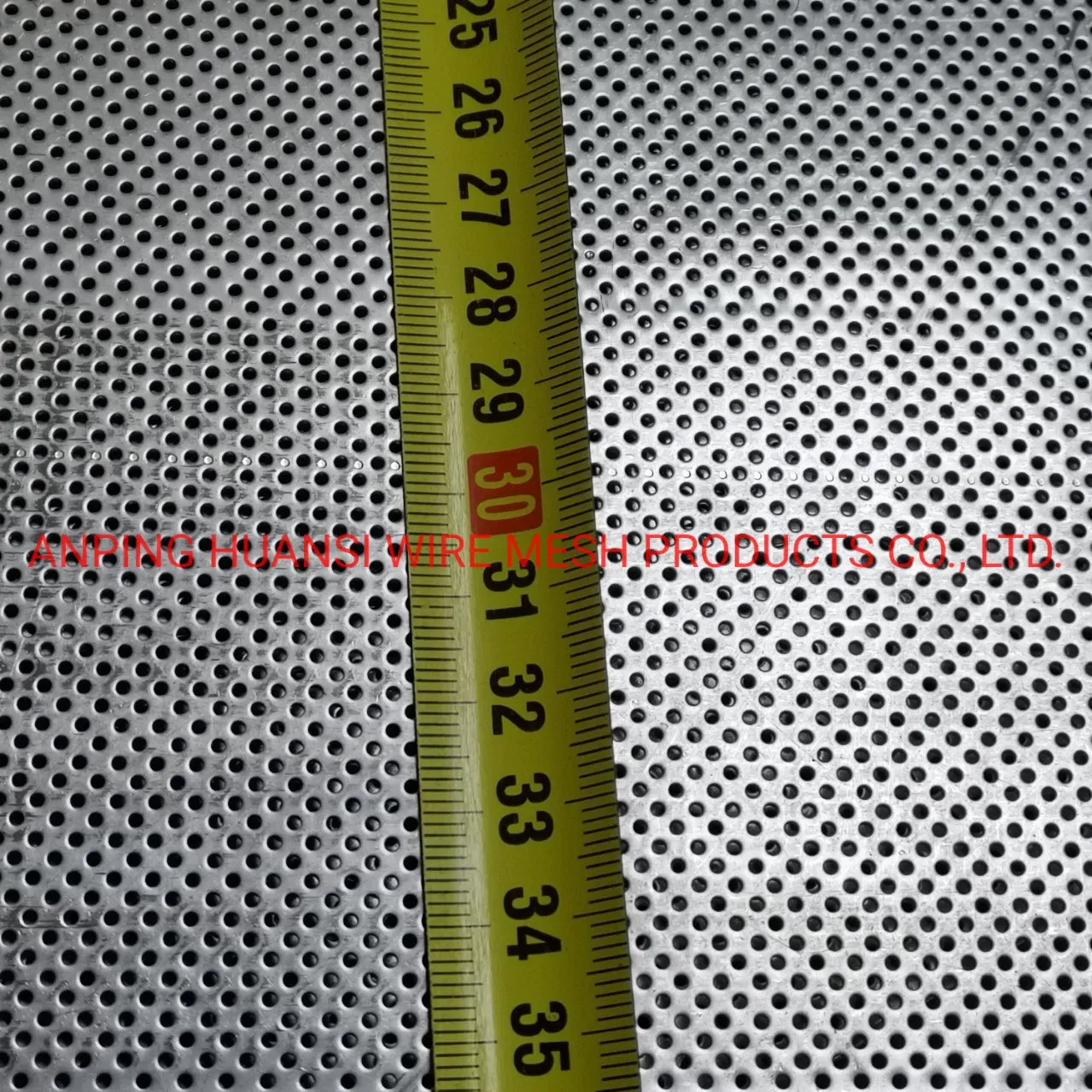

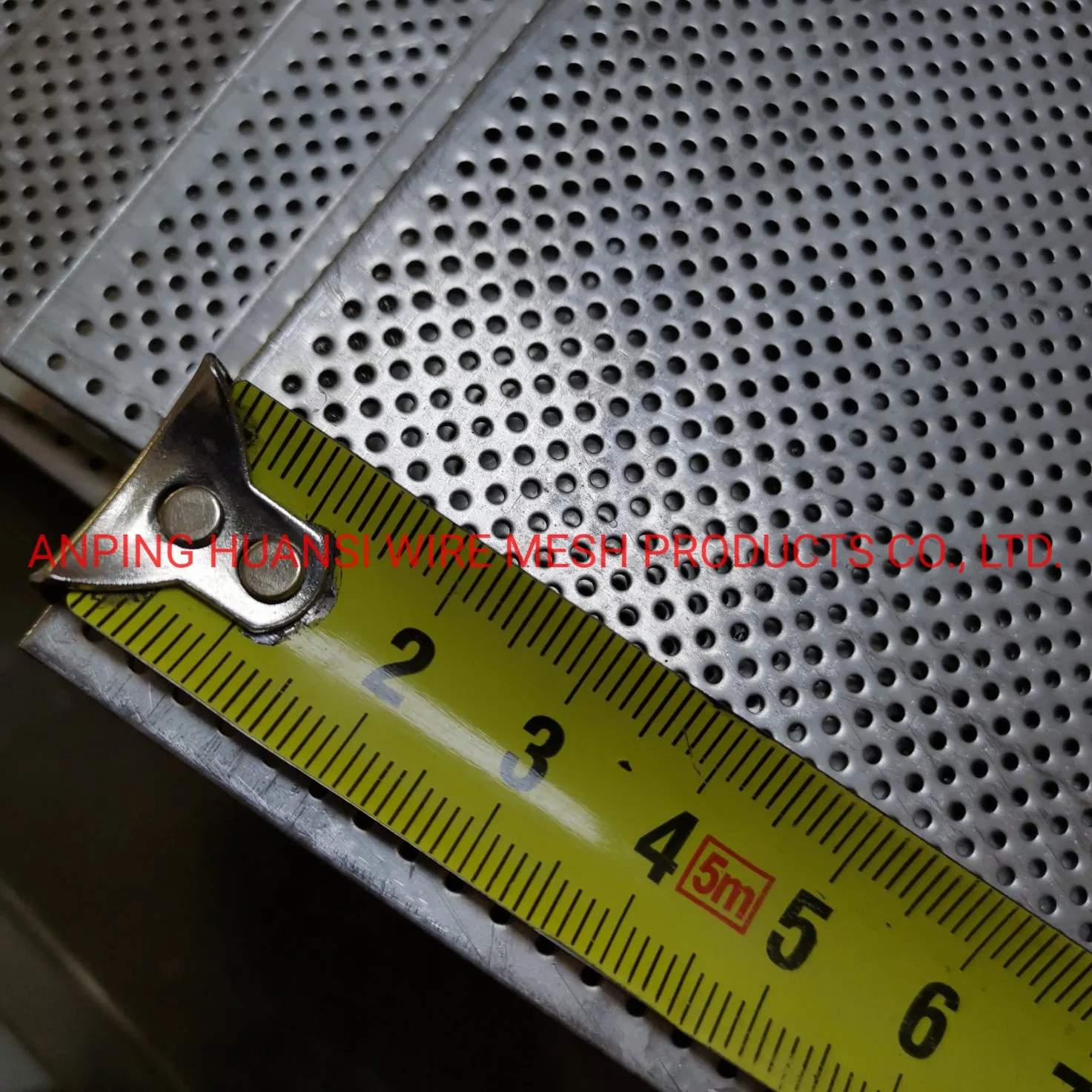

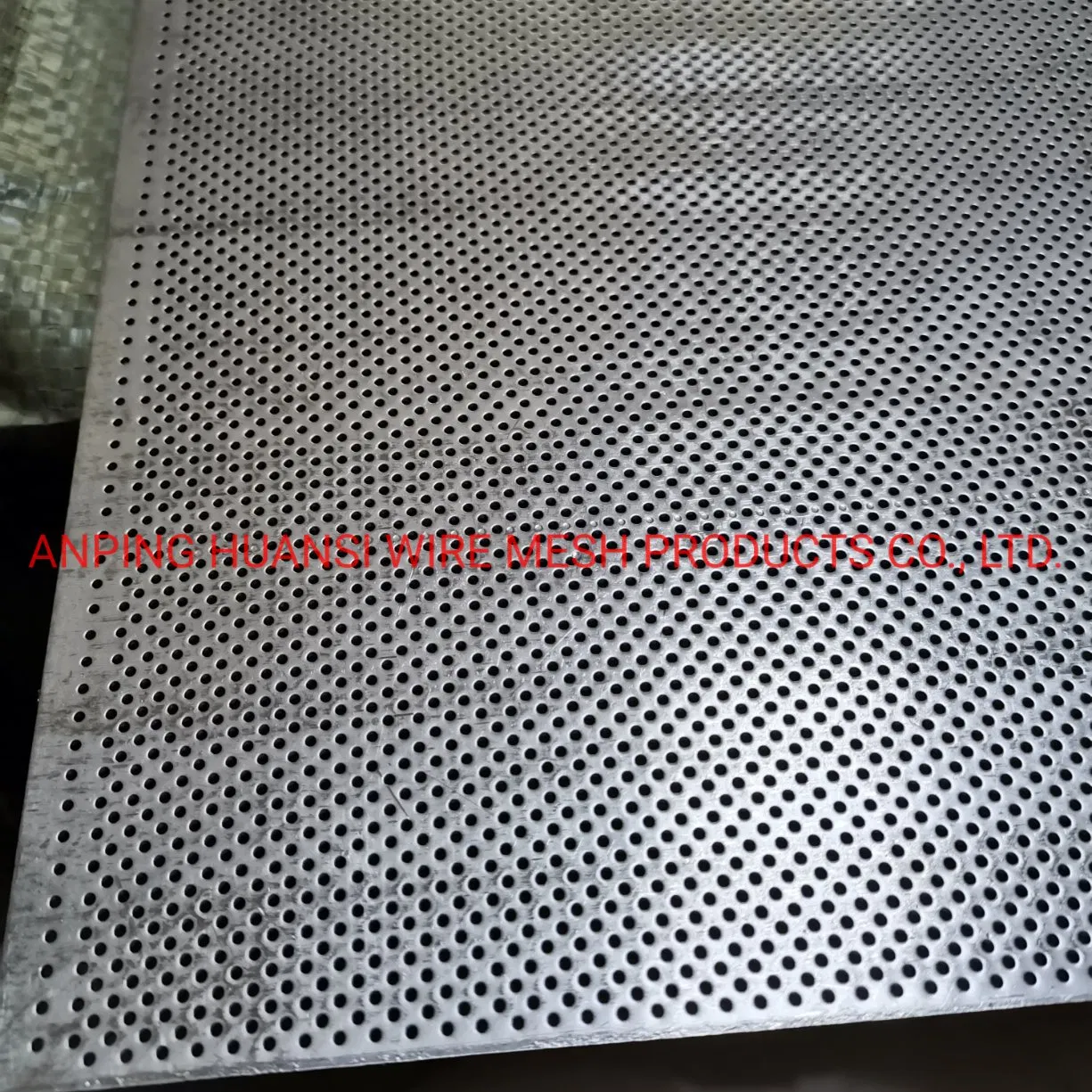

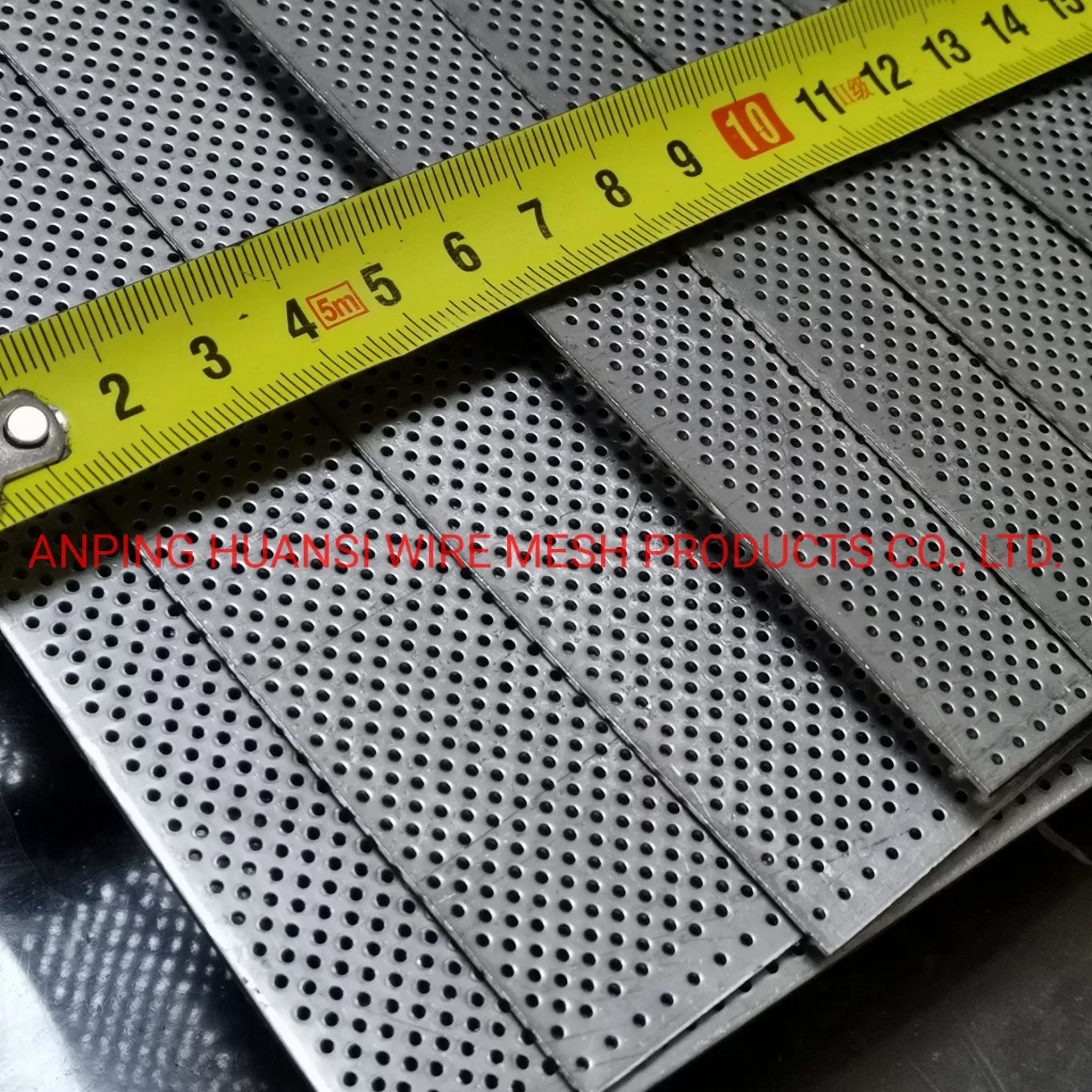

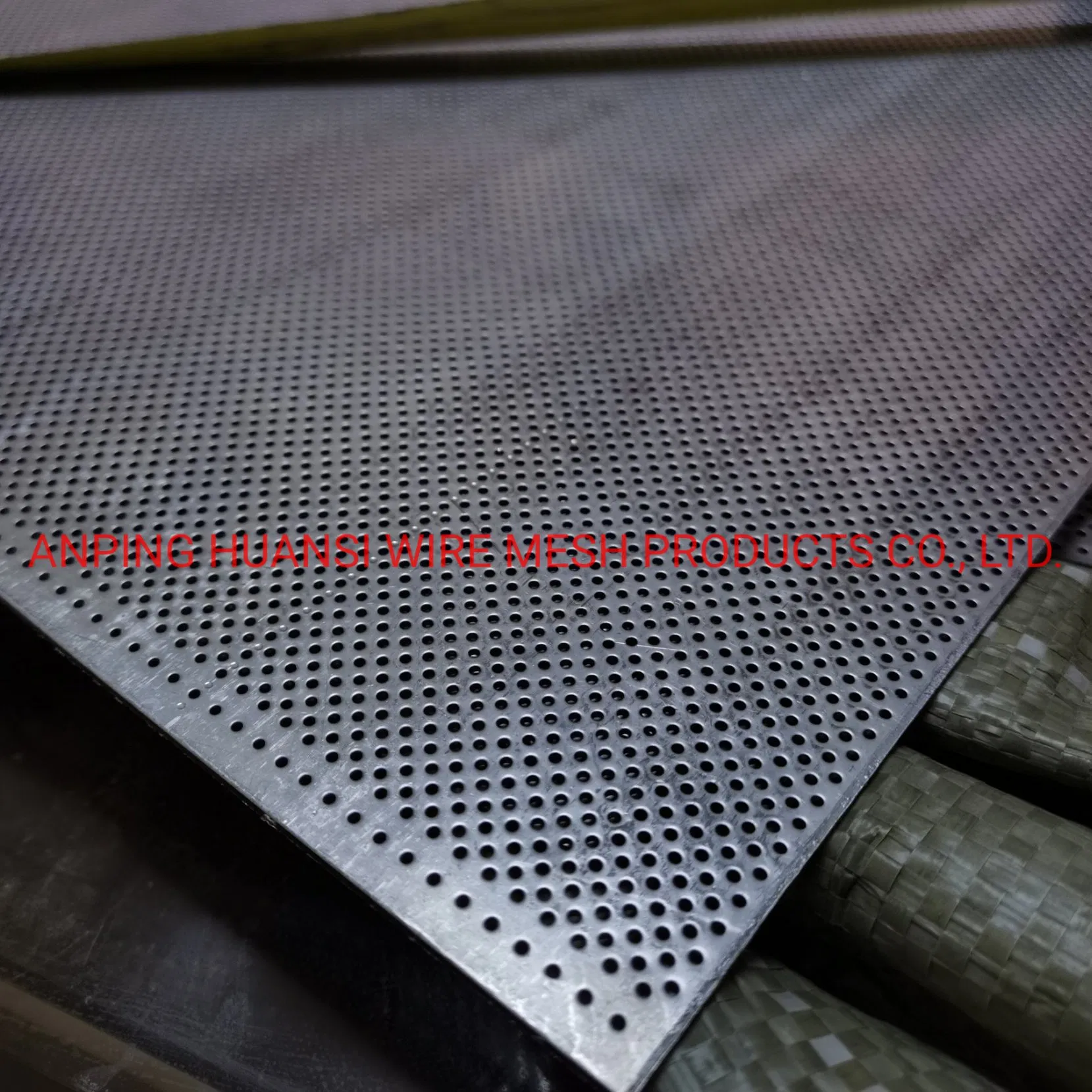

SUS316L Stainless Steel Perforated Metal Sheet
Surface Treatment
Anodic Oxidation
Material
Stainless Steel Plate, Aluminum, Black Steel, Galvanized
Hole Shape
Round, Square, Hexagon, Flower, Custom
Metal Shape
Sheet or Roll
Capacity
5000 Square Meter/ Day
Product Description
Perforated metal sheet is also known as perforated sheet, perforated plate, punched plate, perforated screen. It is sheet metal that has been mechanically stamped or punched using specialized tooling in high-speed punching machinery to create a pattern of holes, slots, or decorative shapes.
■Materials: Stainless steel plate, galvanized plate, Aluminum plate, mild steel, etc.
■Thickness: 0.3mm-50mm
■Hole Size: 0.3mm-100mm
■Standard Size: 1000mmX1000mm to 1220mmX2440mm or as per customers' request.
Surface Treatment & Production
Available Surface Treatments:
Electro galvanized, Hot-dipped galvanized, PVC coated, Powder coating, Oxidation treatment, etc.
Production Process:

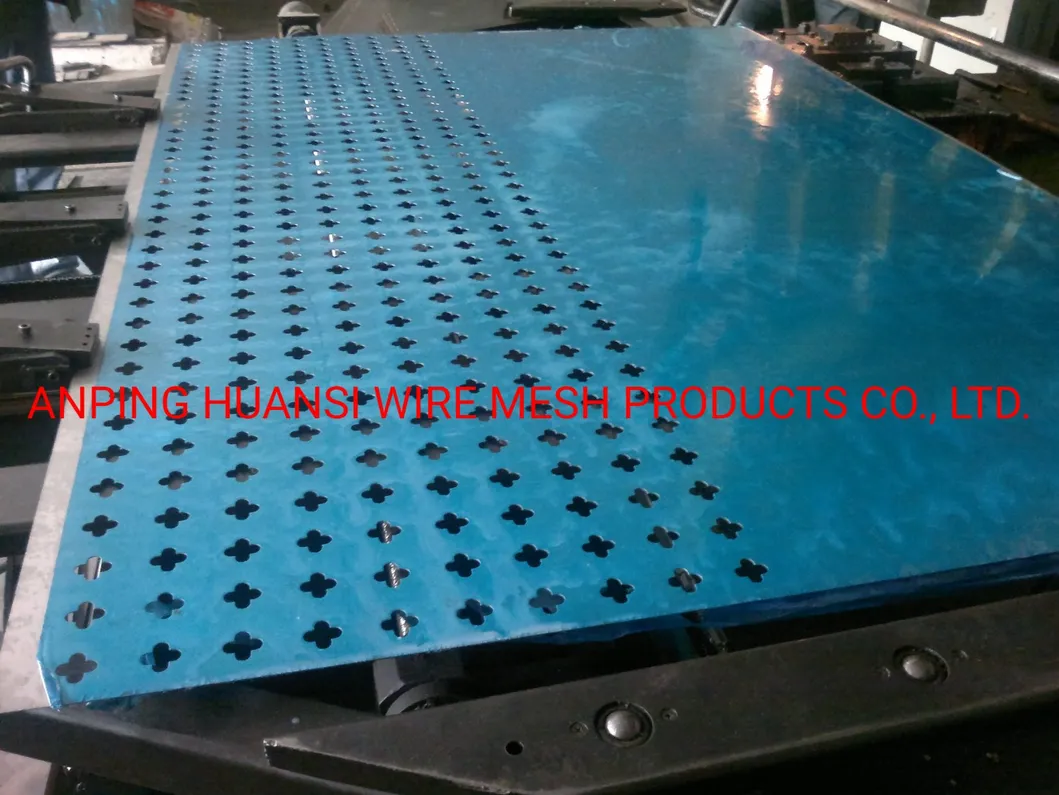

Raw Material (metal sheet, stainless steel plate) → Measure Size → Choose hole mould → Perforated with machine → Determination → Packing → Loading.

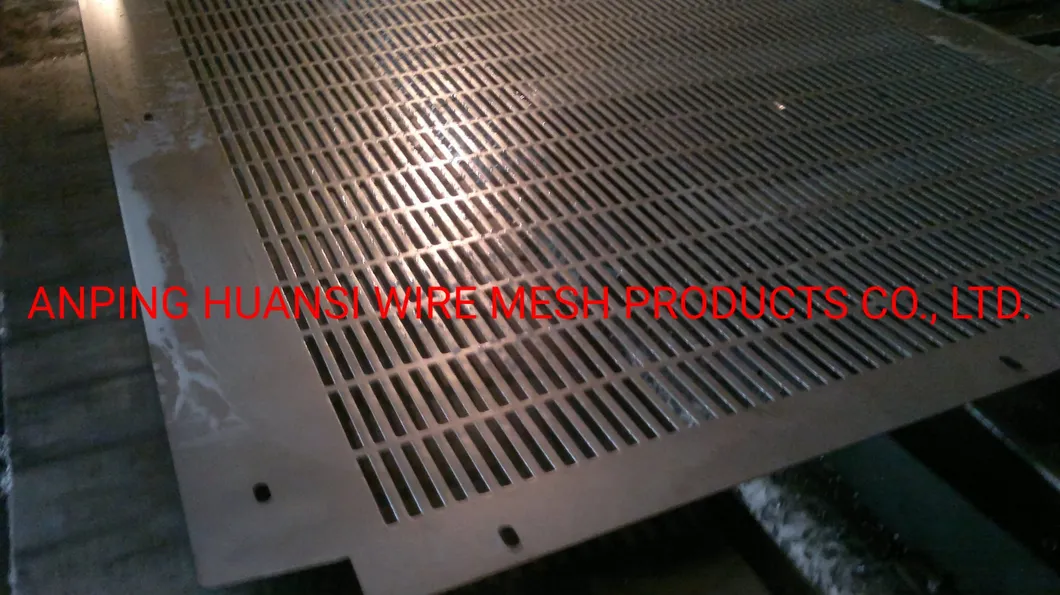

Hole Types:
Round hole, square hole, slotted hole round ends, slotted hole square ends, triangle hole, hexagonal hole, scale hole, rectangular hole, cross, diamond etc.
Features & Benefits
- Variety of gauges and materials with unique perforation patterns
- High strength-to-weight ratio and highly economical
- Functional and aesthetic appeal for modern designs
- Excellent ventilation for air, light, sound, and gases
- Provides pressure equalization, control, safety and security
- Easy to cut and fabricate for specific needs

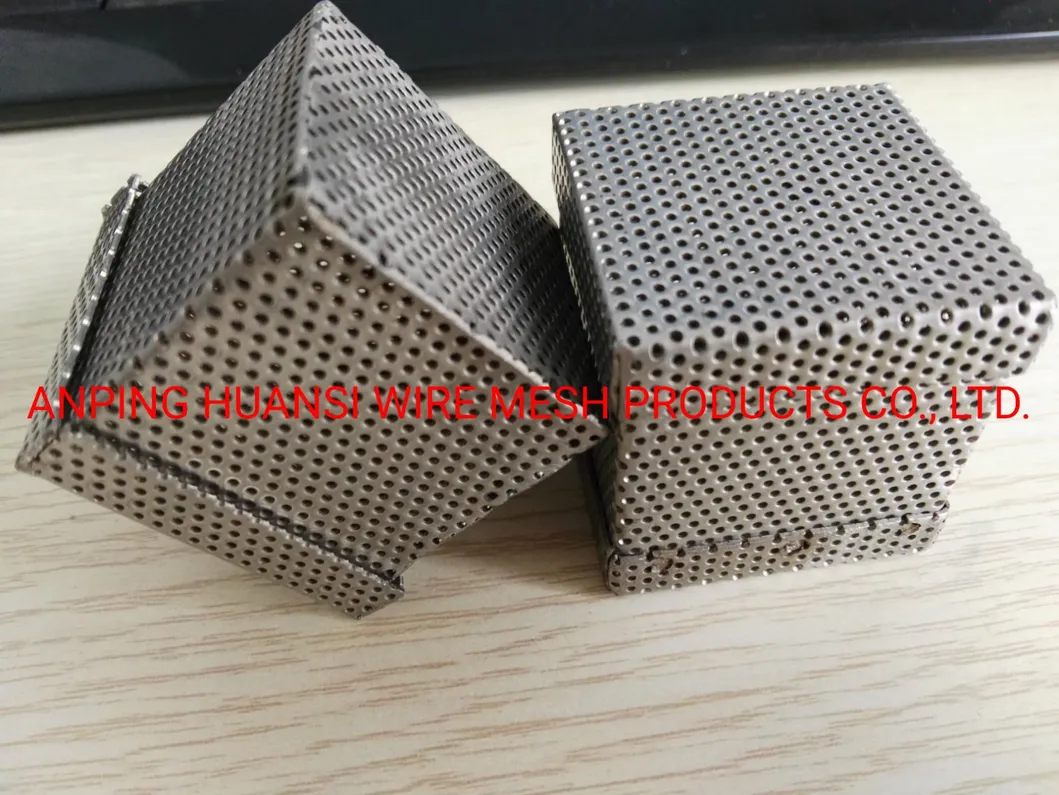

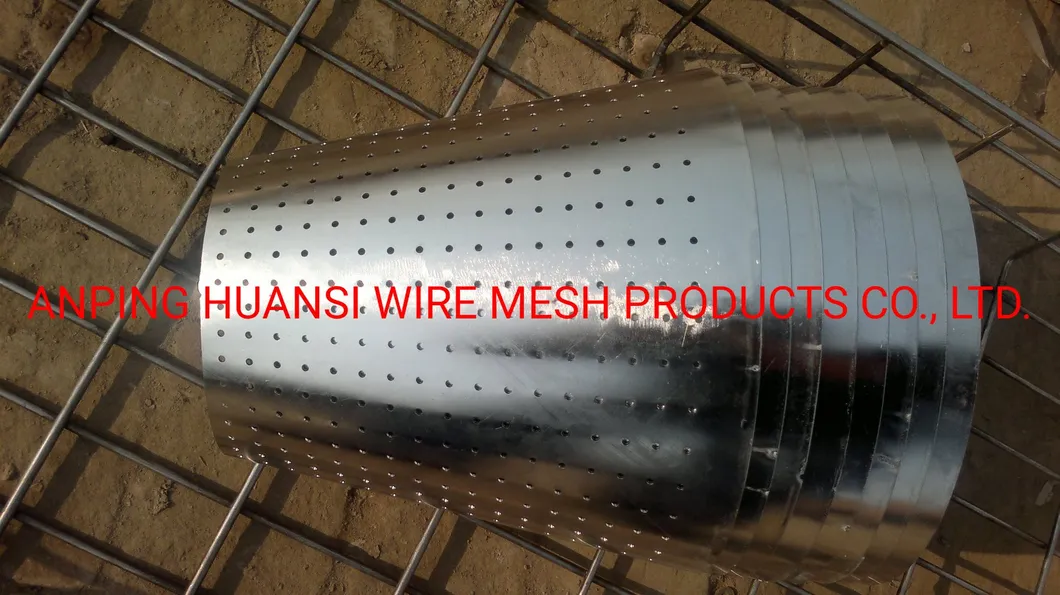

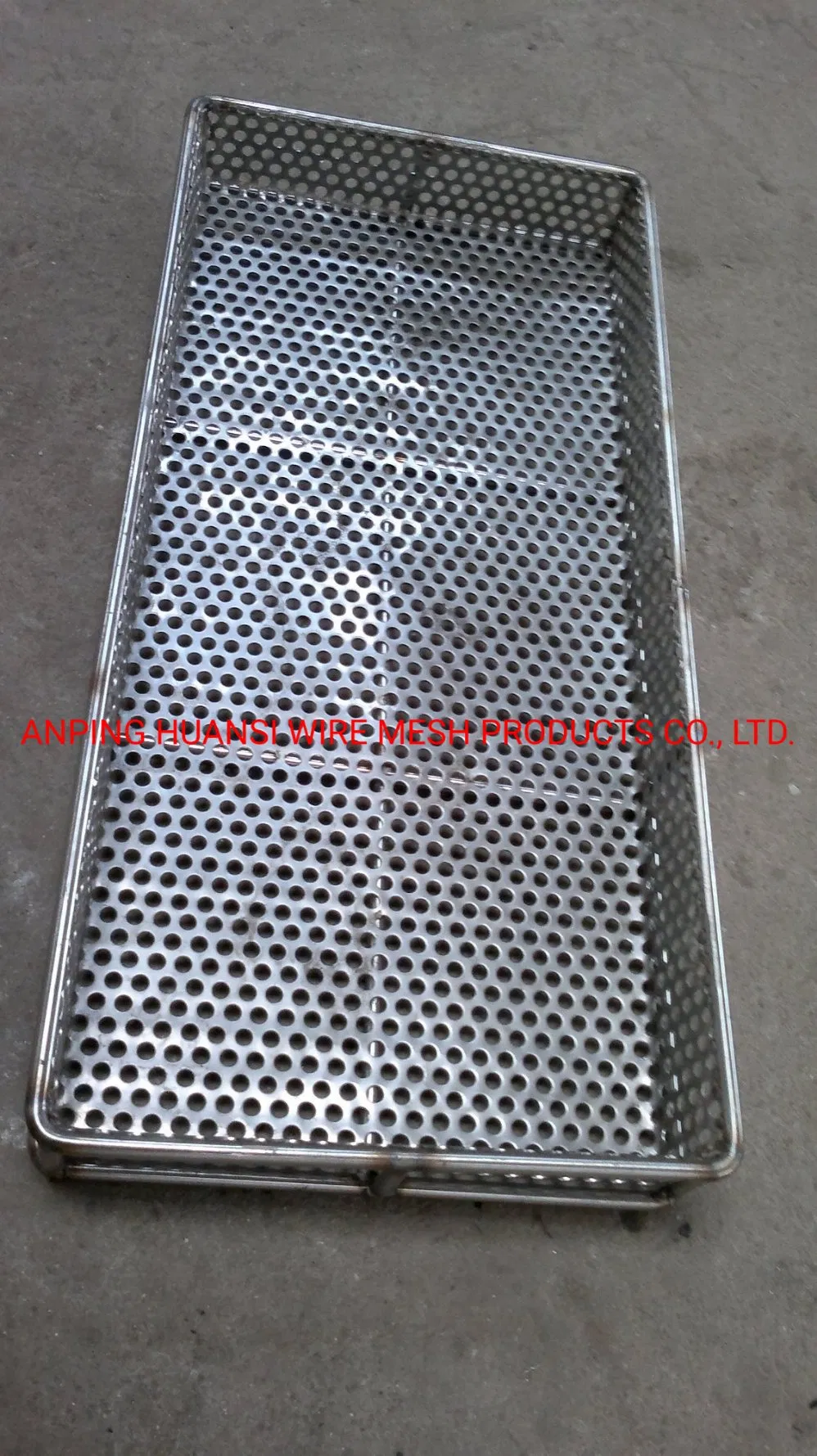

Secondary Operations

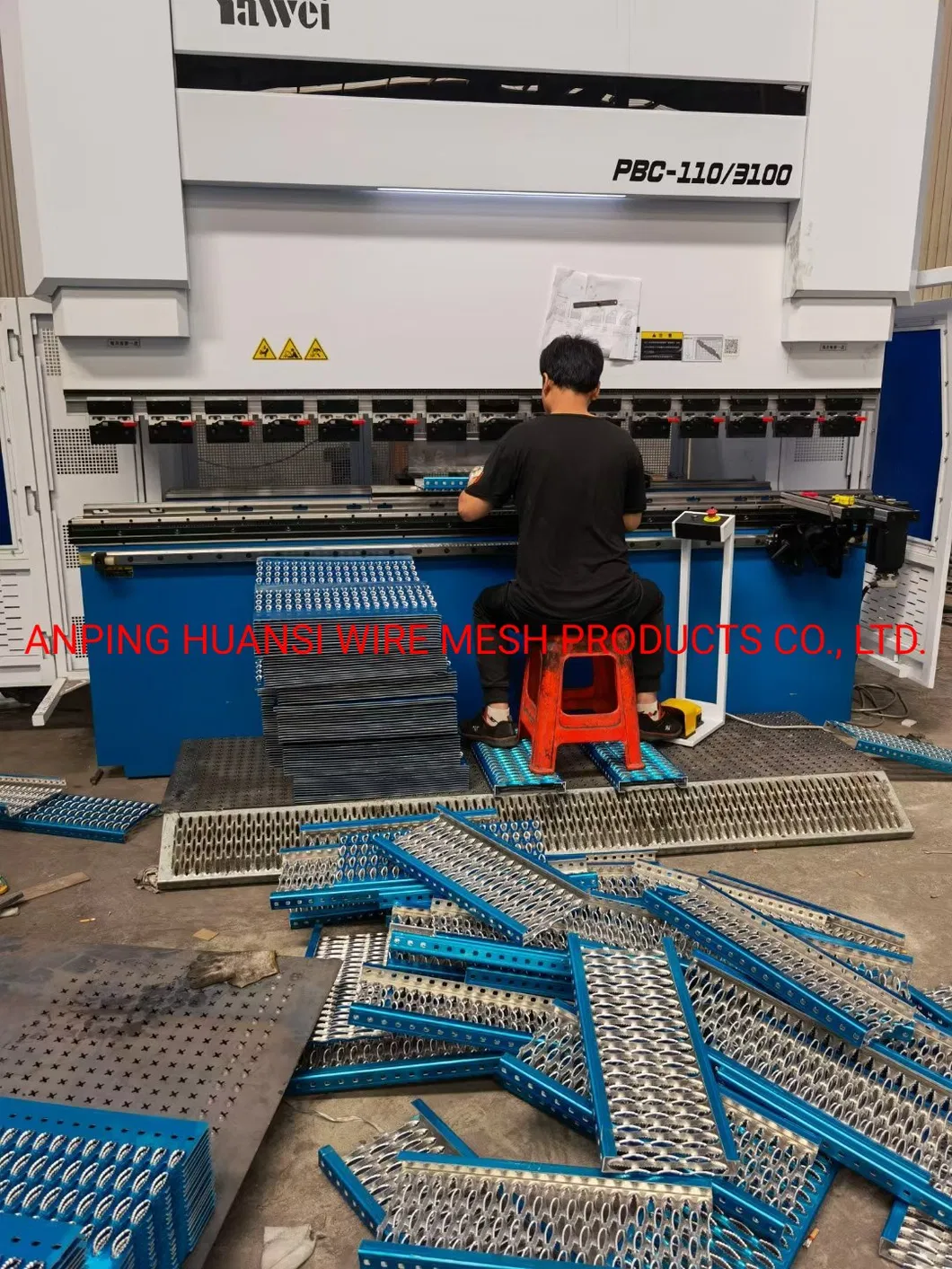

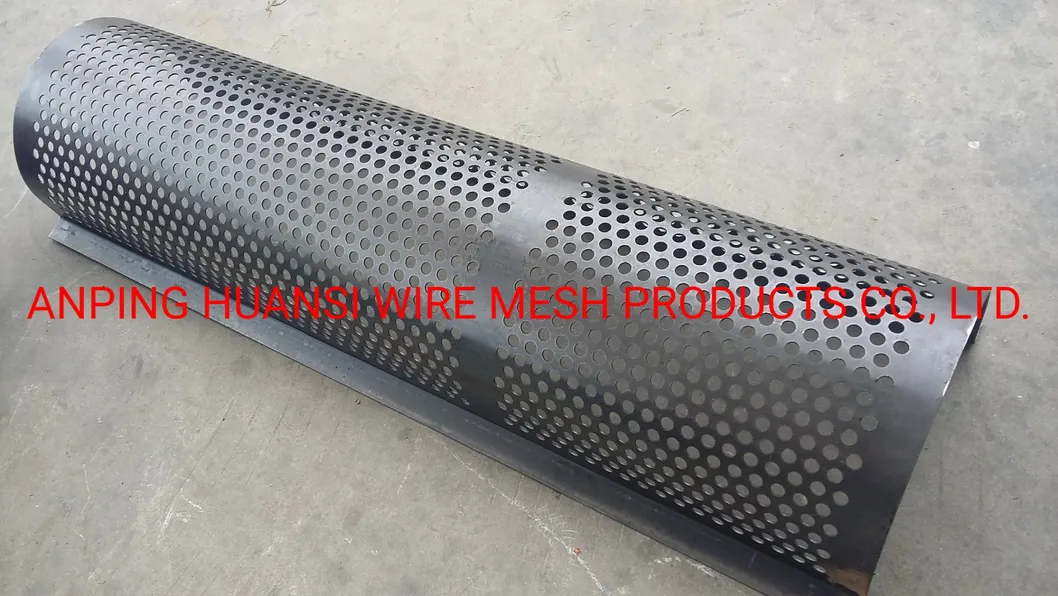

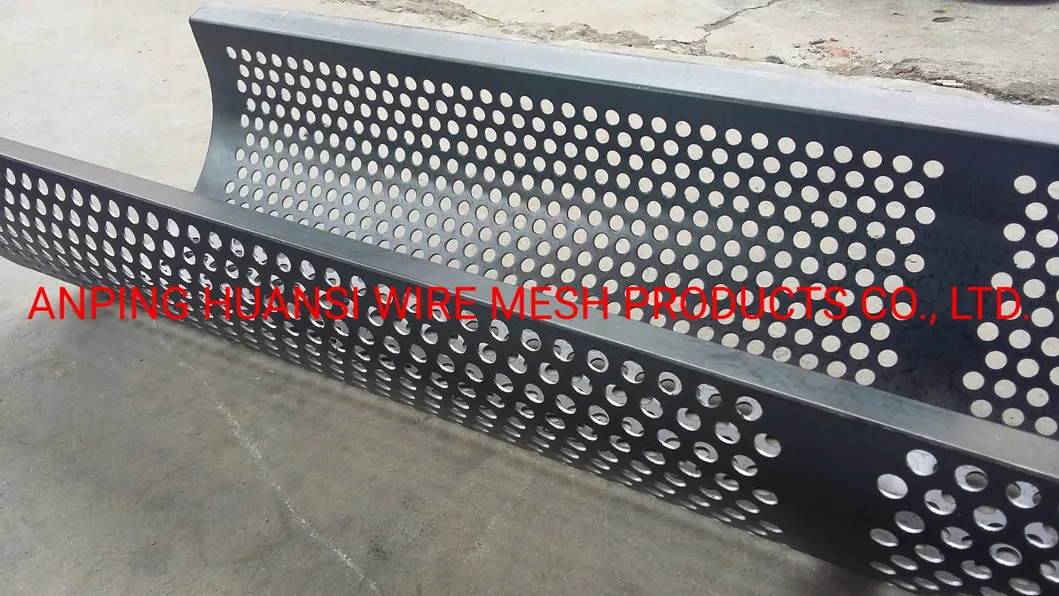

We provide comprehensive processing: Notching / Rolling / Leveling / Bending / Slitting / Forming / Stamping.
Technical Specifications
| Plate Material |
Thickness (mm) |
Hole Dia (mm) |
Pitch (mm) |
Width (m) |
Length (m) |

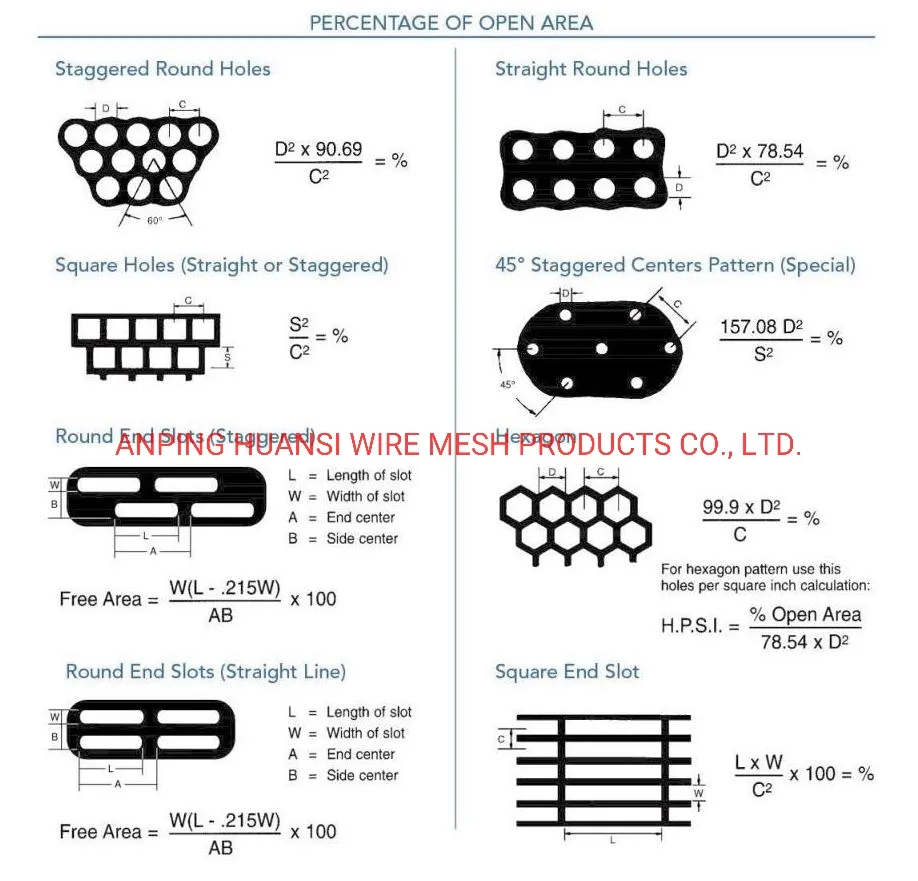

Porosity (%) |
| Rolling Plate |
0.2 |
6 |
2 |
1 |
20 |
44 |
| 0.35 |
5 |
4 |
1 |
20 |
24 |
| 0.45 |
6 |
3 |
1 |
20 |
35 |
| 0.8 |
3 |
3 |
1 |
20 |
19.6 |
| Flat Plate |
0.5 |
1 |
1 |
1 |
2 |
19.6 |
| 1.5 |
5 |
2 |
1 |
2 |
35.39 |
| Stainless Steel |
1.0 |
2 |
2 |
1 |
2 |
19.6 |
| Aluminum Plate |
3.0 |
4 |
16 |
1 |
2 |
19.6 |
Frequently Asked Questions
What materials are available for perforated metal sheets?
We offer stainless steel, galvanized steel, aluminum, black steel, and other mild steel options.
Can the hole shapes and sizes be customized?
Yes, we can produce round, square, hexagonal, slotted, and decorative shapes with hole sizes ranging from 0.3mm to 100mm.
What is the thickness range for these sheets?
Our production capability covers thicknesses from 0.3mm up to 50mm depending on the material and application.
What industries use perforated metal?

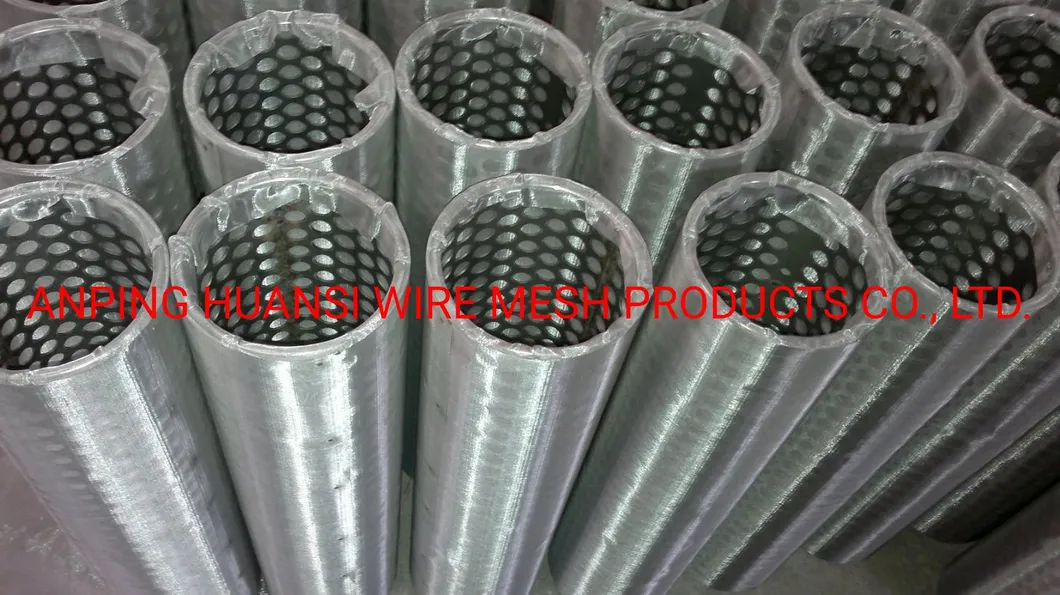

It is widely used in architecture, chemical processing, food and beverage, filtration, mining, and automotive industries.
Do you offer secondary processing services?
Yes, we provide notching, rolling, leveling, bending, slitting, and forming to meet specific project requirements.
What are the common surface treatments?
Options include electro-galvanizing, hot-dip galvanizing, PVC coating, powder coating, and anodic oxidation.
