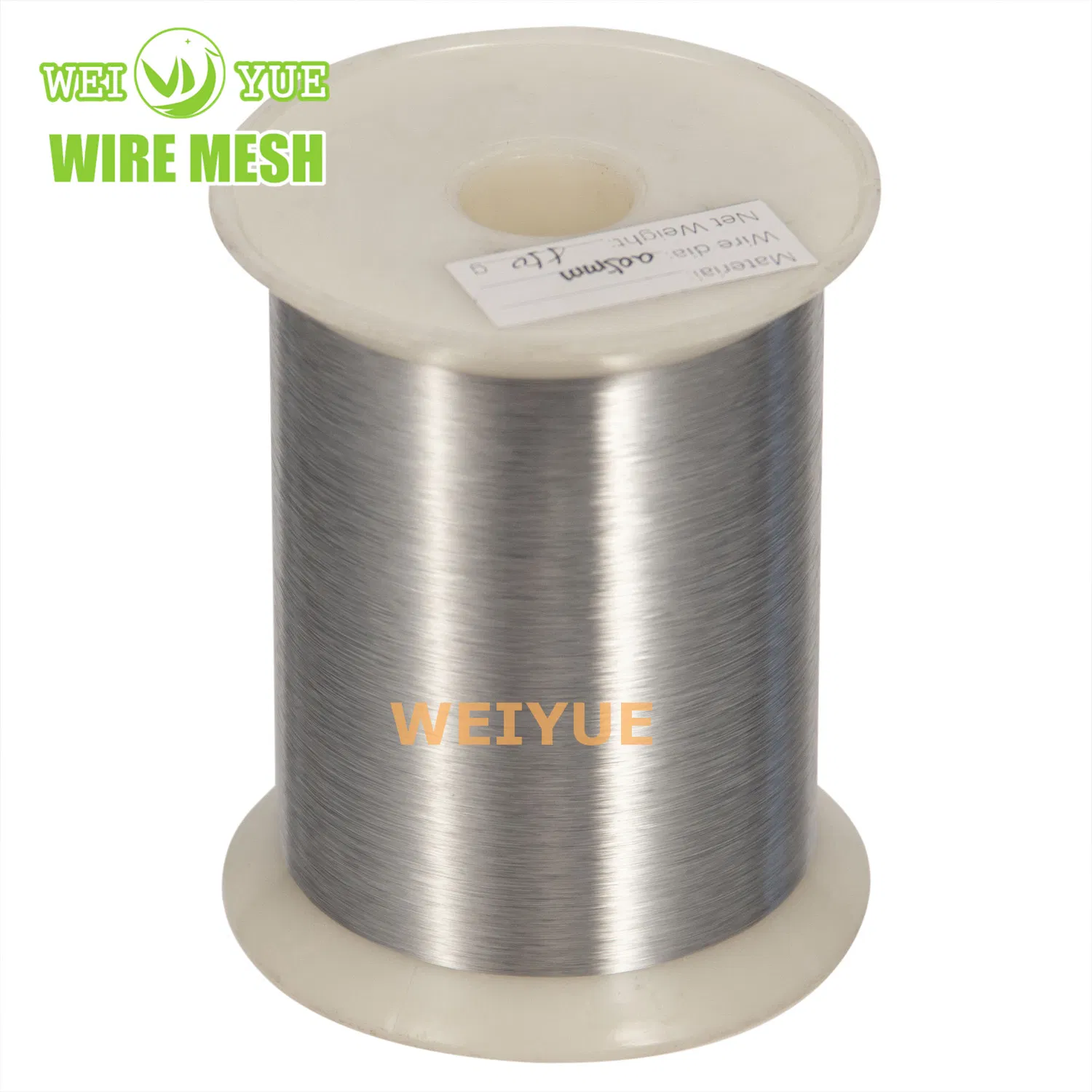

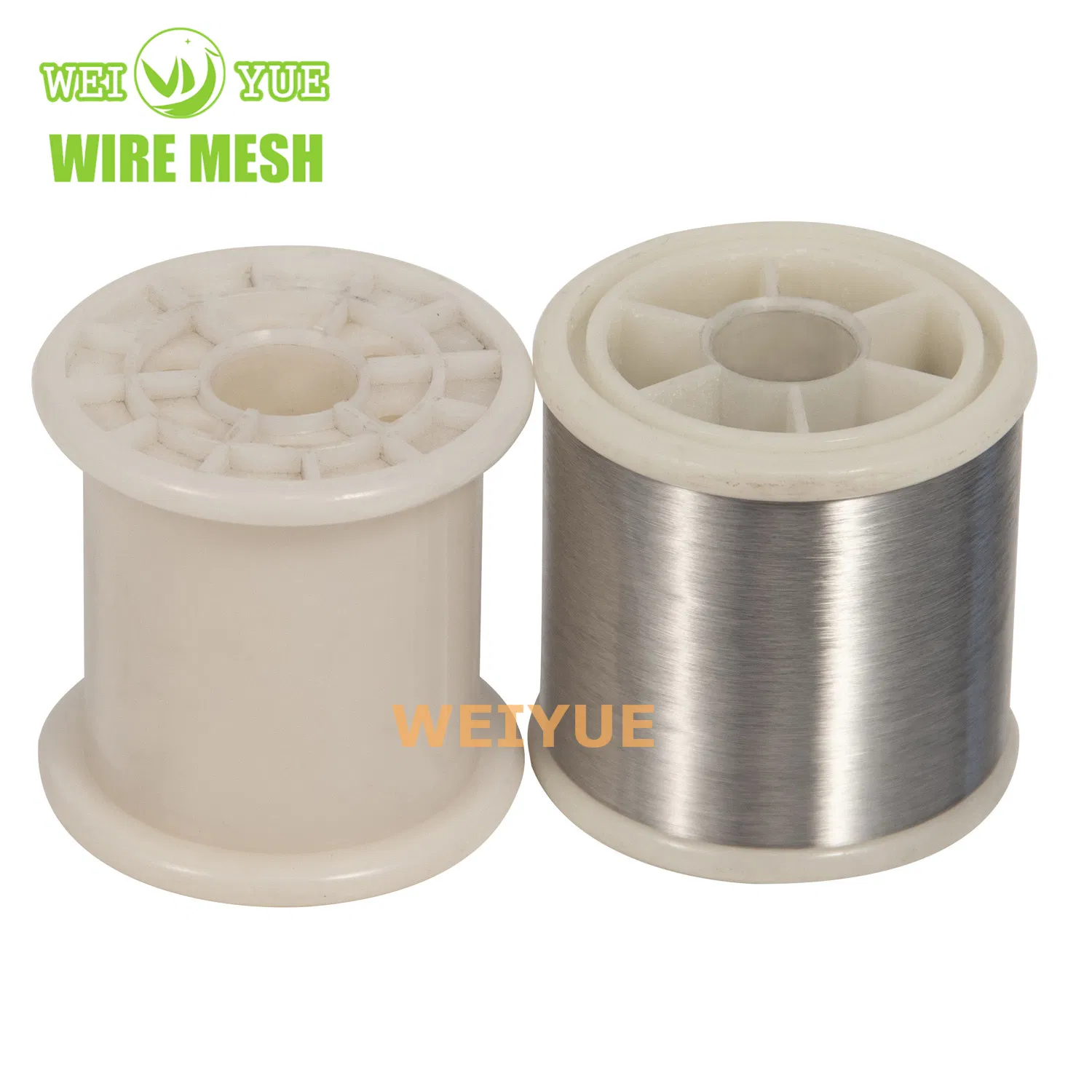

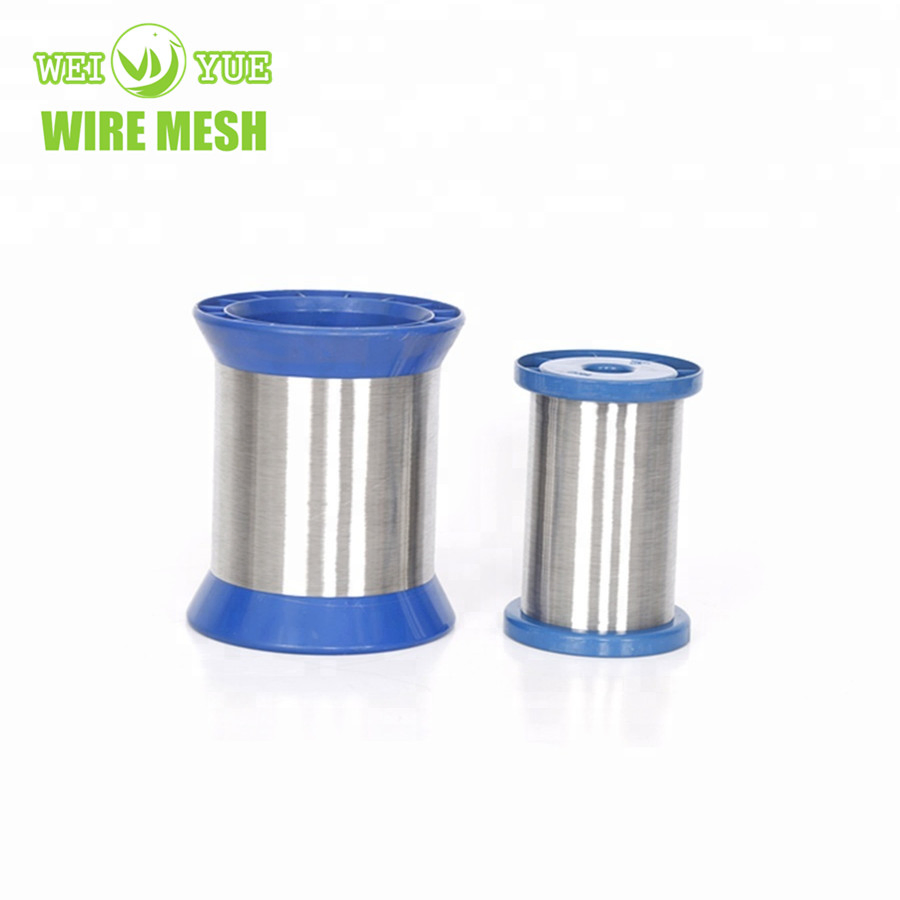

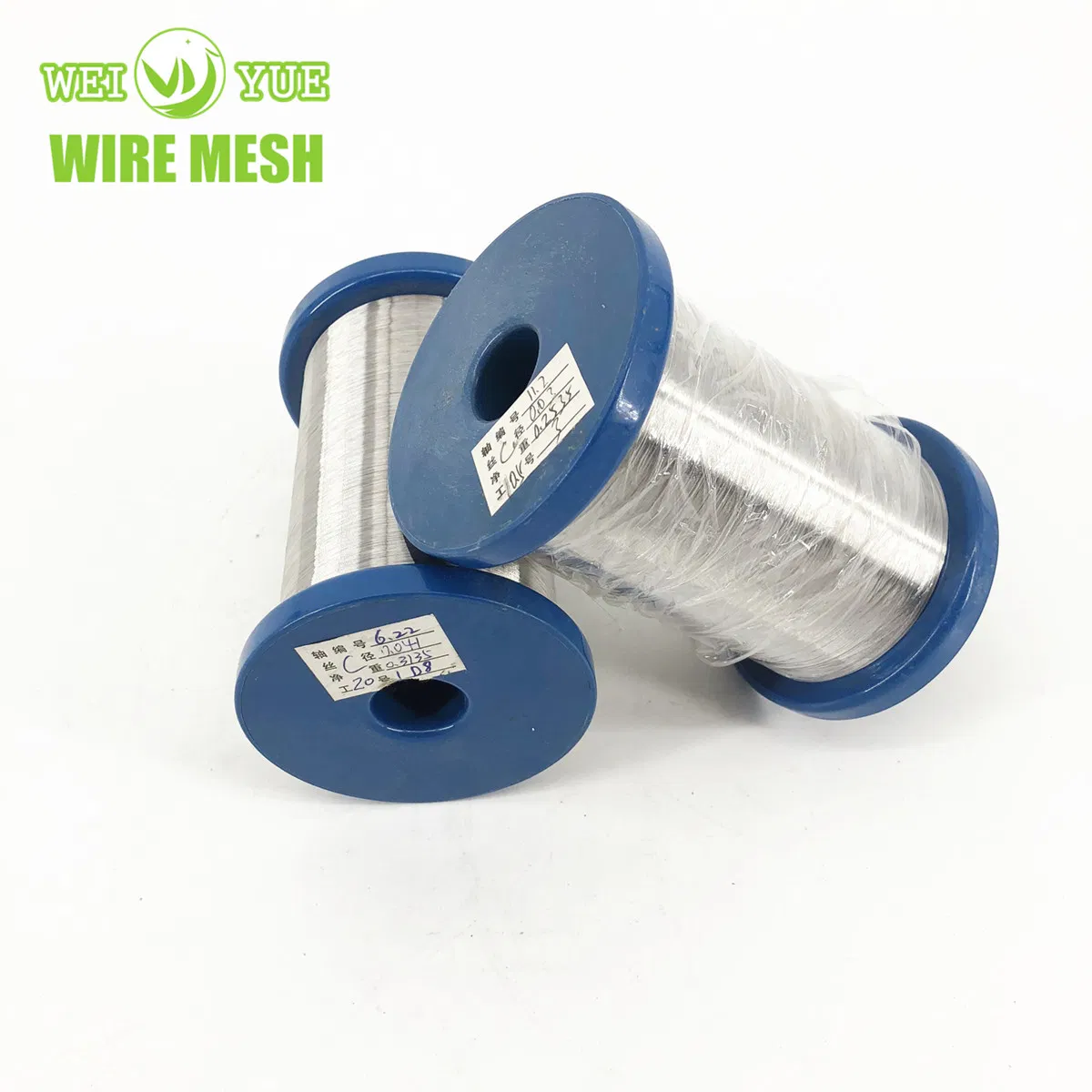

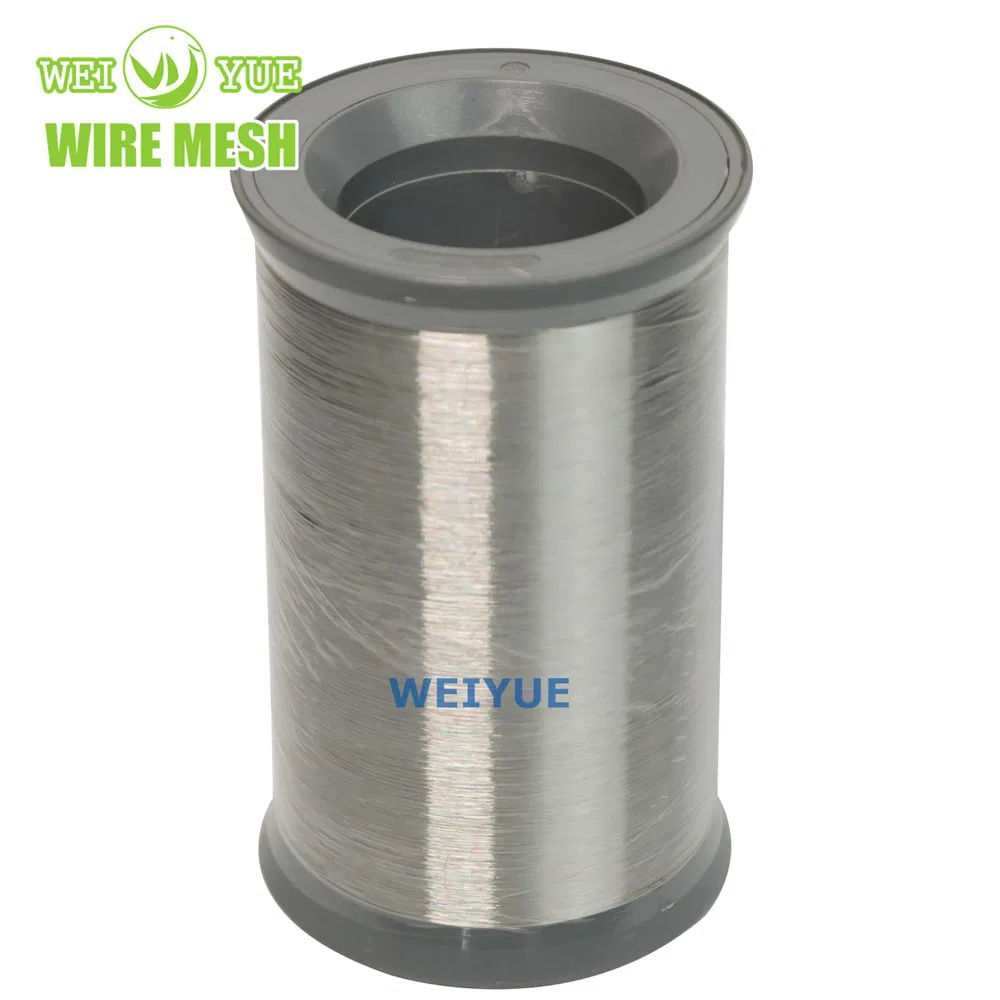

Precision micro stainless steel wire / yarn for high-performance applications including cut-resistant fabrics and industrial weaving.
Our facility has the ability to manufacture wire in various applications and achieve specific mechanical properties to meet project requirements. Available grades include 304, 304L, 316, and 316L. The surface finish can be bright or matt, providing high resistance to corrosion.
| Product Name | Specifications |
|---|---|
| Name | Stainless steel wire, Metallic yarn, Cut Resistant Yarn, Stainless Steel Filament |

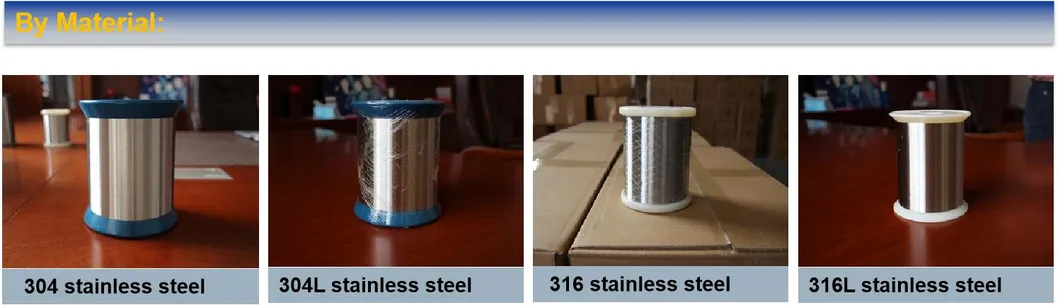

| Grade | 304, 304L, 316, 316L, etc. |
| Diameter | 0.018mm - 0.05mm |
| Condition | Soft wire, semi-soft wire, hard wire |
| Surface | Electrolysis bright, bright, matt |
| Application | Textile, Conveyors, Jewelry, Kitchen tools, Food machinery, Cut-resistant gloves |

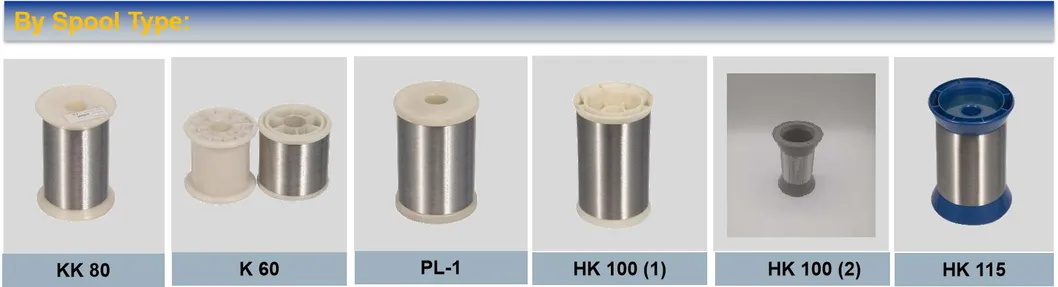

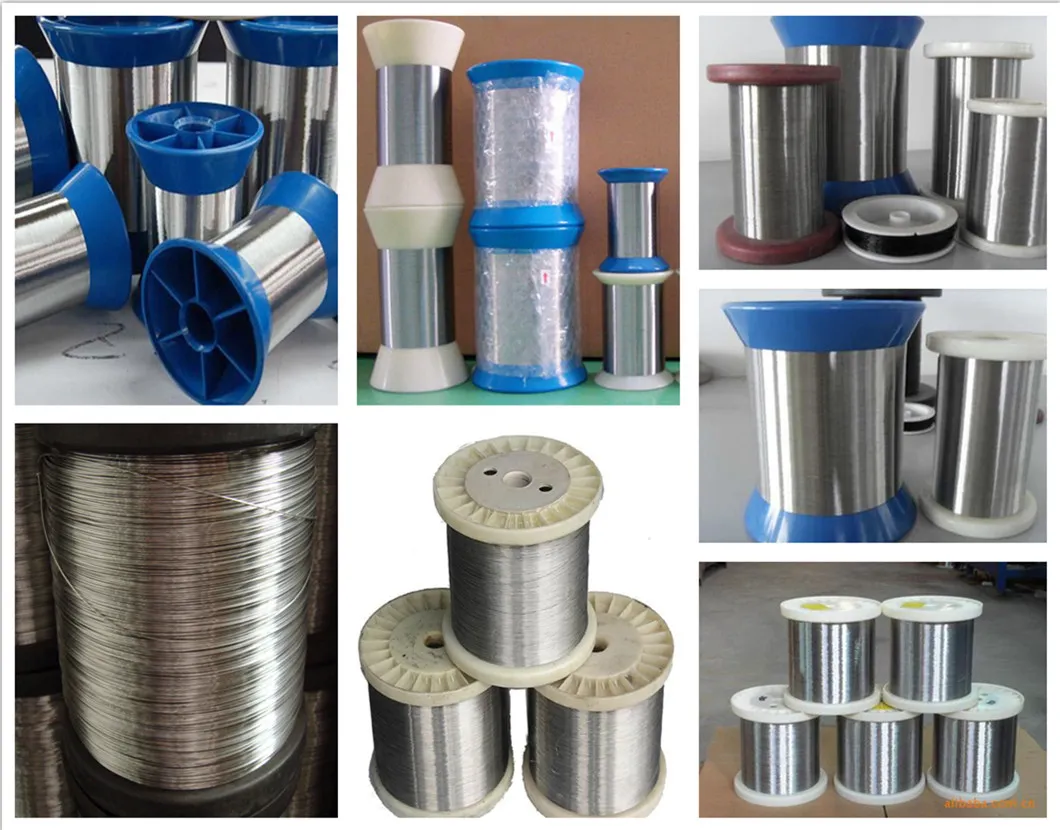

| Model | HK100 | HK115 | K90*100 | PL-1 | KK80 |
|---|---|---|---|---|---|
| D1 (mm) | 100 | 115 | 90 | 80 | 80 |
| D2 (mm) | 74 | 88 | 60 | 60 | 53 |
| L1 (mm) | 160 | 140 | 120 | 120 | 100 |
| Weight (g) | 274 | 280 | 100 | 76 | 82 |
| Material | Wire Dia.(mm) | Strength(mpa) | EL(%) | AWG | Tolerance(mm) |
|---|---|---|---|---|---|
| 316L | 0.035 | 570-800 | ≥22 | AWG 47 | +0.002 / -0.001 |
| 316L | 0.04 | 550-800 | ≥23 | AWG 46 | +0.002 / -0.001 |
| 316L | 0.05 | 680-850 | ≥24 | AWG 44 | ±0.002 |
