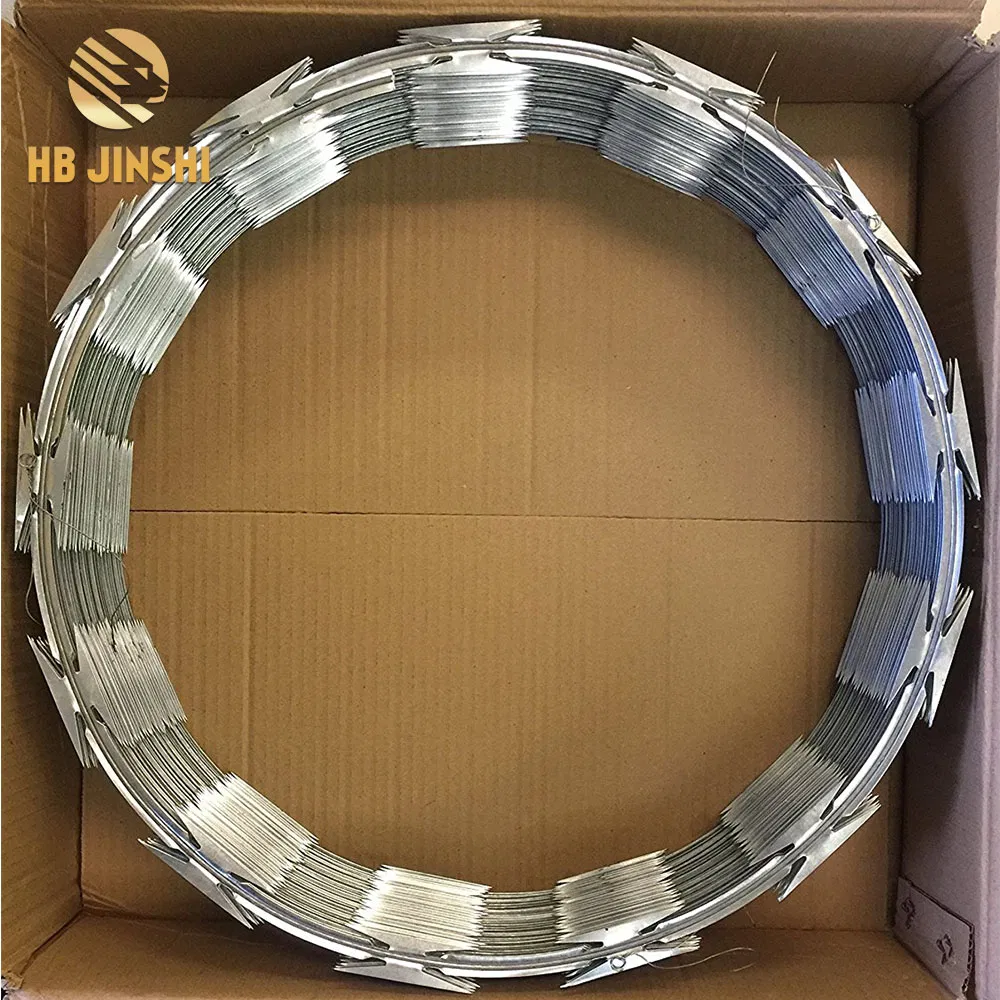

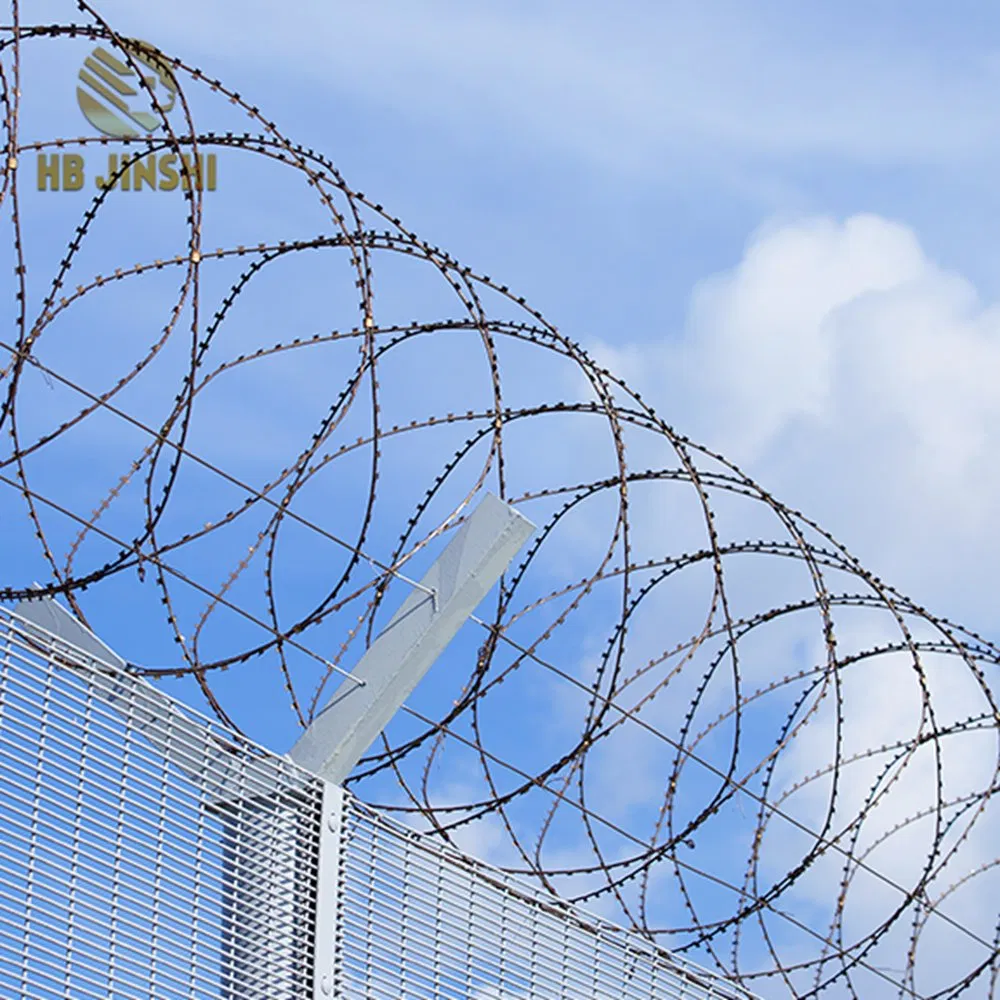

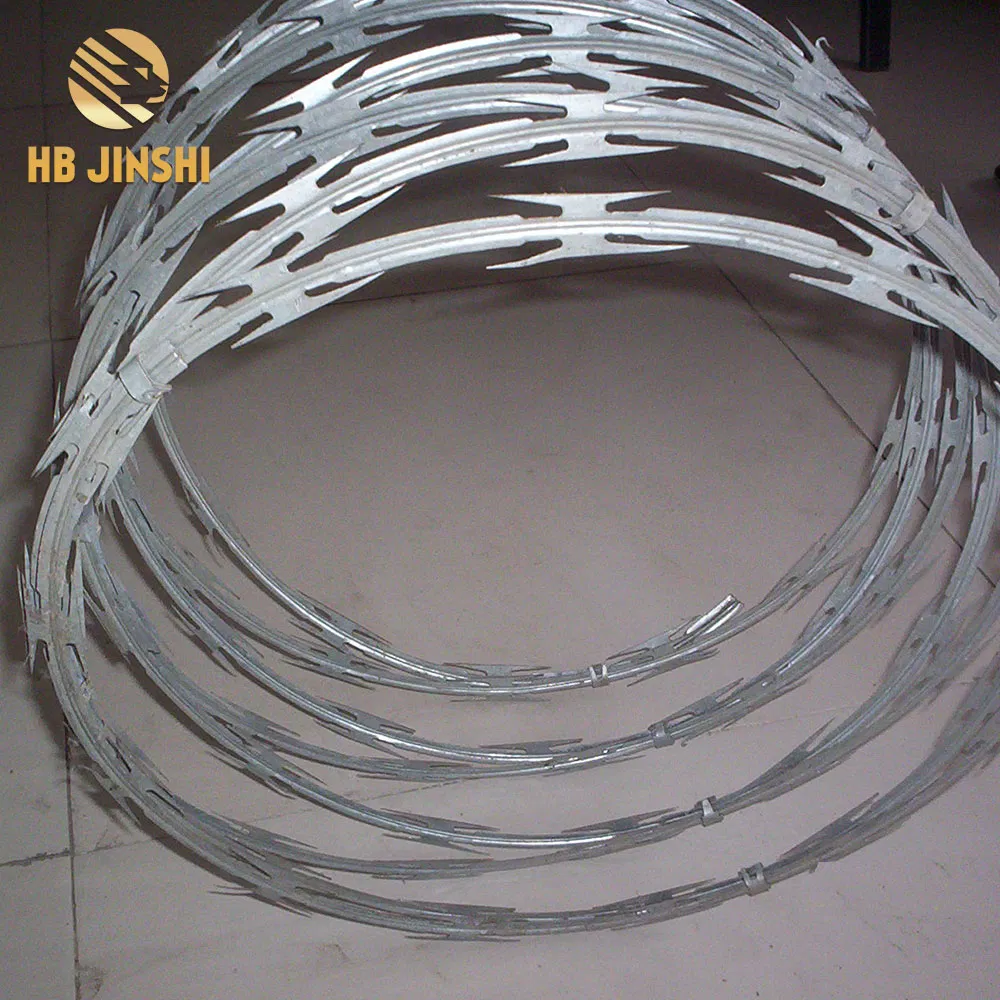

BTO-22 Hot Dipped Galvanized Concertina Razor Wire Fence

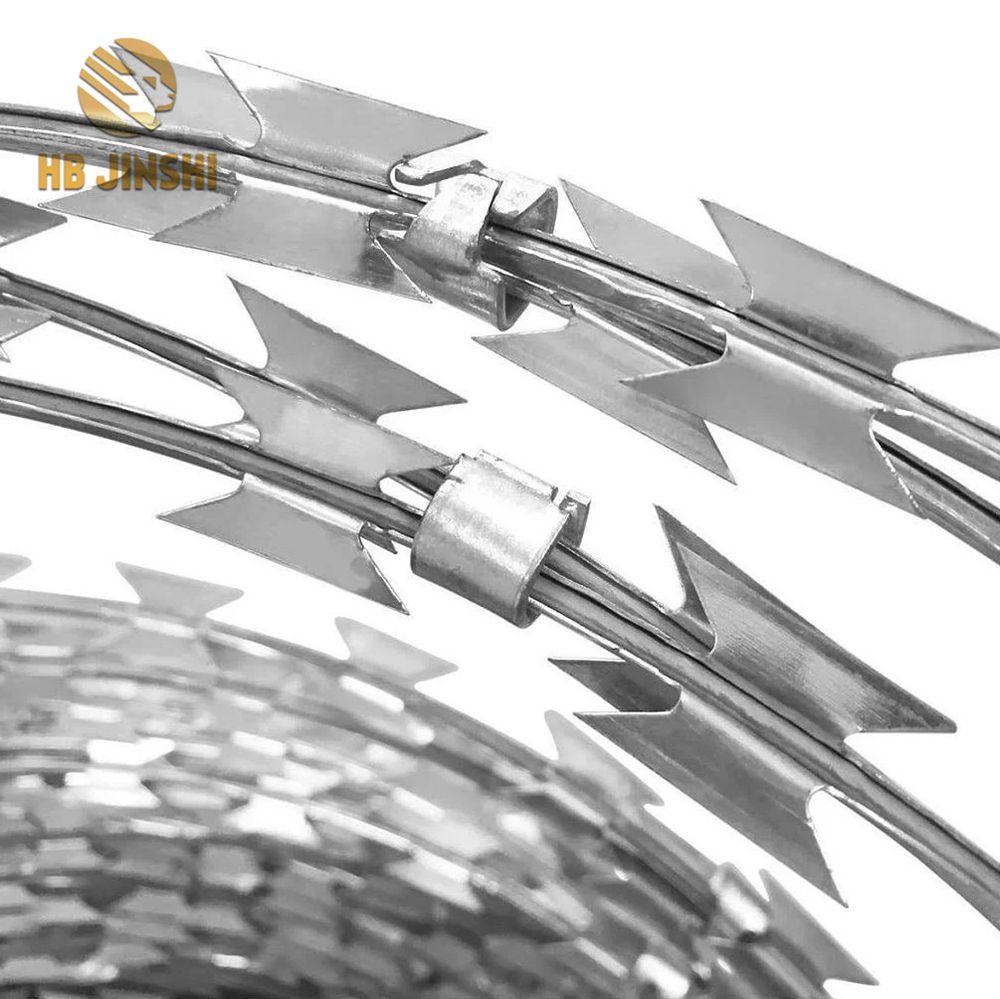

Razor Barbed Wire is also named concertina wire, razor barbed wire, fencing wire, or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
I. Razor Wire Materials:

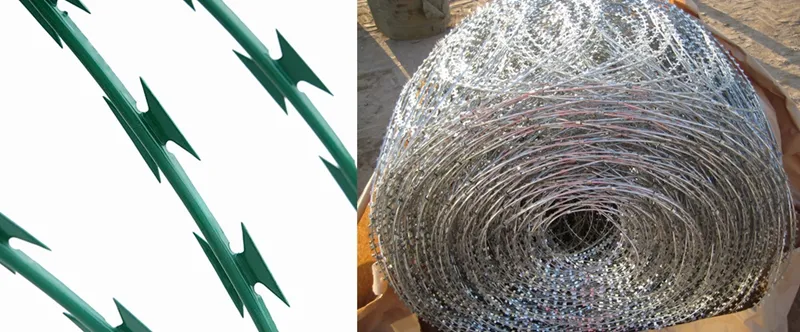

II. Surface Treatment:
Electro galvanized, hot dipped galvanized or PVC coated.
III. Technical Specifications:
| Reference Number | Thickness (mm) | Wire Dia (mm) | Barb Length | Barb Width | Barb Space |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 46±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 46±1 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100± |

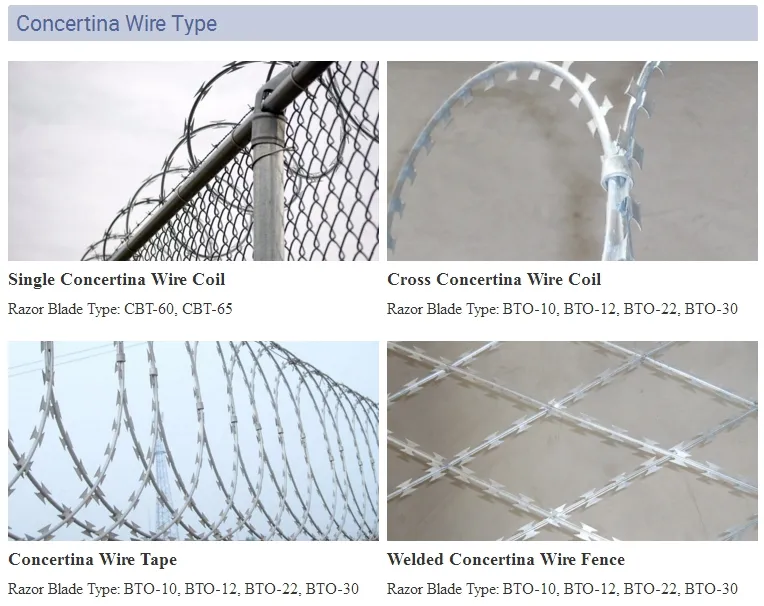

| Outside Diameter | No. of Loops | Standard Length | Type | Notes |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type |
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type |

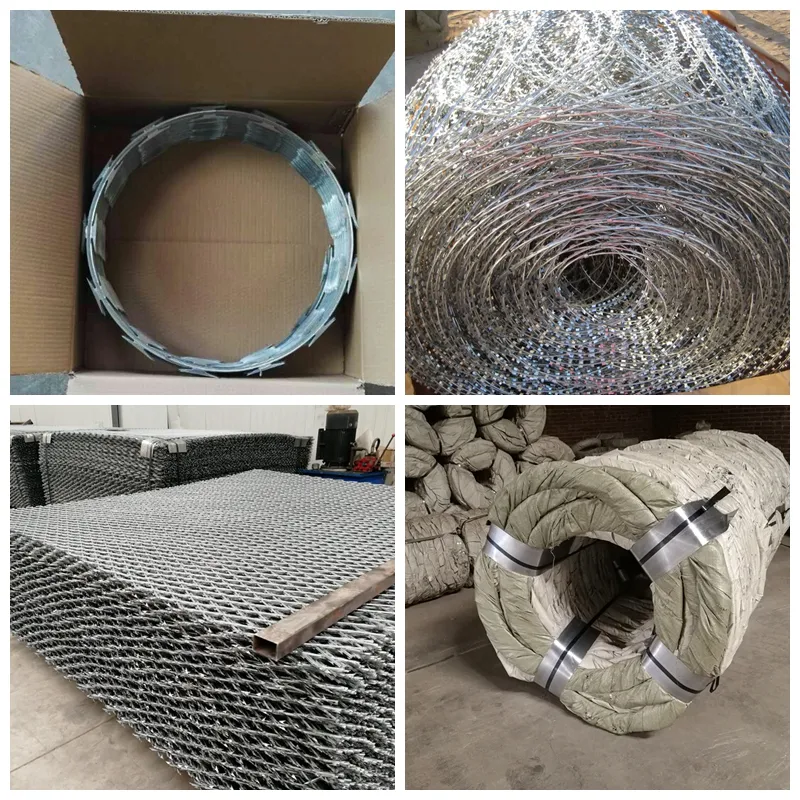

IV. Razor Wire Packing Details:
