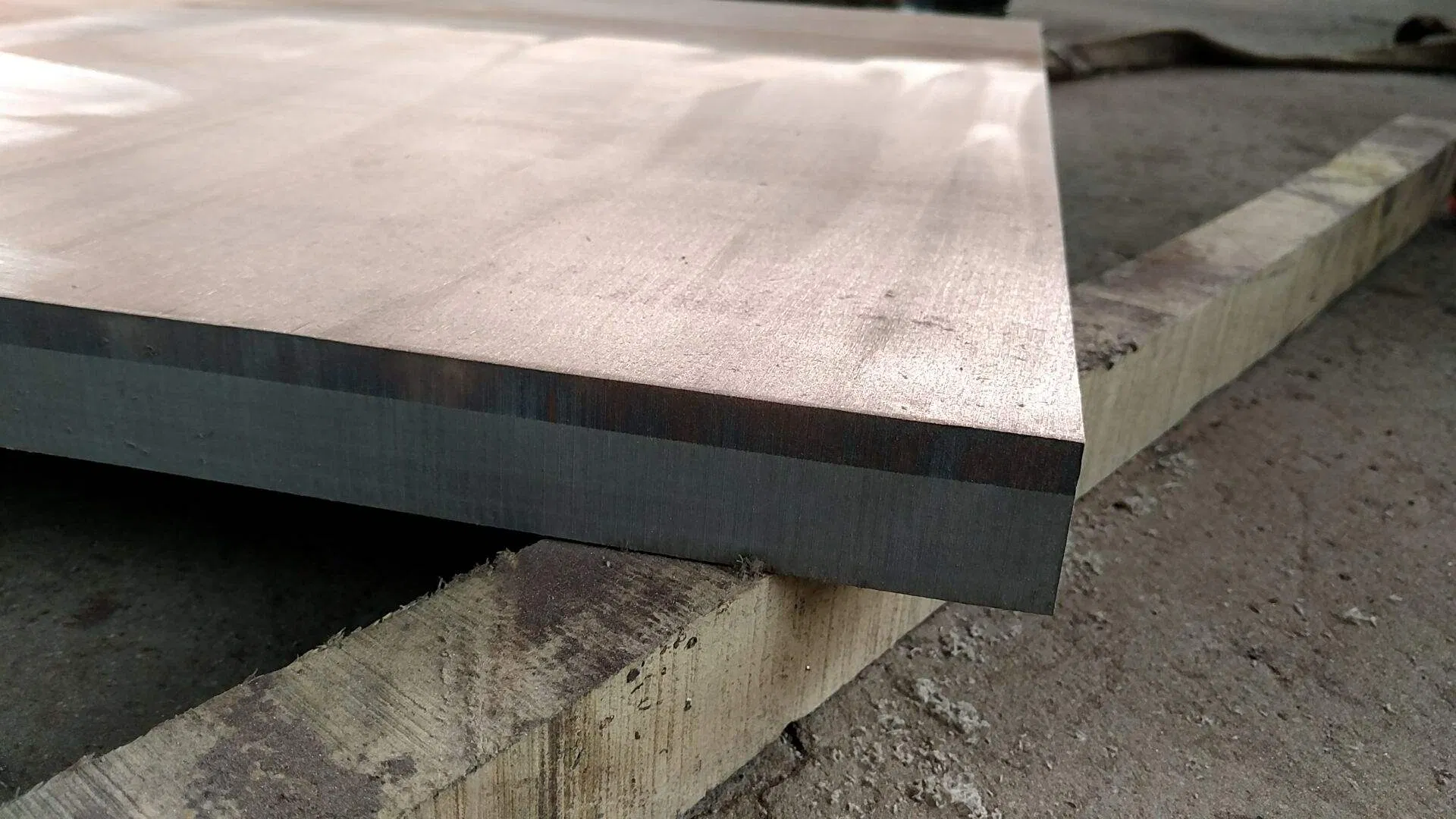

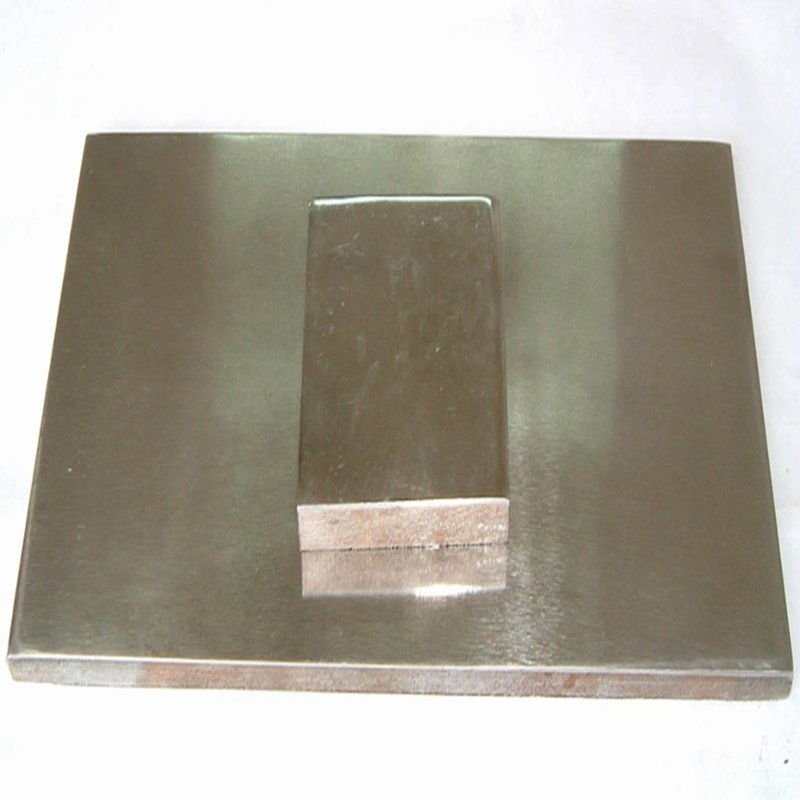

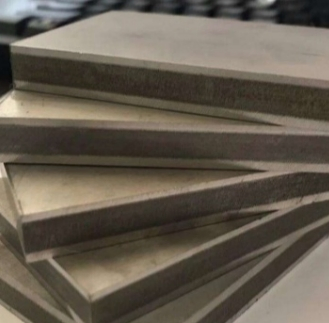

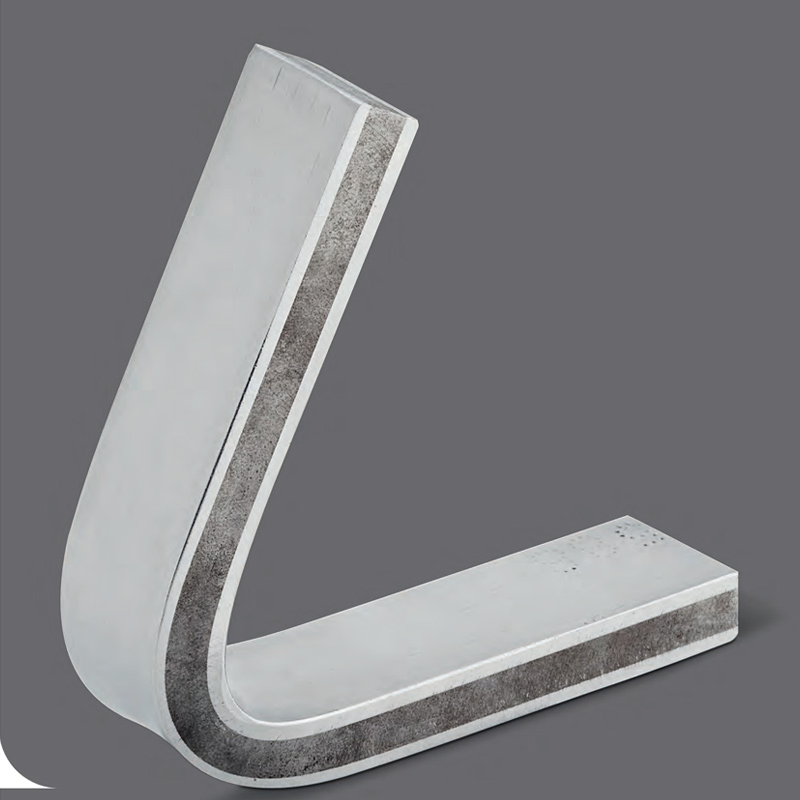

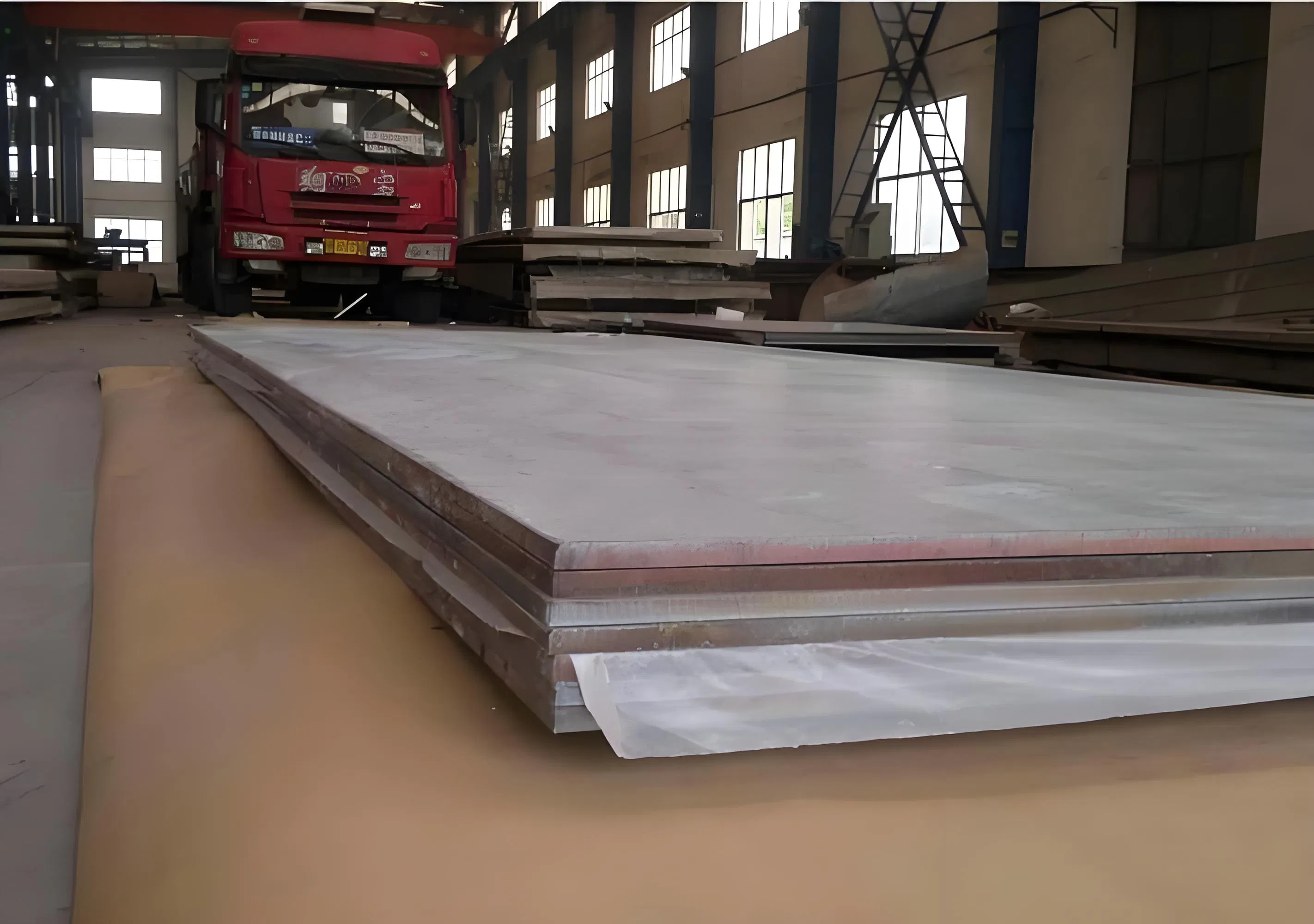

Stainless Steel Aluminum Clad Plates 1060al + 316L 304 316ti Bimetal Clad Plates for Braising Pans Boilers Griddles

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info
Type
Steel Plate
Standard
ASTM, AISI, GB, JIS, BS
Certification
ISO
Surface Treatment
2b
Technique
Roll Clad/Explosive Clad
Application
Ship Plate, Boiler Plate
Special Use
High-strength Steel Plate, Wear Resistant Steel, Clad Plates
Stock
Stock Available
Production Capacity
50,000 Tons
Origin
China
Product Description
Clad Plates

Our company has been a leader in developing roll bonding and explosive bonding dissimilar metals. The advantage of clad materials is the end product combines the superior properties of each metal: Strength, Corrosion Resistance, Lightweight, Cost, Thermal and Electrical Conductivity. As a result, clad products produce a material superior to any of the individual metals taken alone.

Clad metals produced by our roll bond technology or explosive bond combine two or more metals into a single sheet or plate that can be cut, welded or formed into a finished part ranging from chemical processing chambers and pressure vessels to small applications and clad pipe. We specialize in cladding stainless steel or nickel alloys to carbon steel as well as triple layer clad plates bonding stainless steel to an aluminum core.

Specification Item Details
Base Metal Thickness 2.0-60mm
Cladding Metal Thickness 0.5-20.0mm
Width Max 4500mm
Length Max 15000mm
Base Metal Kinds Aluminum coil 1060A/1050Al, carbon steel Q235B, low alloy steel, container plate, bridge steel, shipbuilding steel, weathering steel, etc.
Cladding Metal Kinds Stainless steel (304/316L/201/316Ti, etc.)
MOQ 1 MT
Type Base Materials Cladding Materials Common Sizes Technique
Stainless Steel Clad Plate Carbon Steel Plate: ASTM A36, A515, A516, A387 Stainless Steel: 304, 304L, 316, 316L, 316Ti, 317L, 310S, 321, 254SMO, Duplex S31803 Width: 1000-4000mm
Length: < 13000mm
Clad: 1-20mm
Base: 2-200mm
Hot Rolled / Explosive Cladding
Nickel Clad Plate Carbon Steel Plate Hastelloy C276, Inconel 600/625, Incoloy 800/825, Monel 400 Customizable TIG/MIG/SAW
Titanium Composite Stainless Steel Gr1, Gr2, Gr3, Gr7, Gr12 etc. Customizable Explosive Bonding

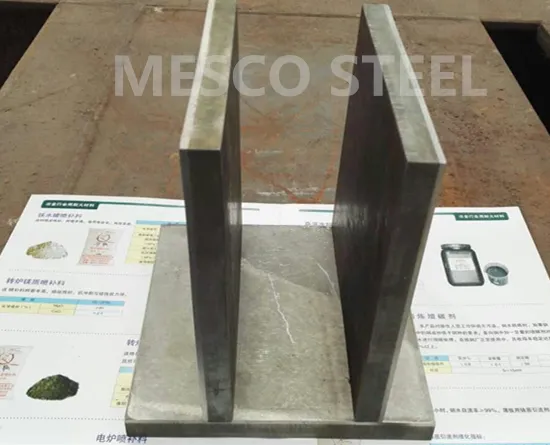

Clad Plates Detail 1

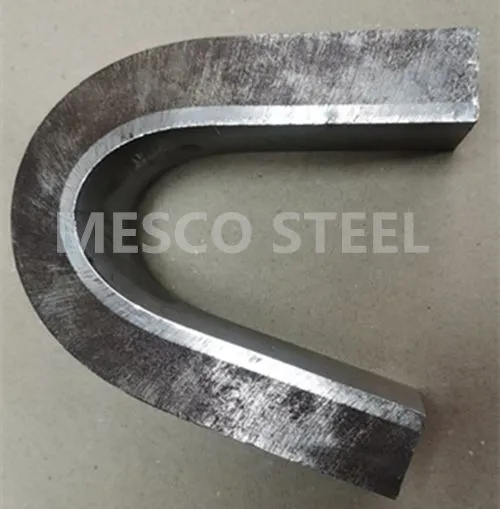

Clad Plates Detail 2
Test & Quality Assurance
🧪
Through various inspection tests, the shear strength of the composite panels produced by our company's technology can reach an average of more than 300Mpa, which is much higher than the national standard (210Mpa).

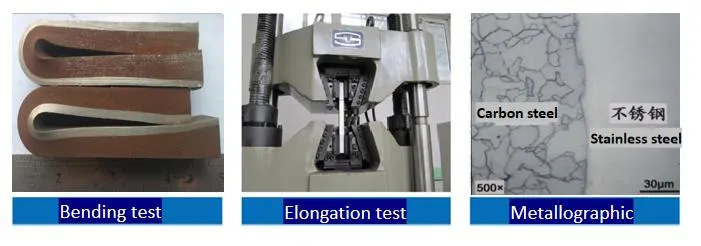

Test Result
🛡️
Quality Assurance: All our products have undergone multiple inspections to ensure premium quality and long-term reliability for our partners.

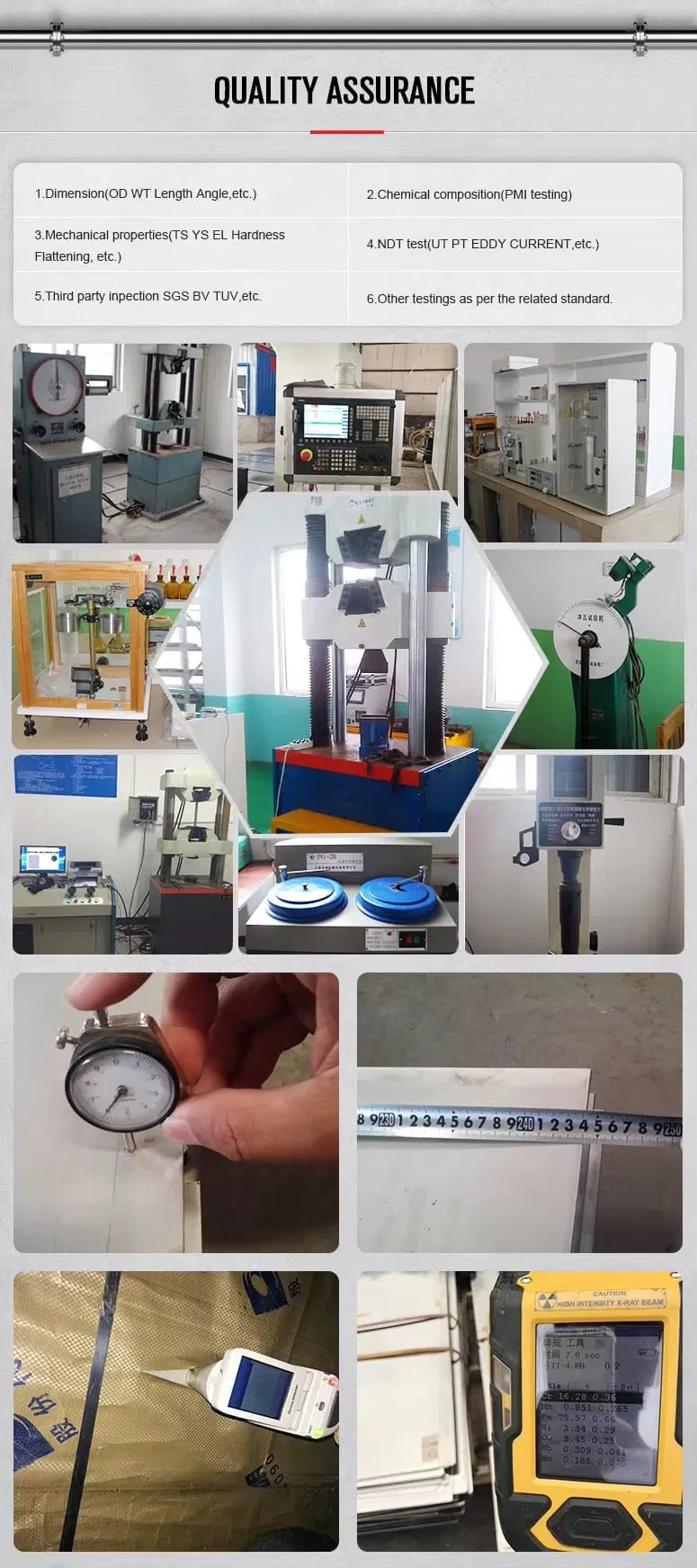

Quality Inspection
Large Inventory
🏗️

We maintain a large quantity of regular specifications Clad plates in stock and can guarantee delivery within 3 days!

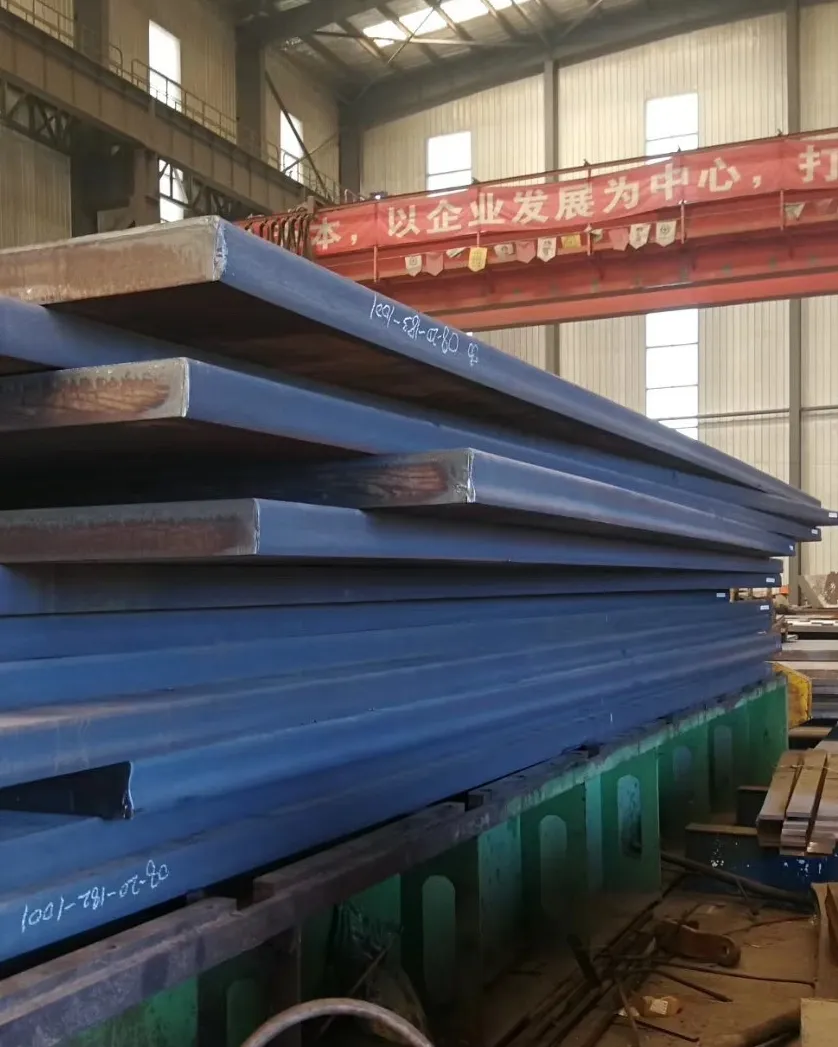

Stock 1

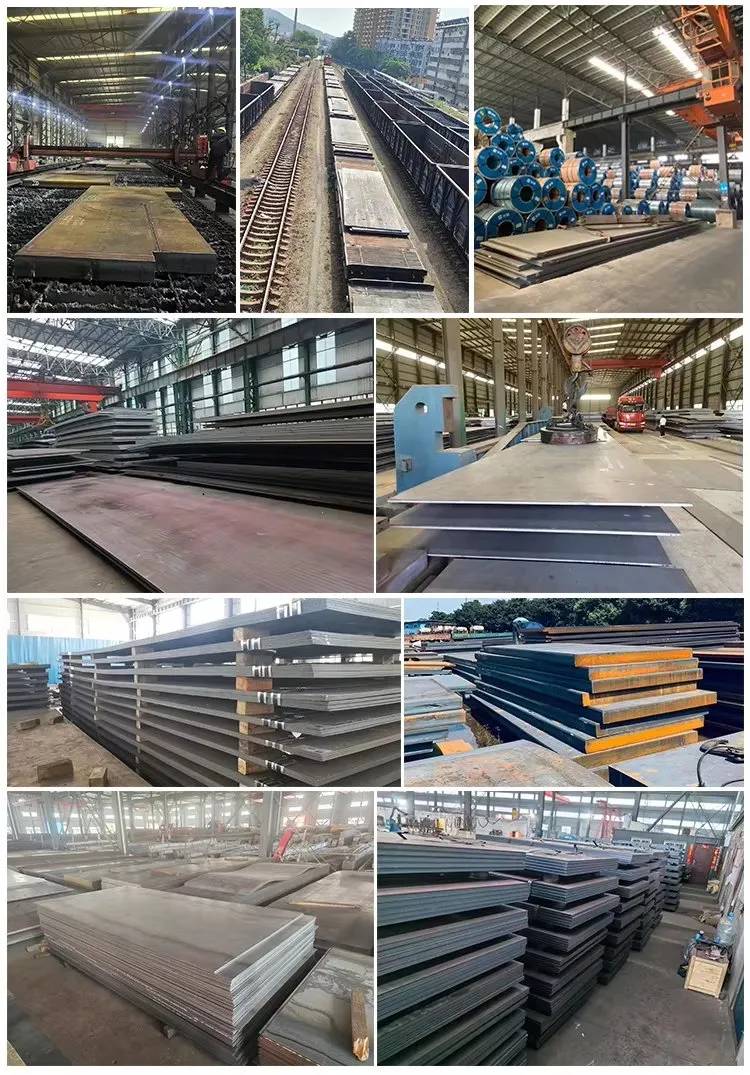

Stock 2
Factory Stock
Applications

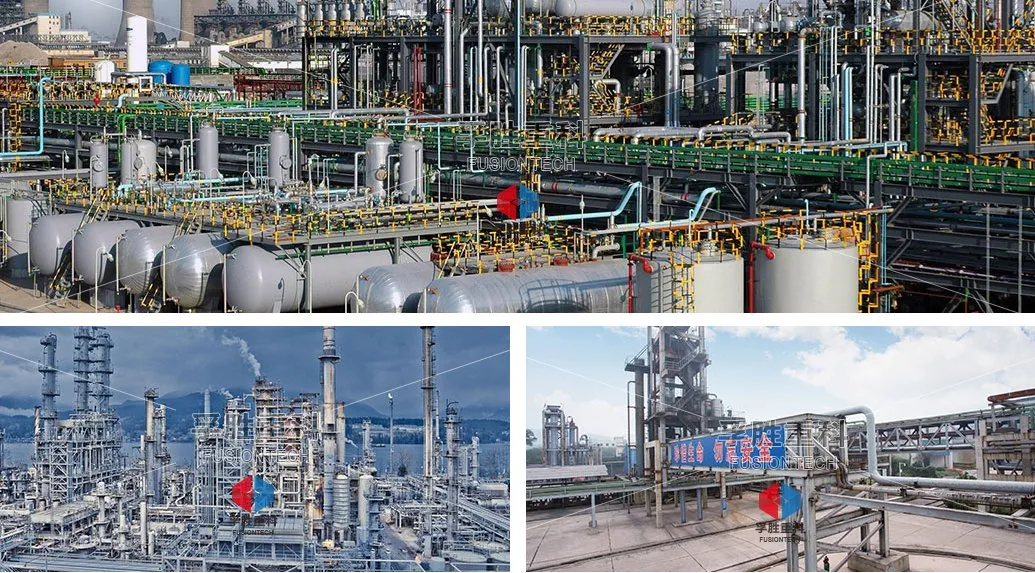

Chemical Industry

Chemical Industry

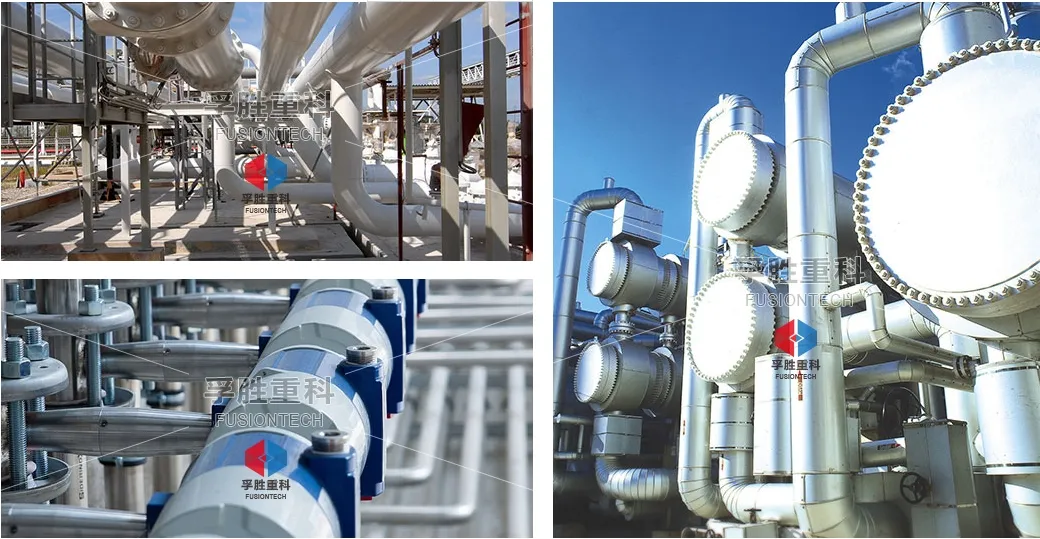

Environmental Pipeline

Environmental Pipeline

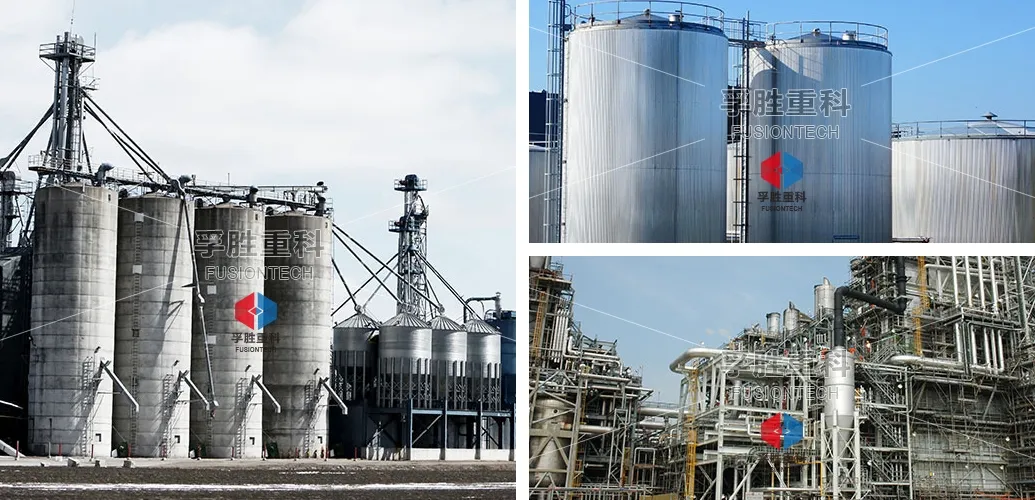

Storage Tank

Storage Tank

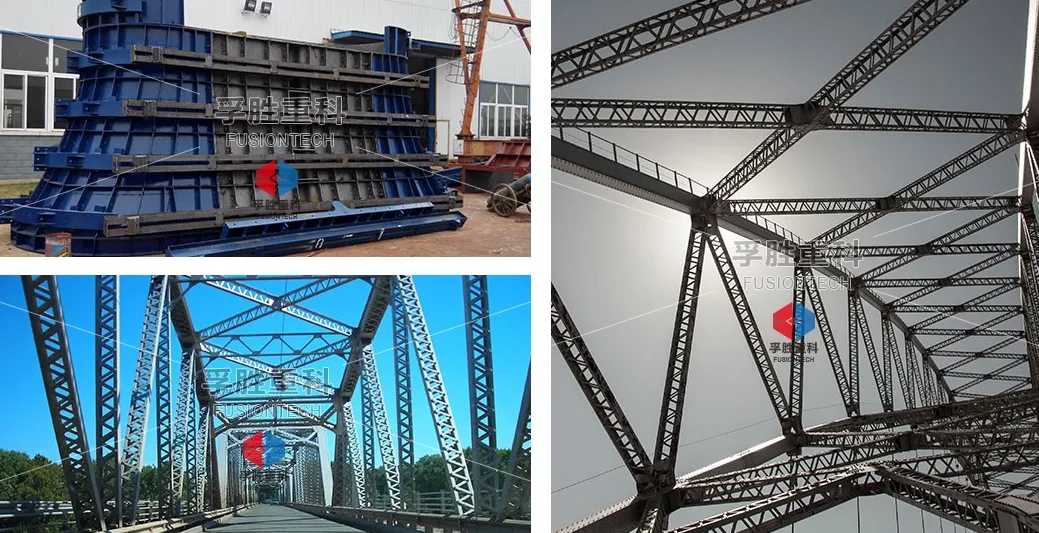

Bridge Construction

Bridge Construction

Team and Customers
Team 1
Customer Visit
Global Support
Frequently Asked Questions
Q1: What are the main advantages of using bimetal clad plates?
Clad plates combine the strengths of different metals, such as the high corrosion resistance of stainless steel or nickel with the high strength and lower cost of carbon steel, providing a high-performance, cost-effective solution.
Q2: What cladding techniques do you use?
We primarily use Roll Bonding and Explosive Bonding technologies. Roll bonding is ideal for mass production, while explosive bonding is used for joining metals that cannot be bonded by conventional rolling.
Q3: How strong is the bond between the two metal layers?
Our technical process ensures a bond shear strength exceeding 300Mpa, which is significantly higher than the standard requirement of 210Mpa, ensuring the layers do not separate under pressure or temperature changes.
Q4: Which industries typically use these clad materials?
Our products are widely used in the chemical processing industry, oil and gas, pressure vessel manufacturing, shipbuilding, bridge construction, and food processing equipment.
Q5: What is the lead time for standard stock items?
For regular specifications held in our large inventory, we can guarantee delivery within 3 days. Custom sizes and specifications will have a lead time based on the production schedule.
Q6: Can you produce triple-layer clad plates?
Yes, we specialize in advanced cladding including triple-layer plates, such as bonding stainless steel to an aluminum core for specialized thermal and mechanical applications.
