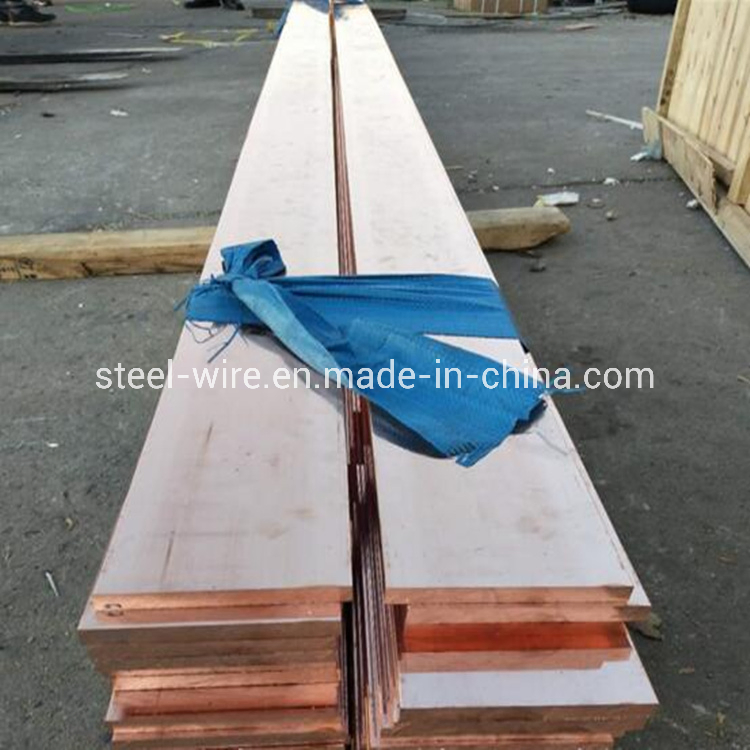

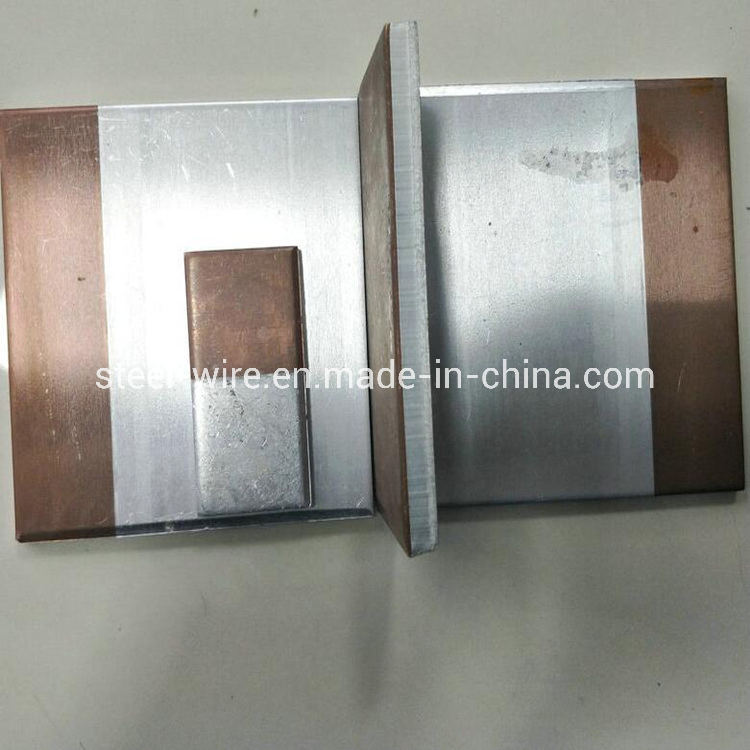

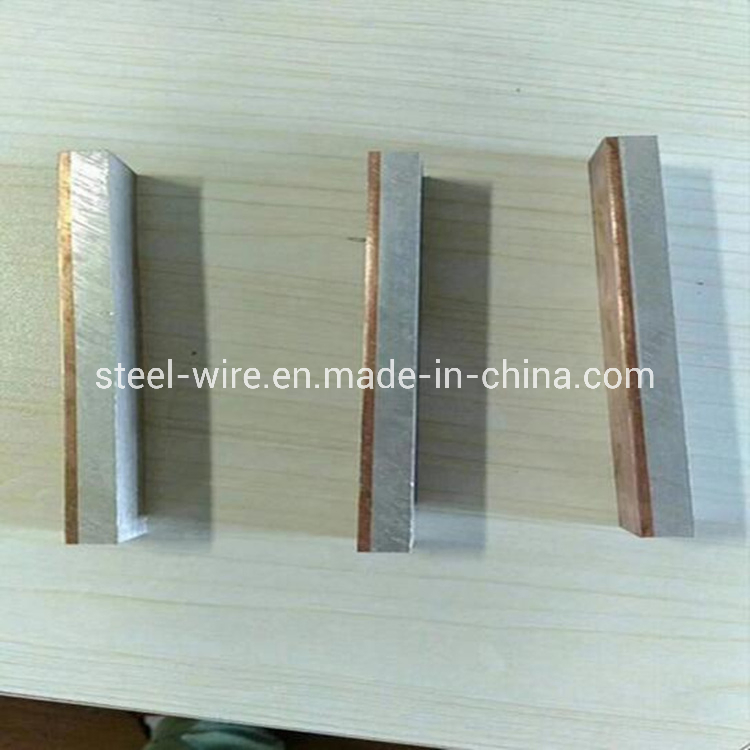

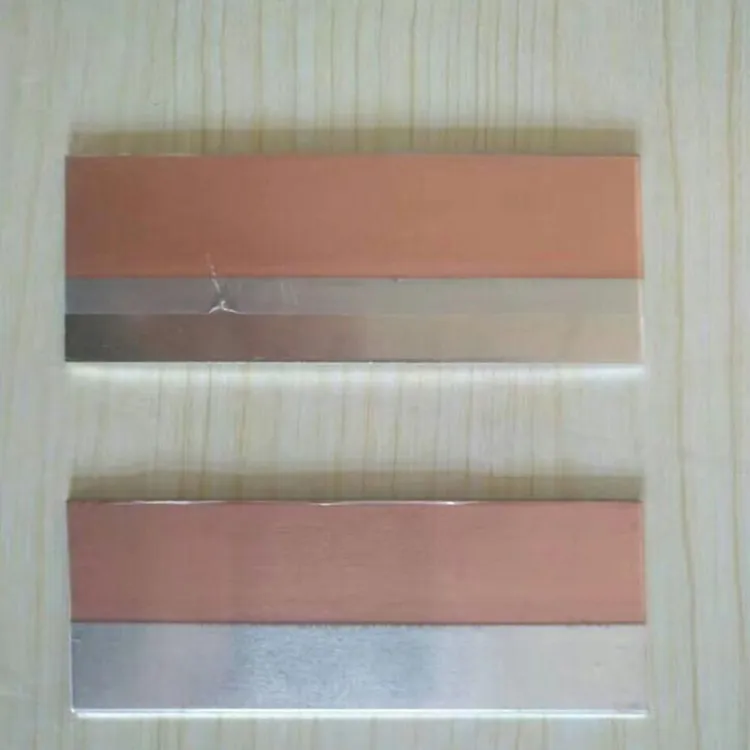

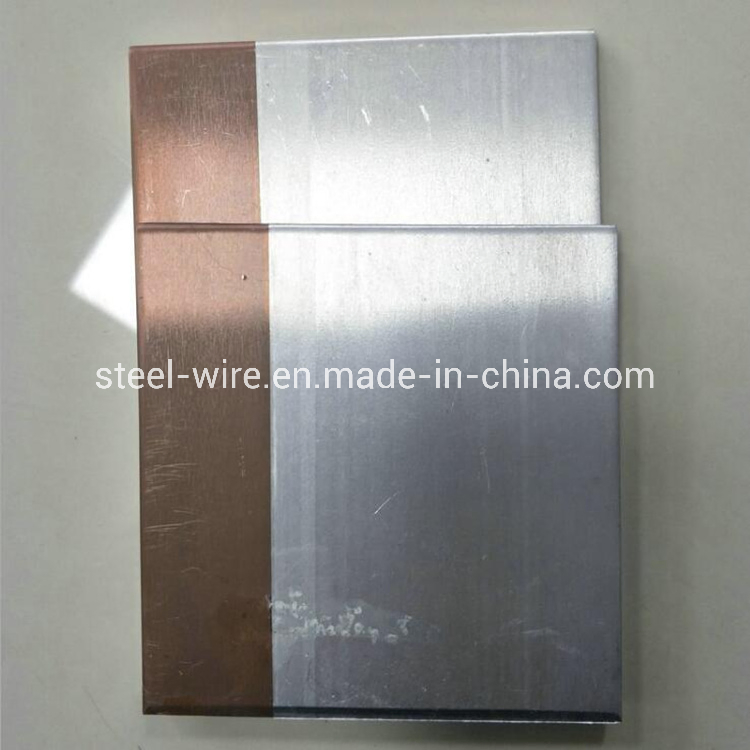

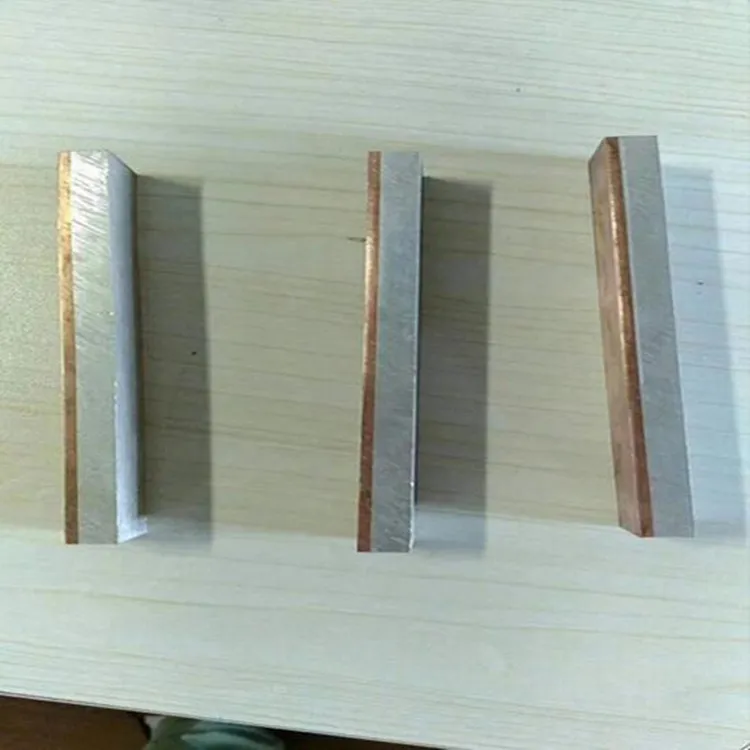

Stainless Steel Clad Plate Nickel Titanium Copper Clad Sheet
| Item | Stainless steel clad plate nickel titanium copper clad sheet |
|---|---|
| Material | T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C65500, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, C72200, etc |
| Hardness | 1/16 hard, 1/8 hard, 3/8 hard, 1/4 hard, 1/2 hard, full hard, soft, etc |
| Status | M/Y4/Y2/Y/T |
| Sample | Sample is free and available |
| Total thickness (mm) | Copper thickness (mm) | Width (mm) | Length (mm) |
|---|---|---|---|
| 0.6 | 2×0.02 | Less than 600 | 300-3000 |
| 1.0 | 2×0.05 | ||
| 2.0 | 2×0.10 | ||
| 3.0 | 2×0.15 |
| Material | Composition (%) | Density (g/cm³) | Conductivity (m/Ω•mm²) | Tensile Strength (Mpa) | Elongation (%) | Composite Strength |
|---|---|---|---|---|---|---|

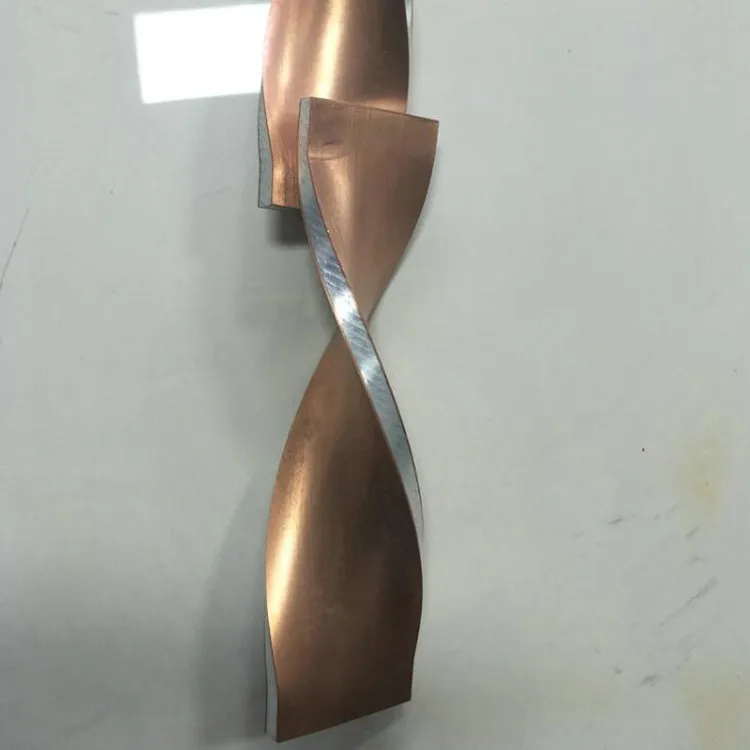

| Copper clad steel | 5/90/5 | 7.9 | 12.7 | ≥265 (Annealing) | ≥37 (Annealed) | Without stratification after repeated bending test |
| Copper clad steel | 10/80/10 | 8.0 | 17.8 | ≥250 (Annealing) | ≥40 (Annealed) | |
| Brass clad steel | 5/90/5 | 7.9 | 8.5 | ≥270 (Annealing) | ≥35 (Annealed) |
